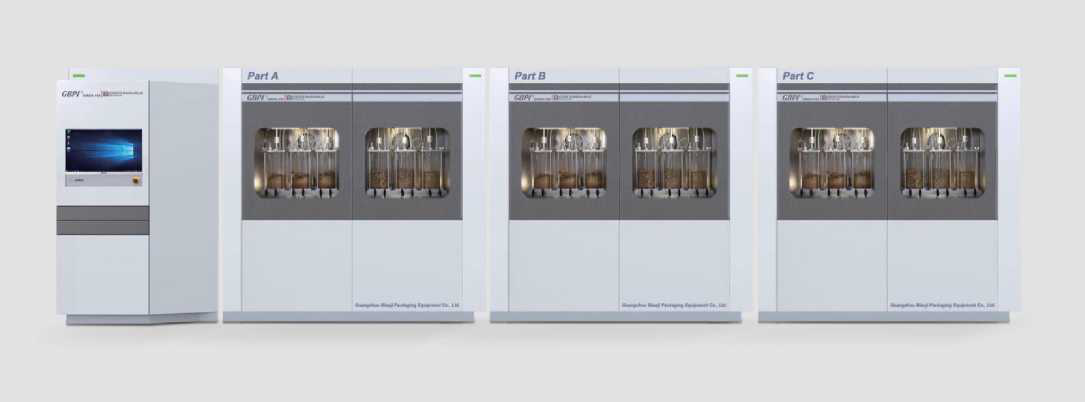

GBDA-180 Intelligent Compost Degradation Tester


GBDA-180 Intelligent Compost Degradation Tester is the world's leading biodegradation analyzer tester based on the composting method to detect the corresponding substance and the maximum biodegradation rate under the condition of oxygen supply. It is also a tester for inspection and testing institutions and scientific research universities. One of the necessary equipment for research, analysis and testing of degradable materials. Let us work together to protect the beautiful earth home.




  • Brand:

    GBPI
  • Item NO.:

    GBDA-180
  • Payment:

    T/T, L/C
  • Product Origin:

    CHINA
  • Shipping Port:

    SHENZHEN
  • Lead Time:

    20days
Inquiry now Download
Product Detail

Intelligent Compost Degradation Tester  GBDA-180








Standard:

GB/T19277.1-2011( ISO14855-1:2005,IDT)、ASTM D 5338、ASTM D 6400、JIS K 6953、DIN V54900

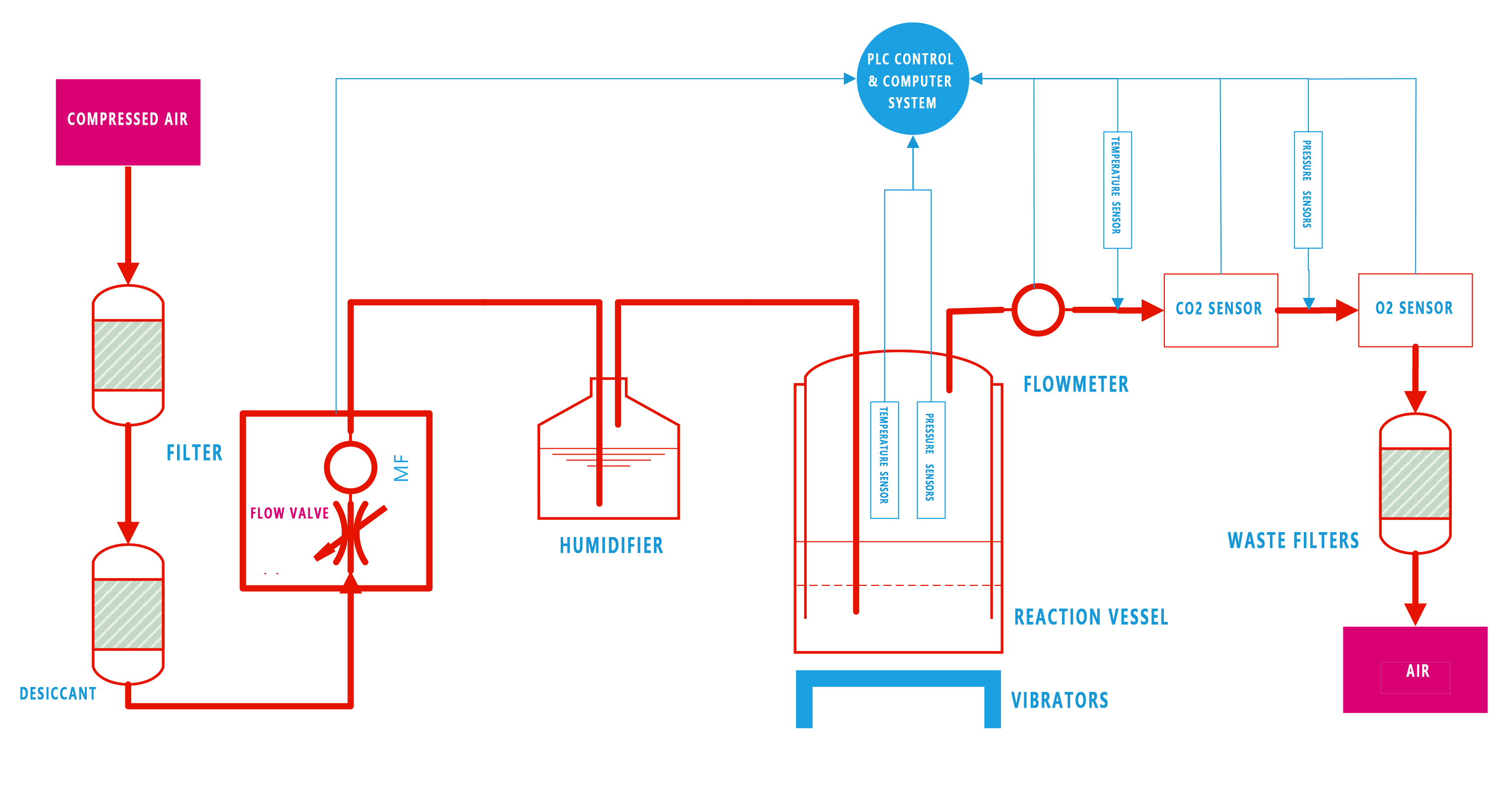

Testing Principle:

The equipment adopts the composting method. The sample is subjected to controlled composting
conditions, and the final aerobic biological decomposition capacity and the degree of disintegration are determined by measuring the amount of carbon dioxide emitted. This method achieves the best biodegradation rate by adjusting the temperature, humidity, and oxygen concentration in the compost container. The equipment consists of 18 reactors for simultaneous or independent testing. The equipment provides a high-stability constant temperature control circulation system, temperature and humidity measurement and control system, and high-precision flow control system to ensure that each reactor is set at any temperature, humidity, vibration and other conditions Stable experiments can be carried out under any conditions to speed up the screening of detection conditions and optimization of reaction conditions. The 18 reactors respectively detect carbon dioxide content (and can be equipped with multiple types of sensors to expand more standard applications). The independent PLC control system captures and analyzes data in real time. The experimental results can be uploaded to the computer to realize the whole experiment tracking. Medical grade three-level security authority system, data can be traced to the source to ensure authenticity and effectiveness.






Item

Technical Parameter

Temperature Control Range

Room Temperature 80°C

Temperature Control Accuracy

±0.5°C

Flow Control Range

0.01~10L/min

Flow control rate

±1.0%FS

Flow Detection Range

0.012L/min

Flow Detection Accuracy

±1.0%FS

Carbon Dioxide Detection Range

010000ppm

Carbon Dioxide Detection Accuracy

±1%FS

Oxygen Detection Range

025%

Oxygen Detection Accuracy

±1%FS

Test Chambers

18 chambers

Pressure Detection Range

0~200KPa

Pressure Detection Range

±1%FS

Air Pressure

0.1 0.5Mpa

Air Connection

1/4 Inch Hose

Test Cavity Volume

3L

Dimensions

6950mm*1800mm*650mm

Weight

1500kg

Power

3000W

Power Supply

AC 220V, 50Hz
