Electronic Digital Tensile Tester Machine GBL-H

LC-1 Tensile Test Sample Cutter cuts samples of plastic film, paper and so on in preparation for other tests, such as tensile, peeling, tearing and heat sealing etc. It is compactly structured and easy to use. The edges of sample cut out are even and smooth.

GBL-L Electronic Digital Tensile Tester Machine apply to test the tensile strength, peeling strength, heat sealing strength and tearing strength of plastic film, composite film, tape, soft packaging material, rubber sheets, paper, non-woven fabrics and other packaging materials, widely used in industries of membrane, packaging, pharmaceuticals, food industries, inspection agency, research institute, college and so on.

GBH-2 multifunctional single-column electronic tensile tester for plastics, films, fibers, rubber sheets, composite materials, tapes, soft packaging materials, paper, non-woven fabrics, medicine package materials, syringes, bottlescovers, rubber plugs and other packaging materials are tested for mechanical properties to meet the needs of different users.

Product introduction GHH universal material testing machine is theGuangzhou international r&d team based on GB, JIS, ASTM, DIN and other standards and market demand to upgrade the mechanical properties of new testing machine, suitable for all kinds of metal, non-metallic materials tensile, stripping, heat sealing, tearing, piercing, compression, bending and shear test, and then calculate the material parameters such as fracture strength, elastic modulus, It can also be used in the medical industry of syringe piston sliding, body tightness test verification. GHH universal material testing machine has a flexible interface and control mode, can do stretching, peeling, and other tests, speed, thickness, clamping distance multi-parameter variable setting; The measuring accuracy can reach 0.5 level; The whole process is controlled by computer, open data structure; The core adopts imported parts, loaded with high-precision ball screw; Control measurement unit, can choose the built-in or external type, with perfect limit protection, overload protection, emergency stop and other safety protection functions. GHH universal material testing machine is suitable for plastic sheet, pipe, profile, plastic film and rubber, wire and cable, steel, glass fiber and other materials of all kinds of physical and mechanical properties test for material development, is the physical property test, teaching research, quality control and other indispensable testing equipment. Test principle Will be clamped specimen in tensile machine fixture between two chuck, two clip do relative movement, through strength sensor and the machine is located in the moving clamp head built-in displacement sensor, collected test force value change and displacement in theprocess of change, to calculate the sample drawing (tensile strength, elongation at break and the elastic modulus of performance indicators, etc. Standard JJG 139, ASTM D828,ASTM E4, ASTM D882,ASTM D1938,ASTM D3330,ASTM F904,JIS P8113 Specification Item Technical parameters Test range 0～3000 N（Multiple groups of sensors can be selected within 20000 N） Test measurement Within±0.5 %FS Test speed 0~500 mm/min（continuously variable speed） Speed precision Indicates within±1% of the value Displacement measurement accuracy Indicates within±0.5% of the value Effective test stroke 1000 mm Effective test stroke 1100% Effective test width 30 mm Force value resolution 0.001g Resolution of displacement 0.001 mm Size L×W×H：750 mm×500 mm×1800 mm Weight 150 kg Power 1000 W The power supply AC 220 V，50Hz Application Plastic film It is suitable for tensile,  peeling,  heat sealing,  tearing,  puncturing,  compression,  bending and other performance tests of plastic films,  composite materials,  flexible packaging materials,  tapes and other products. Composite film bag It is suitable for tensile,  peeling,  heat sealing,  tearing,  puncture,  compression,  bending and other performance tests of composite films,  co-extruded films,  composite bags,  retort bags,  aluminum-plastic composite bags and other products. Paper It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of paper,  kraft paper,  facial tissue,  toilet paper and other products. Medical Patches It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of medical cold compress,  plaster and other products. Pressure Sensitive Tapes It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of cellophane tape,  electrical insulating tape,  medical zinc oxide adhesive tape and other products. Features Flexibility and variety of control Supports stretching, peeling, heat sealing, tearing, puncture, compression, bending, shear and other tests, speed, thickness, clamping distance variable parameters set, optional pneumatic fixture, suitable for a variety of fixtures. High measurement accuracy The test measurement accuracy can reach 0.5 level, high sampling rate (100 times/second), wide speed range, can adapt to high and low speed test, make the test data more accurate. Imported core components, safe and reliable operation  Using high-precision ball screw loading, the loading is stable, the testing machine has a long life, good long-term stability and energy saving;  A plurality of load/deformation measurement subchannels are proposed, which support multiple sensor expansion measurement. A fully digital control system with imported AC servo system and motor can control the displacement zero flutters.   It has improved safety protection functions such as limit protection, overload protection, emergency stop, etc.  Double column table structure, good rigidity, control measurement unit can choose built-in type (simple appearance, save space) and external type (easy to upgrade, maintenance and separate from the microcomputer operation). Intelligent operating system  According to the computer system design of the new version of GMP appendix, the test process parameters are flexibly set, and the function of audit tracing (test tracing, log tracing) is provided, which meets the requirements of data traceability and ensures the security and integrity of the test data. You can set different levels of system operation rights.  Intelligent Statistical analysis, support multiple data standard deviation analysis. At the same time, the system can be expanded, such as access to laboratory LIMS system.  Personalized test reports are set on demand to support multiple formats of data output.  Independent test can be separated from the computer, data can be processed automatically, and a built-in micro-printer can print data in real time. The instrument is equipped with computer interface, can also be connected to the computer online detection. Laboratory intelligentIoT platform It can be connected to the Internet of Things platform to realize digital network management:  Remote login to theIoT platform can be performed by directly accessing the software interface of the instrument.  All experimental data can be viewed anywhere by simply logging in to the platform;  Unified management of experimental data of all instruments in the interface of things platform can be achieved.  A complete laboratory management process can be realized;  One-click application for after-sales service, and one-click application for relevant accessories; After-sales staff can provide remote after-sales service through the system. There is a complete after-sales record on the platform, which is convenient for after-sales staff to provide high-quality online service;  Customers may download the required instrument materials, documents and operation videos on the platform by themselves.

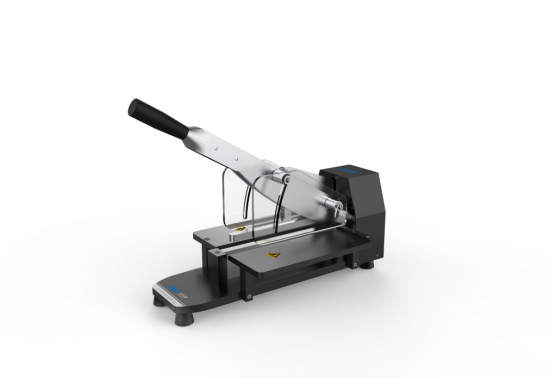

Product Description The LC-2 Sample Cutter is used for cutting samples of various plastic films, paper and other materials prior to stretching, peeling and heat sealing tests. It is easy and efficient to operate and can accurately cut samples of standard required sizes. Features Meets the sample making requirements for Type 2 specimens of standard GB/T 1040.3. Using imported tungsten steel finely ground special blades, sharp and durable, with hardness up to 92 HRA. Accurate sample size, no damage, smooth and burr-free edges. Spring tensioned for easy sample fixing and smooth sample cutting. The ability to cut up to 12 samples in a single pass allows for efficient production of large batches of samples. Safety protection, the outer layer of the blade is covered with an aricotta stopper so that the blade does not come into direct contact with it. Different sample widths can be ordered to suit the requirements of each customer.   Specifications Item Specifications  Cut size 15 mm×210 mm（Optional width） Number of samples 12 pcs（Single Layer） Sample thickness ≤ 200 μm Product size 250 mm×350 mm×248 mm Weight 11 kg

The GBL-L2 popular single-column electronic tensile tester is suitable for tensile, peeling, heat-sealing, tearing and other mechanical performance tests of various metal and non-metal materials. It meets the requirements of the national technical supervision department for test technology. It is widely used in plastic film, food, and pharmaceutical manufacturers to test products quality control and testing institutions, scientific research and teaching experiments in university.

1.Profile Xenon lamp aging test chamber simulates the full spectrum lamp with Xenon arc lamp to reappear the destructive wave. It serves for the environmental simulation and accelerated test for research and development, product development and quality control. Besides, the chamber also applies to the choice of new material, weathering test after composition of material and improvement for the current material. It simulate different environment, and show the material changes under the explosion of sunlight.   The chamber meets the standard: GB/T16585-1996 , GB14522-93 , GB/T16422.3-97, ASTM D2565 and so on. The Chamber is to determine the color fastness, aging resistance of textiles, plastics, coatings, rubber products or other materials by objecting to the simulated conditions of nature weather (sun, rain, temperature and humidity, etc.). Technical parameters 2.Material of construction u Full spectrum lamp u Optional filter system u Water spraying function u Humidity control u Temp. control system in the chamber u Sample fixed hold of irregular shape u USA imported xenon arc lamp u Easy installation and operation, seldom daily maintainance. u Service life time deepens on the irradiance level, usually 1600hrs. It’s easy to replace the lamp, with filter of long service life time to ensure the necessary spectrum. 3.Technical parameters Model No., equipment name GB-OXD-15P Xenon aging test chamber Interior sizes   W500×D500×H600mm  Exterior sizes W1050×D1050×H1750mm (or so) Temperature range 0℃～80℃ Controller imported programmable 7inch touch screen Machine components material inner and outer 304# stainless steel Sample holder Aluminum alloy frame base Protection device residual-current circuit breaker (RCCB) to control the warning for loop overload, thermal protection and water shortage protection. Temp. deflection ±2℃  (without lighting) Humidity range 30％～98％R.H Humid. deflection ±2.5%R.H(Humid.≥75%R.H); ±3%R.H(Humid.≤75%R.H) without lighting Light source imported full spectrum xenon arc lamp(average useful life 1600hrs) Raining time 1～9999min (adjustable) Raining period 1～240min, interval（cut）adjustable lamp power Test period for Temp., irradiation, condensation, spray can be adjustable Lamp 1.8KW Wave length range 290-800nm heating power (or so) 4.0KW humidification (or so) 2.0KW Light irradiance 1200w/m2 Distance between arc center and sample holder: 350～380mm Revolving speed of sample holder ≥1r/min  water spray period a. spray time: 0～99h59min (Continuing or adjustable) b. stop time: 0～99h59min, (Continuing or adjustable)   lighting time Continuing programming control available black panel temp. 85±3℃ cooling method Mechanical wind cooling; Room temp. less than 26℃ is recommend, relative humid: ≤85%R.H; humid. and temp. tested after 2 hours under idle condition. 4.Temperature & humidity running control system controller imported programmable 7inch touch screen precision range set precision: temp. ±0.1℃, humid: ±2％R.H, indicated precision: temp.±0.1℃,humid.: ±1％R.H temp. & humid. sensor Platinum Resistance(PT100Ω/MV) black panel temp. double-metal black panel temp. thermometer water-supplying system auto-control humidication water-supplying, Xenon arc lamp with cycling cooling water circulation system low noise heat-resistance conditioning motor, multi-blade centrifugal wind wheel control system mainly consists of operation panel, central controller, kinds of key-pressing sw., status indicating lamp, excution electric device etc.. 5.Structure section of machine body The chamber consists of several section: chamber body, control system, refrigeration system, heating system, humidation system, wind system, raining system, lighting system and so on. Chamber body a. With integrated structure, the chamber consists of up left part as working room, up right part as electric controller which is convenient to control, down part as compressor cooling group, sample holder rotation device, Xenon lamp condensation water box, water pump and other executive devices. b. Inner wall of chamber adopts international SUS304# material. c. Temp. insulation material is polyurethane foam and ultra-fine fibre glass, with good temp. insulation result, no frost and condensation on the external surface of chamber. d. condensate water outfall set at the bottom of chamber e. Environmental heat-resistance silicon sealing tape as the material of door frame. f. Viewing window with eye-protective film on its surface to protect eyes from being injured by Xenon lamp. external chamber body a. Seal of door adopts the double-layer of refined silicone rubber with reliable sealing effect and no aging or hardening phenomenon under high or low temperature. b. Single door (embedded handle); c. Viewing window, antifrost device and lamp equipped on the door viewing window Size：25 cm W × 30 cm H；equipped with Anti-radiation hollow glass 6.Electric control section of chamber a. As the core part of chamber b. Air pressure switch as the main switch to control the main circuit; c. Safety measures for electric section: it warns and cut electricity automatically after tested the action from following protection devices: a) overheat protection in working room b) lockage of phase, leakage protection c) overcurrent protection of motor d) overpressure/overload protection of cooling machine e) short out/overload protection of heater, humidifer f) fusing protection of fuse 7.Working section of chamber Condensation section of compressor. a.Cooling system: as the core part of cooling system, we adopt one set of compressor of Tecumseh from France in this case to ensure the cooling requirement in the working room. b.For adjustment technology and design of cooling system, we take an efficiency processing way to ensure the adjustment for the cooling amount and consumption of cooling system under the normal running, to make the failure rate down to the economical statue. c.Cooling evaporator: it locates in interlayer at one side of chamber which ventilate by force from blast motor to exchange heat fast. d.Cooling method of cooling system: forced air cooling Cooling refrigerant：Environmental R404a； Heating system a. Heating method: heating directly in the chamber; b. Military level stainless steel heating tube used, with fast and stable heating to keep temperature in the working room from rapid change. It with corrosion resistance, anti-high-low temperature, no leakage and other advantages. c. With SSR (solid relay)output control, without noise, reliable working, long service life time, fast switching, low interference from outside, and easy operation etc.. Rain system.   it consists of nozzle, solenoid valve, water-supplying and connecting pipe. Lighting system. It consists of xenon lamp, lamp cover, lamp contactor and other controlling parts. Energy compensation is got by adjusting samples distance, pressure and current. Wind system  It locates in the interlayer at the back of chamber, there are heater, fan blade, evaporator, PT100 temperature samples sensor etc.. when wind machine running, the air is intaken to the channel from working room, and blow out from the bottom after cooled; the air exchanged in the working room with samples is intaken again to the channel and mix; after several circulation, it will reach the purposed temperature, and ensure the high index of temp. and humid in the chamber at the same time. Cooling dehumidification system take the compressor of world brand Tecumseh from France to keep constant temperature, decrease the humidity in the working room and cool the xenon lamp. Humidification Steam generator: to generate steam from water Water level control: control the water inlet by solenoid valve, and water level by liquid level switch to provide the signal for water-supply and warning. Air circulation section Cycling channel and winding machine inside the chamber, it uses the high efficiency cooling machine and energy adjusting system, efficiency heat exchange to reach the aim of temperature change, which also improves the airflow and heat exchange between airflow, heating and humidification, as a result, it improves the humidity uniformity in the working room. 8. Enclosured files: operation manual, warranty card 9. Machine running requirements Temp. 5℃~+32℃ Humidity ≤85% Power supply AC220（±10%）V/50HZ    10. Core components parts Remark: replacement of some small parts of the same quality is possible because of material shortage.

The tear tester (elemendorf method) tests the tear resistance of paper, film, PVC, polyolefin, polyester, composite film, sheet, non-woven fabric, textile, paper, and board, etc. It is controlled by computer automatically and can be tested independently.

1. FunFunction Salt spray test chamber is used for the quality inspection and corrosion resistance test of a variety of materials, including metal plating, metal, electronic components, chemical coatings, paint, automobiles, motorcycles, metal ware, screws, springs, magnetic materials, organic and inorganic coating, anodizing, anti-rust oil industry etc. after the surface treatment. 1. ecGTechnical parameters 1. MODEL GB-OSH-60 2. Temperature inside chamber 35℃±1℃/ 50℃±1℃ 3. Temperature of pressure barrel 47℃±1℃/ 63℃±1℃  4. Inner size W600 x H400 x D450mm   5. External size W1080 x H1080 x D650mm 6. Temperature Uniformity ≤±2℃ 7. Uniformity Fluctuation ≤±0.5℃ 8. Salt fog settlement 1～2ml/h.80cm2 9. Compressed air pressure 1.00±0.01kgf/cm² 10. Spray mode Continuous or intermittent spray optional 11. Power supply AC  220V   50Hz   1.5KW a)  Temp. range: RT+10℃ ~ 55℃ （temperature up to 50C, thickening PVC or PP material is recommended ） b) Humid. range: ≥93%R.H c) Controller time shown: 9.9s~9990hrs d) Timer: 0~9999hrs. e) Testing method: Neutral salt spray test (NSS test), acetic acid salt spray test (AASS test), salt spray test (SS test), copper accelerated acetic acid salt spray test method for salt spray test (CASS test) and so on; (For CASS test, we recommend the PP material chamber with high temperature resistance) f) Specimen holder: It can meet the tilt test at 15 ℃ ~ 30 ℃ (two layers)； g) Air compressor: V-0.013/12.5(Customer provided); discharge pressure:1.25M; flow amount: 0.13m3/min   1. MMMaterial of machine body a) Salt spray chamber adopts the quality PVC reinforced hard plastic plate, the surface is smooth and anti-aging, anti-corrosion; b) Without any FRP material produced on the surface because of discoloration fibrosis. Plastic structure of the chamber is better to meet strong acid salt spray test under long-term without any damage. c) Cover is imported transparent impact-resistant plate which is convenient to test specimen when test, that can cover and the box with a water seal to prevent leakage of salt spray.   2. AccAccording to CSN, JIS, ASTM standards, can be set to constant temperature control: (a) Brine spray test: NSS (neutral); · Temp. inside chamber: 35 ℃ ± 1 ℃ · Pressure air bucket: 47 ℃ ± 1 ℃ (b) Corrosion resistance test: CASS (copper acceleration), AASS (acid) · Temp. inside chamber: 50 ° C ± 1 ° C · Pressure air bucket: 63 ℃ ± 1 ℃   3. Watwatering system. It adopts the auto watering system, supply water when lack of water. 4. HeaHeating system Test temperature inside the cabinets is heated humidification water jacket, the heater adopts advanced titanium protective tube, built-in nickel-chromium alloy infrared heater core. Heating up fast, uniform temperature distribution; and saves about one half of the power compared to FRP tank jacketed heating. 5. ExeExecutive standard GB/T 2423.17 Basic test procedures for electric and electronic products Ka"- salt spray test methods; GB/T 10125 Corrosion tests in artificial atmospheres – salt spray tests; ASTM B368 Test Method for Copper-Accelerated Acetic Acid-Salt Spray (Fog) Testing (CASS Test); JIS Z2371-2000 Methods of salt spray testing etc. ISO 9227 Corrosion tests in artificial atmospheres (Note: 2 collection device is required, bigger models than ZH-SH-90 (270L) is required; In some versions, it specifies over 400liters is necessary)  ASTM B117-18 Standard Practice for Operating Salt Spray (Fog) Apparatus (Note: 2 collection device is required, bigger models than ZH-SH-90 is required )

GBD-S Tear Tester test the tear resistance of paper, film, non-woven fabrics and so on.

GC9802-K Face Mask Ethylene Oxide (EO) Residuals Testing Gas Chromatography has a reasonable structure, stable and reliable performance, simple operation and convenient maintenance. Can be widely used in petroleum, chemical industry, pesticides, medicine and health, commodity inspection, environmental protection, universities and other production and scientific research departments. It can be used to detect ethylene oxide and other organic solvents. Detects purity or content of a single solvent
