GBH-1 Electronic Universal Tensile Tester used to test the traction, stripping, sealing, tear, piercing, compression, bending, and cutting strength of plastic film, composite film, tape, soft packaging material, rubber sheets, paper, non-woven fabrics and other packaging materials, widely used in industries of plastic films, packaging, pharmaceuticals, food, inspection agency, research institute, college and so on.

  • Professional Universal material testing machine -GHH supplier
    Universal material testing machine -GHH

    Product introduction

    GHH universal material testing machine is the Guangzhou international r&d team based on GB, JIS, ASTM, DIN and other standards and market demand to upgrade the mechanical properties of new testing machine, suitable for all kinds of metal, non-metallic materials tensile, stripping, heat sealing, tearing, piercing, compression, bending and shear test, and then calculate the material parameters such as fracture strength, elastic modulus, It can also be used in the medical industry of syringe piston sliding, body tightness test verification.

    GHH universal material testing machine has a flexible interface and control mode, can do stretching, peeling, and other tests, speed, thickness, clamping distance multi-parameter variable setting; The measuring accuracy can reach 0.5 level; The whole process is controlled by computer, open data structure; The core adopts imported parts, loaded with high-precision ball screw; Control measurement unit, can choose the built-in or external type, with perfect limit protection, overload protection, emergency stop and other safety protection functions.

    GHH universal material testing machine is suitable for plastic sheet, pipe, profile, plastic film and rubber, wire and cable, steel, glass fiber and other materials of all kinds of physical and mechanical properties test for material development, is the physical property test, teaching research, quality control and other indispensable testing equipment.

    Test principle

    Will be clamped specimen in tensile machine fixture between two chuck, two clip do relative movement, through strength sensor and the machine is located in the moving clamp head built-in displacement sensor, collected test force value change and displacement in the process of change, to calculate the sample drawing (tensile strength, elongation at break and the elastic modulus of performance indicators, etc.

    Standard

    JJG 139, ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113

    Item

    Technical parameters

    Test range

    03000 NMultiple groups of sensors can be selected within 20000 N

    Test measurement

    Within ±0.5 %FS

    Test speed

    0~500 mm/mincontinuously variable speed

    Speed precision

    Indicates within ±1% of the value

    Displacement measurement accuracy

    Indicates within ±0.5% of the value

    Effective test stroke

    1000 mm

    Effective test stroke

    1100%

    Effective test width

    30 mm

    Force value resolution

    0.001 g

    Resolution of displacement

    0.001 mm

    Size

    L×W×H750 mm×500 mm×1800 mm

    Weight

    150 kg

    Power

    1000 W

    The power supply

    AC 220 V50 Hz

    Features

     Flexibility and variety of control

    Supports stretching, peeling, heat sealing, tearing, puncture, compression, bending, shear and other tests, speed, thickness, clamping distance variable parameters set, optional pneumatic fixture, suitable for a variety of fixtures.

     High measurement accuracy

    The test measurement accuracy can reach 0.5 level, high sampling rate (100 times/second), wide speed range, can adapt to high and low speed test, make the test data more accurate.

     Imported core components, safe and reliable operation

     Using high-precision ball screw loading, the loading is stable, the testing machine has a long life, good long-term stability and energy saving;

     A plurality of load/deformation measurement subchannels are proposed, which support multiple sensor expansion measurement. A fully digital control system with imported AC servo system and motor can control the displacement zero flutters.

      It has improved safety protection functions such as limit protection, overload protection, emergency stop, etc.

     Double column table structure, good rigidity, control measurement unit can choose built-in type (simple appearance, save space) and external type (easy to upgrade, maintenance and separate from the microcomputer operation).

     Intelligent operating system

     According to the computer system design of the new version of GMP appendix, the test process parameters are flexibly set, and the function of audit tracing (test tracing, log tracing) is provided, which meets the requirements of data traceability and ensures the security and integrity of the test data. You can set different levels of system operation rights.

     Intelligent Statistical analysis, support multiple data standard deviation analysis. At the same time, the system can be expanded, such as access to laboratory LIMS system.

     Personalized test reports are set on demand to support multiple formats of data output.

     Independent test can be separated from the computer, data can be processed automatically, and a built-in micro-printer can print data in real time. The instrument is equipped with computer interface, can also be connected to the computer online detection.

     Laboratory intelligent IoT platform

    It can be connected to the Internet of Things platform to realize digital network management:

     Remote login to the IoT platform can be performed by directly accessing the software interface of the instrument.

     All experimental data can be viewed anywhere by simply logging in to the platform;

     Unified management of experimental data of all instruments in the interface of things platform can be achieved.

     A complete laboratory management process can be realized;

     One-click application for after-sales service, and one-click application for relevant accessories; After-sales staff can provide remote after-sales service through the system. There is a complete after-sales record on the platform, which is convenient for after-sales staff to provide high-quality online service;

     Customers may download the required instrument materials, documents and operation videos on the platform by themselves.



    View More
  • laboratory product packaging
    Tensile Strength Measurement Device Polymer Laboratory Equipment Of Plastic Bags-GBH-2

    GBH-2 multifunctional single-column electronic tensile tester for plastics, films, fibers, rubber sheets, composite materials, tapes, soft packaging materials, paper, non-woven fabrics, medicine package materials, syringes, bottlescovers, rubber plugs and other packaging materials are tested for mechanical properties to meet the needs of different users.

    View More
  • Universal Tensile Measure Tester
    Tensile Measure Tester Testing Material Physical Properties -GBH-1

    The electronic tensile tester is applicable to testing the traction, peeling, sealing, tearing, puncture, compression, bending and cutting strength materials of plastic film, composite film, tape, flexible packaging materials, rubber sheet, paper, non-woven fabric and other packaging materials

    View More
  • Electronic Tensile Tester

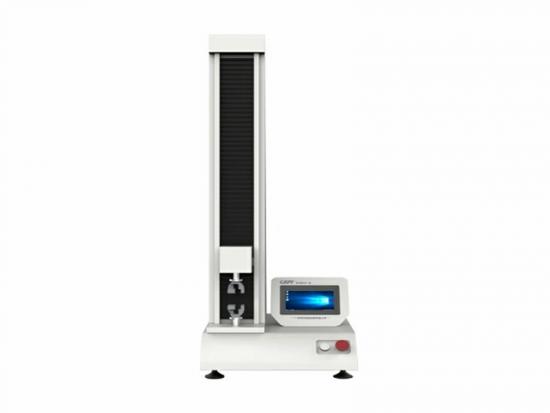

    Electronic Digital Tensile Tester Machine GBL-H

    The popular single-guidance electronic tensile testing machine GBL-H is a mechanical property testing machine developed and manufactured by the Guangzhou Biaoji R&D team based on GB, JIS, ASTM and other standard requirements and market demands. The instrument adopts high-precision sensors, and the force measurement accuracy is within ±1 %FS; professional software support, fully automatic operation, equipped with liquid crystal display screen, real-time display of test curve data and query test report, convenient and fast testing; Choose built-in or external, with perfect limit protection, overload protection, emergency stop and other safety protection functions.

    View More
  • Electronic Tensile Tester

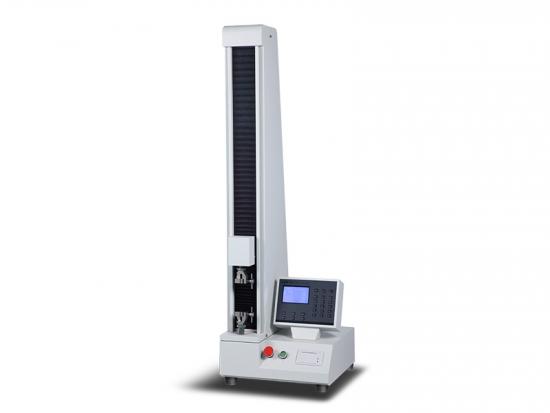

    Electronic Digital Tensile Tester Machine GBL-L

    GBL-L Electronic Digital Tensile Tester Machine apply to test the tensile strength, peeling strength, heat sealing strength and tearing strength of plastic film, composite film, tape, soft packaging material, rubber sheets, paper, non-woven fabrics and other packaging materials, widely used in industries of membrane, packaging, pharmaceuticals, food industries, inspection agency, research institute, college and so on.

    View More
  • Tensile Test Sample Cutter

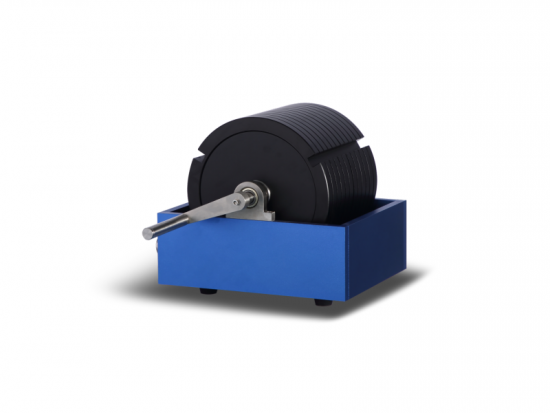

    Tensile Test Sample Cutter - LC-1

    LC-1 Tensile Test Sample Cutter cuts samples of plastic film, paper and so on in preparation for other tests, such as tensile, peeling, tearing and heat sealing etc. It is compactly structured and easy to use. The edges of sample cut out are even and smooth.

    View More
