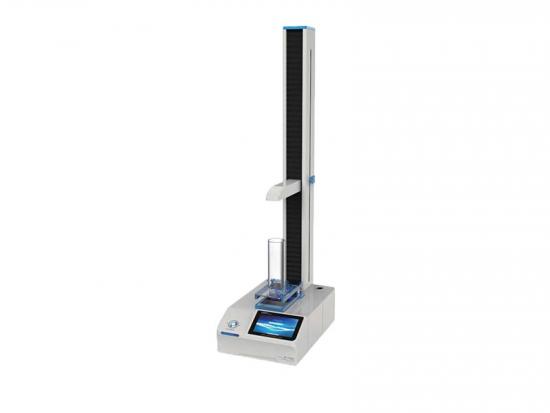

GQ-D1 Drop Ball Impact Tester High Precision Impact Resistance Tester for Packaging PRODUCT PROFILE GQ-D1 Drop Ball Impact Tester is mainly used for testing the impact resistance of hard sheets for food packaging and solid pharmaceutical hard sheets. Traditional electromagnets generate high temperature and residual magnetism after power off, affecting accuracy. This instrument adopts the principle of electromagnetic repulsion, which can automatically release residual magnetism and avoid high temperature, ensuring experimental accuracy. It features high-precision control, intelligent operation and complete safety protection, widely applied in food and pharmaceutical packaging quality control. TEST PRINCIPLE Place the test product on the test bench. Let a steel ball of specified weight fall freely from a specified height to impact the product. Then check the product's appearance for damage and various performance indicators. COMPLIANCE STANDARDS GB/T 15267 YBB 0021-2005 YBB 00202005 YBB 00222005-2015 TECHNICAL PARAMETERS Item Parameter Impact Height 0~900 mm Steel Ball Φ23mm (50g), Φ25mm (60g), Φ28.6mm (100g), Φ38.1mm (225g) Clamping Range 120mm × 85mm Sample Size 150mm (L) × 50mm (W) Dimensions 325 × 550 × 1341mm Weight & Power 30kg, 75W, AC 220V 50Hz PRODUCT FEATURES Touch Screen Control Color touch screen for intuitive and easy operation. Anti-Residual Magnetism Electromagnetic repulsion principle, no residual magnetism or high temperature. Pneumatic Clamping Auto clamping/release reduces error and test time. Built-in Printer Instant test report printing and data query. Intelligent Test Intelligent testing process, greatly improve work efficiency. Accurate & Reliable Stable structure and accurate test results. APPLICATIONS Food Packaging Hard Sheets For PVC hard sheets in food packaging, quality control for food & packaging enterprises. Solid Pharmaceutical Hard Sheets For pharmaceutical hard sheets, quality control for pharmaceutical & packaging enterprises. © 2025 GBPI | GQ-D1 Drop Ball Impact Tester | Professional Testing Solution

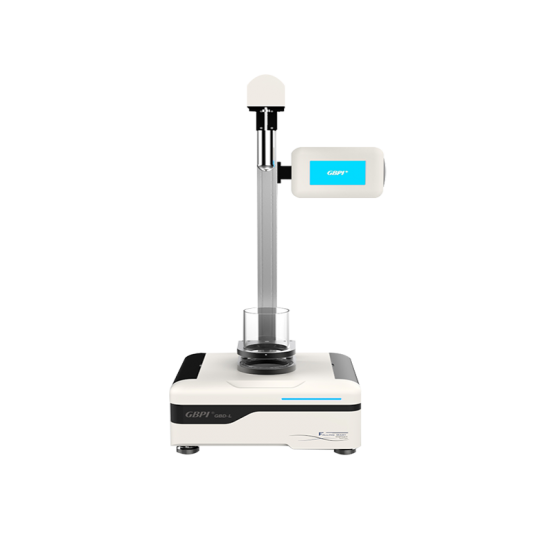

GBD-L2 falling dart impact tester is suitable for testing materials such as plastic film or sheet and steel plate coating with a thickness of less than 1mm. Under a given height of free falling dart impact, it can measure the energy (in Quality to express results) of plastic films,thin section specimens and other materials. Through the impact resistance test, it can prevent the packaging surface from being damaged when the packaging material is impacted or dropped due to insufficient toughness of the packaging material, and effectively avoid the product from being damaged due to impact or falling in the circulation link. It can be used in scientific research, teaching, industrial and mining enterprises, laboratories, research institutes and quality supervision departments.

GBD-L Falling Dart Impact Tester test the impact resistance of various films, metallic foil and so on, widely used in industries of packaging, plastic films, laboratory, research institute, inspection agency and so on.
