Product Introduction The GBB-A3 Lid Film Heat Sealer can accurately determine heat seal performance parameters (including heat seal temperature, time, and pressure) for lid films used in food and pharmaceutical packaging, such as those for jelly cups, yogurt cups, coffee capsules, instant noodle buckets, meal boxes, and medical blister packs. Since heat seal performance varies across different materials, measuring these parameters allows for precise determination of optimal heat seal conditions. Testing Principle Install appropriate fixtures on the instrument’s lower pallet and place the sample on the fixture. Set the desired heat seal temperature, time, and pressure, then start the instrument with one click—the upper fixture will descend to seal the sample. In manual mode, pressing the foot switch once activates the sealing knife, and the heat seal duration is determined by the preset time. In automatic mode, the upper and lower sealing knives repeatedly perform heat sealing automatically according to the set time. Executive Standards QB/T 2358-1998, ASTM F 2029, YBB00122003-2015 Technical Parameters Item Specification Temperature Range Room temperature ～ 250℃ Temperature Control Precision ±1℃ Heat Seal Time 0.1s ～ 99.99h Heat Seal Pressure (0~1) MPa Operation Modes Automatic and manual Air Source Compressed air Dimensions 730(L) mm × 400(B) mm × 535(H) mm Weight 45 kg Power 1200 W Power Supply AC 220V, 50Hz   Product Features Pull-out Loading DesignThe lower pallet features a double-layer stacking structure, enabling pull-out loading that keeps operators away from the upper sealing knife, ensuring both convenience and safety. High-Precision Temperature SensorEquipped with a high-precision temperature sensor and PID algorithm for temperature control, achieving a precision of ±1℃, with ultra-high stability and extremely low failure rates. Flexible Testing OptionsFreely switch between manual and automatic testing. The automatic mode saves time with fully automated, repeatable heat sealing; the manual mode includes a compatible foot switch—pressing it once activates the sealing knife, ensuring safe and easy operation. Advanced Pneumatic Drive SystemComposed of a pressure gauge, pressure regulating valve, and cylinder, the system uses compressed air. Pressure is adjusted via the valve to precisely lock air pressure, enabling pneumatic-driven heat seal clamping for efficient operation. Extensive Customization Services Custom fixed fixtures can be made according to samples, and fixtures are interchangeable based on cup sizes. The sealing knife can be upgraded with anti-stick functionality for a better user experience, making it easier to determine optimal heat seal conditions. Customizations for the shape, size, and smoothness of the sealing surface are available to meet diverse research needs.

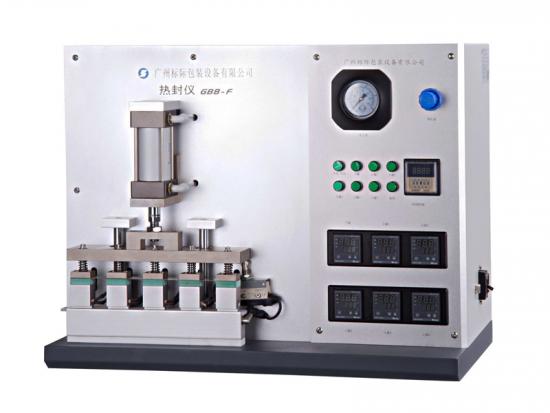

GBB-F1 Heat Seal Tester is to test the temperature, pressure, and time for heat sealing of various film materials. It is applied to quality inspection organizations, drug control institutions, research institutes, packaging, thin film, food companies, pharmaceutical enterprises, personal care industry and so on.

Product Introduction GBB-C vertical heat seal tester can accurately measure the heat sealing temperature, heat sealing time, heat sealing pressure, and other heat sealing performance parameters of plastic packaging vertical bags, paper-plastic composite vertical bags and metal composite vertical bags(boxes). The heat sealing performance of samples of different materials are different. And the best heat sealing conditions can be accurately obtained through the determination of their heat sealing performance parameters.   Testing Principle Put the sample on the lower tray of the instrument, adjust the appropriate height according to the size of the sample, set a certain sealing temperature, time and pressure as required, and start the instrument with one key. The fixture on the instrument will heat seal the sample according to the setting parameters. Under the manual state, step on the foot switch, and the heat sealing knife is pressed. The heat sealing time is determined by the value set by the time control. In the automatic state, the upper and lower heat sealing knives of the heat sealer will automatically heat seal repeatedly according to the set time. Standards ASTM F 2029 Specifications Item  Technical Parameters Temperature Range Room temperature ～ 250℃ Temperature Control Accuracy ±1℃ Hot Sealing Time 0.1s ～ 99.99 h Hot Sealing Pressure (0~1) MPa Hot Sealing Surface Upper and lower sealing knives: 300×5.5 mm, smooth; lower sealing bar with silicon pad Operation Mode Two modes: automatic and manual, with external cylinder Gas Source Compressed air Overall Dimensions 730(L) mm×400(B) mm×535(H) mm Weight 33.8kg Power 1200 W Power Supply AC 220V, 50Hz     Characteristics u High progress imported quality sensor, quality assurance Original imported temperature sensor, wide temperature control range, high sensitivity, temperature control accuracy of ± 1 ℃, it has ultra-high stability and ultra-low failure rate. u Independent control of heat sealing temperature The rear of the heat sealing knife is equipped with a temperature sensor, and the temperature control of the inner and outer sealing knives is independent and set separately. u Personalized test selection Manual testing and automatic testing are free to choose. The automatic mode is time-saving and convenient, and the repeatability is fully automatic for heat-sealing the sample; the manual mode is equipped with a suitable foot switch, step on the foot switch, the heat sealing knife is pressed, and the safety protection is easy to operate. u New air drive system The drive system consists of a pressure gauge, a pressure regulating valve, and a cylinder. After the compressed air is introduced, the pressure is adjusted through the pressure valve, the air pressure can be accurately locked, and the heat sealing clamp is pneumatically driven, which is convenient and efficient. u Wider range of customized services The anti-sticking function of the heat sealing knife can be upgraded as needed, experience upgrade, and it is more intuitive and convenient to determine the best heat sealing conditions. The shape, size and smoothness of the sealing knife heat cover can be customized to meet different scientific research needs.   Application     Plastic stand up pouch Paper plastic stand up pouch     Aluminized stand up pouch Milk Boxes

Heat Seal Analyzer widely used in industries of plastic films, food, pharmaceuticals, inspection agency, research institute and so on,it is to test the temperature, pressure, and time for heat sealing of various film materials.

GBB-A Heat Seal Tester accurately test the heat seal temperature range, heat seal strength, suitable heat seal speed and heat seal pressure of plastic film, flexible packaging composite film, coated paper, aluminum foil, etc. It is applied to the quality control of various plastic film, food and drug manufacturer, the scientific research and teaching experiment of testing institutions and schools

Heat Seal Tester is to test the temperature, pressure, and time for heat sealing of various film materials.
