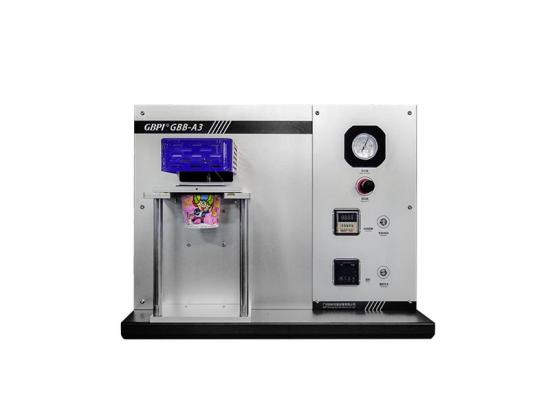

GBB-A3 Lid Film Heat Sealer

Heat Seal Tester is to test the temperature, pressure, and time for heat sealing of various film materials.

GBB-A Heat Seal Tester accurately test the heat seal temperature range, heat seal strength, suitable heat seal speed and heat seal pressure of plastic film, flexible packaging composite film, coated paper, aluminum foil, etc. It is applied to the quality control of various plastic film, food and drug manufacturer, the scientific research and teaching experiment of testing institutions and schools

Heat Seal Analyzer widely used in industries of plastic films, food, pharmaceuticals, inspection agency, research institute and so on,it is to test the temperature, pressure, and time for heat sealing of various film materials.

Product Introduction GBB-C vertical heat seal tester can accurately measure the heat sealing temperature, heat sealing time, heat sealing pressure, and other heat sealing performance parameters of plastic packaging vertical bags, paper-plastic composite vertical bags and metal composite vertical bags(boxes). The heat sealing performance of samples of different materials are different. And the best heat sealing conditions can be accurately obtained through the determination of their heat sealing performance parameters.   Testing Principle Put the sample on the lower tray of the instrument, adjust the appropriate height according to the size of the sample, set a certain sealing temperature, time and pressure as required, and start the instrument with one key. The fixture on the instrument will heat seal the sample according to the setting parameters. Under the manual state, step on the foot switch, and the heat sealing knife is pressed. The heat sealing time is determined by the value set by the time control. In the automatic state, the upper and lower heat sealing knives of the heat sealer will automatically heat seal repeatedly according to the set time. Standards ASTM F 2029 Specifications Item  Technical Parameters Temperature Range Room temperature ～ 250℃ Temperature Control Accuracy ±1℃ Hot Sealing Time 0.1s ～ 99.99 h Hot Sealing Pressure (0~1) MPa Hot Sealing Surface Upper and lower sealing knives: 300×5.5 mm, smooth; lower sealing bar with silicon pad Operation Mode Two modes: automatic and manual, with external cylinder Gas Source Compressed air Overall Dimensions 730(L) mm×400(B) mm×535(H) mm Weight 33.8kg Power 1200 W Power Supply AC 220V, 50Hz     Characteristics u High progress imported quality sensor, quality assurance Original imported temperature sensor, wide temperature control range, high sensitivity, temperature control accuracy of ± 1 ℃, it has ultra-high stability and ultra-low failure rate. u Independent control of heat sealing temperature The rear of the heat sealing knife is equipped with a temperature sensor, and the temperature control of the inner and outer sealing knives is independent and set separately. u Personalized test selection Manual testing and automatic testing are free to choose. The automatic mode is time-saving and convenient, and the repeatability is fully automatic for heat-sealing the sample; the manual mode is equipped with a suitable foot switch, step on the foot switch, the heat sealing knife is pressed, and the safety protection is easy to operate. u New air drive system The drive system consists of a pressure gauge, a pressure regulating valve, and a cylinder. After the compressed air is introduced, the pressure is adjusted through the pressure valve, the air pressure can be accurately locked, and the heat sealing clamp is pneumatically driven, which is convenient and efficient. u Wider range of customized services The anti-sticking function of the heat sealing knife can be upgraded as needed, experience upgrade, and it is more intuitive and convenient to determine the best heat sealing conditions. The shape, size and smoothness of the sealing knife heat cover can be customized to meet different scientific research needs.   Application     Plastic stand up pouch Paper plastic stand up pouch     Aluminized stand up pouch Milk Boxes

GBB-F1 Heat Seal Tester is to test the temperature, pressure, and time for heat sealing of various film materials. It is applied to quality inspection organizations, drug control institutions, research institutes, packaging, thin film, food companies, pharmaceutical enterprises, personal care industry and so on.

Vacuum Coating Thickness Tester is applied to various vacuum aluminum film, aluminized paper, and other conductive coating materials to test the resistance value, evenness, thickness and so on.

Product Brief The N600P Paper & Paperboard Air Permeability Tester is custom-developed to align with standards like GB/T 458-2008 and ISO 5636. It adopts the differential pressure method as its core testing principle, and innovatively integrates three industry-common testing approaches (Gurley, Schopper, and Bendtsen) into a single device.   This tester is applicable to air permeability detection of various paper and paperboard materials, and can measure key indicators including: material air permeability, air resistance, gas transmission rate, and total gas transmission volume. Testing Principle Gurley Method   Under a constant differential pressure of 1.23 kPa, measure the time required for 100 mL of gas to pass through the sample. Schopper Method   Select a suitable test duration under a constant differential pressure (1.00 kPa±0.01 kPa or 2.50±0.01 kPa), and calculate the gas flow rate through the sample by measuring the gas volume. Bendtsen Method   After clamping the sample for 5 seconds under a constant differential pressure of 1.47 kPa, test the gas flow rate through the surface of the sample. Executed Standards GB/T 458-2008, SJ/T 10171-2016, ISO 5636-5:2003, ISO 5636-2:1984, ISO 5636-3:2013, TAPPI T460 Technical Parameters   Item Technical Parameters Test Range 0.1~10 μm/(Pa·s) Resolution 0.001 μm/(Pa·s) Differential Pressure Range 0~5 kPa Pressure Resolution 0.001 kPa Test Area 6.42 cm² or 10.0 cm² Sample Size ＞50 mm×50 mm Instrument Dimensions (L×W×H) 450 mm×400 mm×300 mm Power 100 W Power Supply 110~250 VAC, 50~60 Hz

The HP-D1 Automatic Torque Tester HP-D1 is innovated to test cap torque for detecting sealing performance of packaging containers, such as plastic bottles, liquid boxes, cans, etc.

full-automatic migration tester is specialized for testing dissolved non-volatile-matter of materials after soaked in specific solution.

  GBL-H2 Electronic Universal Testing Machine High Precision Mechanical Performance Tester Product Introduction GBL-H2 is a universal single-column electronic tensile testing machine developed by GBPI based on GB, ASTM standards and market demands. Equipped with high-precision sensors, it features high accuracy, stable loading and long service life. With LCD display and professional software, it shows real-time test curves and reports. Fully automatic operation with complete safety protections: limit protection, overload protection and emergency stop. Widely used for tensile, peeling, heat sealing, tearing, puncture tests of metal & non-metal materials in food, pharmaceutical, packaging industries, inspection centers and research institutes. Test Principle The prepared sample is fixed between two clamps. Start the instrument to make the clamps move relatively. The force sensor collects force changes, and the displacement sensor collects displacement changes, so as to calculate the tensile, peeling, heat-sealing, tearing and other performance indicators of the sample. Compliance Standards GB 8808 GB 13022 GB/T 1040 ASTM D882 ASTM E4 YBB Series QB/T Series Technical Parameters Item Parameter Force Range 0~300N (Optional 0~500N) Accuracy ±0.5% FS Test Speed 0~500 mm/min Displacement Accuracy ±0.5% Test Width 30mm (50/60mm customizable) Stroke 750mm (1000/1200mm customizable) Dimensions 600×500×1300mm Weight 65kg Power AC 220V 50Hz Product Features Ergonomic Design Desktop column structure, compact and easy to operate. High-Efficiency Test Tensile, peel, tear, puncture test available. High sampling rate 100 times/sec. Safety & Stability Triple safety protection, emergency stop, imported core parts. Intelligent System User management, audit trail, GMP compliant, off-line & PC control. IoT Platform (Optional) Data management, remote diagnosis and fault solving. Applications Plastic Films Film, composite, packaging materials, tape Composite Film Bags Composite bags, cooking bags, aluminum-plastic bags Paper Kraft paper, tissue, paper products Medical Patches Medical patches, plaster, cooling gel Adhesive Tape Insulation tape, medical tape, glass paper tape © 2025 GBPI | GBL-H2 Electronic Universal Testing Machine | Professional Testing Solution

Introduction   The fully automatic two-station turntable spout sealing machine is a machine specially used for automatic sleeve and heat sealing of spouts and pouches. It is suitable for spouts of various calibers, lengths and models. It is the preferred automation equipment for spout stand-up pouches for beverage packaging, suckable jellies, condiments and daily chemical products (laundry detergent, skin care products), etc. It can be customized to connect to the filling production line.   Specification Item Technical parameters Pouch type Stand-up pouch, three-side sealed pouch, accordion pouch, special-shaped pouch Material type Pouch: inner layer PE, inner layer PP Spout: PE, PP Product Specifications Pouch dimensions (center seal): 100~180 mm (length), 70~120 mm (width), seal length: 60~120 mm (slant seal): 135-180 mm (length), 70-100 mm (width), seal length: 60~120 mm Spout dimensions: 8.5 mm (standard), 10 mm, 14 mm, 16 mm, etc. Working speed Max80- 90 pcs/min Position accuracy ≤±0.5 mm Heat sealing system A total of 6 groups, including 1 preheating group, 4 heat sealing groups, and 1 cooling group Temperature control module 3 groups (8-channel modules), accuracy ±0.1℃ Heating temperature Room temperature ~300℃ Power supply 380V/50Hz   12KW Gas source 0.6~0.8MPa，600L/min Overall dimensions 3428 x 2525 x 2241mm (Length x Width x Height) Equipment weight 2400 Kg     Features l The sealing equipment features a two-station design, with fully automated operation of preheating, bagging, tube filling, and heat sealing processes.   l It utilizes PLC control and intelligent parameter setting, allowing for quick parameter adjustments based on different pouch types and spouts, simplifying operation.   l It employs imported temperature control modules and pneumatic components from SMC, Festo, and Airtac, ensuring reliable quality.   l It adopts a step-by-step heating and final cooling sealing process, resulting in excellent sealing performance.   l It features automatic fault detection, automatic alarm, automatic stop, and automatic fault diagnosis and display.   l The equipment is lightweight, occupies a small area, and boasts stable performance.   l All major components are made of aluminum alloy and stainless steel, meeting the environmental hygiene requirements of food and pharmaceutical GMP.
