Testing Principle
The W201 2.0 WVTR Tester operates on the electrolytic method principle. A pre-treated sample is clamped between two test chambers, dividing the system into a high-humidity side and a low-humidity side. Humidified nitrogen flows on one side of the film, while dry nitrogen (carrier gas) flows at a constant rate on the other. Driven by the humidity gradient, water vapor permeates from the high-humidity side to the low-humidity side. The transmitted water vapor is carried by the flowing dry nitrogen to an electrolytic sensor, and parameters such as the sample’s WVTR are derived from the electrical signal output by the sensor.

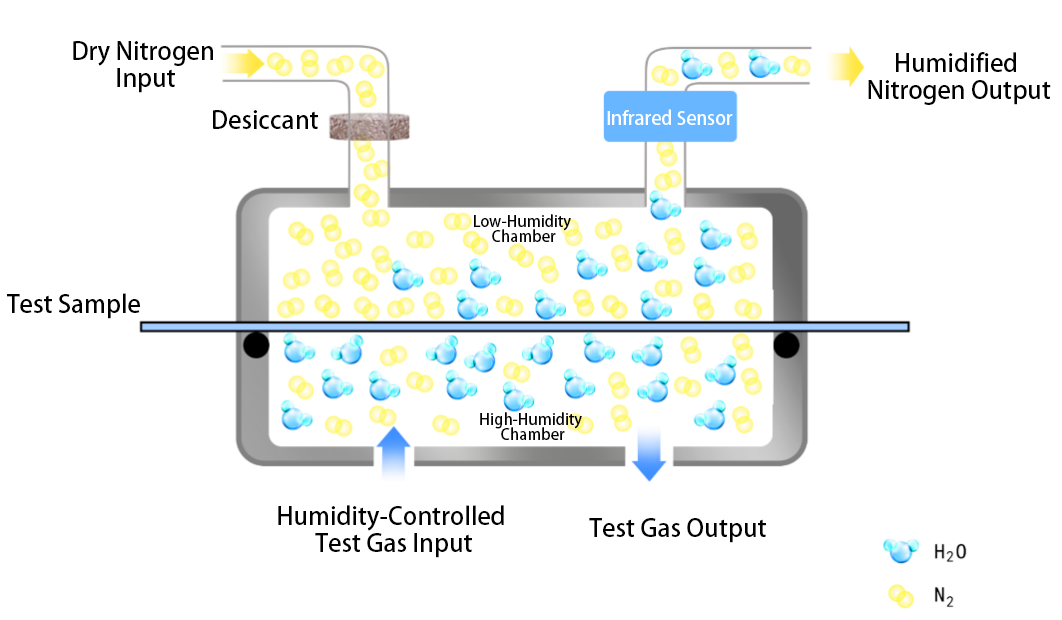

Electrolytic Method Working Principle Diagram
Executive Standards
- 2025 Edition Chinese Pharmacopoeia 《4010 Determination of Water Vapor Transmission Rate of Pharmaceutical Packaging Materials》
- GB/T 21529-2008
- ISO 15106-3
- DIN 53122-2
- YBB00092003-2015
- ASTM E398-2013
Technical Parameters
| Item | Parameters |
| Measuring Range | 0.001~40 g/(m²·24h) (for films and sheets) |
| Resolution | 0.0001 g/(m²·24h) (for films and sheets) |
| Temperature Control Range | 15～45℃ |
| Temperature Control Accuracy | ±0.1℃ |
| Humidity Control Range | (5～90) %RH |
| Humidity Control Accuracy | ±1%RH |
| Standard Testing Area | 50.24 cm² |
| Sample Size | Φ100 mm |
| Sample Thickness | ≤3 mm |
| Number of Test Positions | 1 |
| Carrier Gas | 99.999% Nitrogen (user-provided) |
| Carrier Gas Pressure | ≥0.1 MPa |
| Carrier Gas Flow Rate | 0~100 mL/min |
| Gas Source Interface | 1/8 inch metal tube |
| Overall Dimensions | 380×620×385 mm |
| Weight | 25 kg |
| Power | 450 W |
| Power Supply | AC 220 V, 50 Hz |
