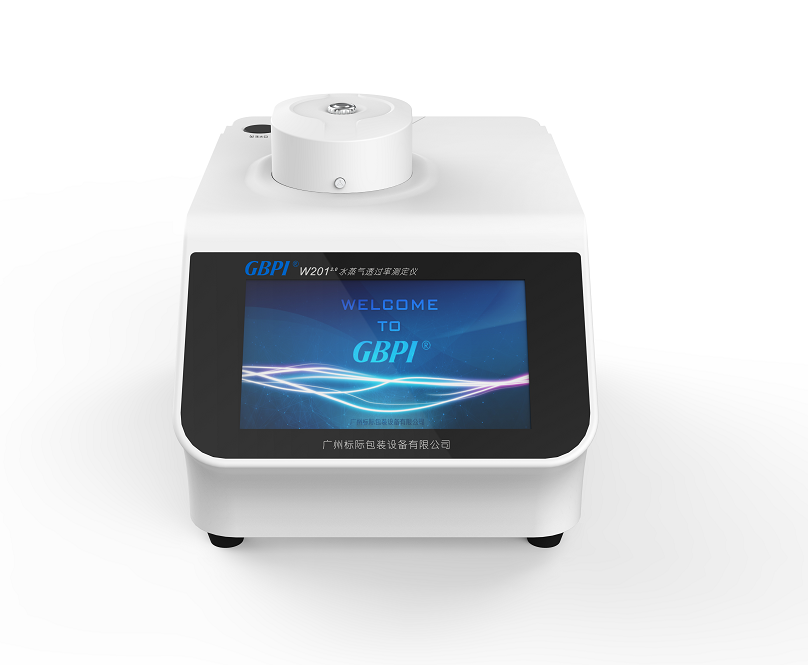

W201 2.0 Water Vapor Transmission Rate Tester

Product Introduction

This product is developed, designed and manufactured based on the electrolytic test principle, in accordance with GB/T 21529, ISO15106-3 and other standards. It is used to test the water vapor transmission rate of samples under set temperature and humidity conditions. Suitable for water vapor transmission performance testing of high-barrier materials used in LCD display devices, solar cells, chip packaging, pharmaceuticals, food and other fields.

Get a Free Quote Today

Test Principle

W201 2.0 Water Vapor Transmission Rate Tester adopts the electrolytic method principle. The pre-processed sample is fixed in the middle of the test chamber, dividing the chamber into high-humidity and low-humidity sides. Humidified nitrogen flows on one side of the film, and dry nitrogen (carrier gas) flows at a fixed rate on the other side. Due to the humidity gradient, water vapor permeates from the high-humidity side to the low-humidity side. The water vapor passing through the sample is carried by the flowing dry nitrogen to the electrolytic sensor, and parameters such as the water vapor transmission rate of the sample are obtained through the electrical signal output by the sensor.

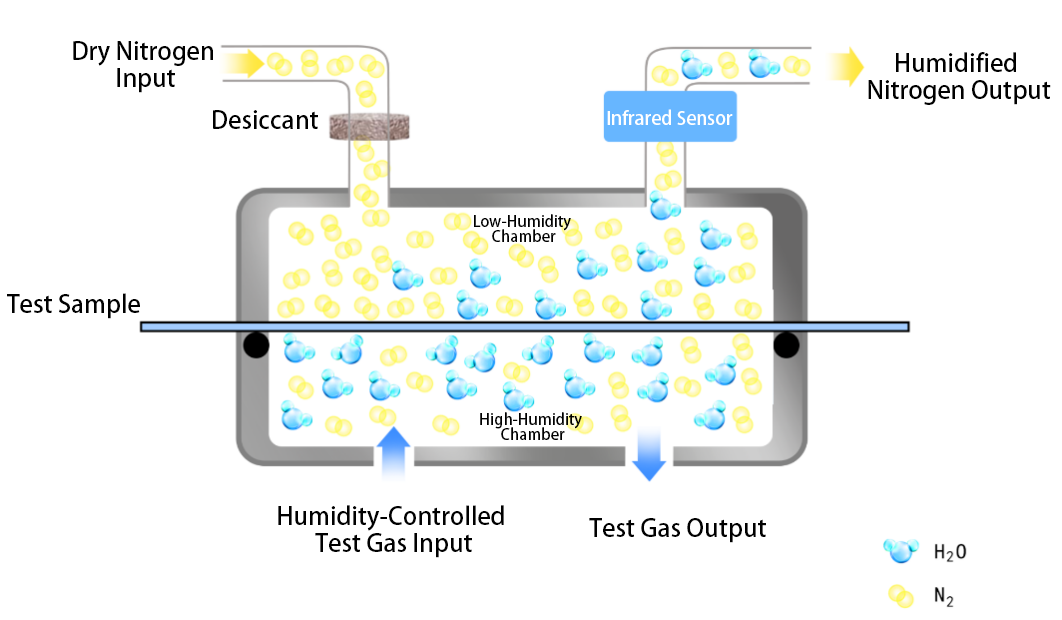

Electrolytic Method Working Principle Diagram:

Executive Standards

2025 Edition Chinese Pharmacopoeia <4010 Determination Method of Water Vapor Transmission Rate of Pharmaceutical Packaging Materials>, GB/T 21529-2008, ISO15106-3, DIN 53122-2, YBB00092003-2015, ASTM F3299, JIS K7129-3

Technical Parameters

Product Features

• Core Technology & Upgraded Operation: High sensitivity, precision and stability of the sensor, capable of testing high-barrier materials in electronics, photovoltaic, solar, display and other fields. Brand new pneumatic control system, automatic fixture locks sample with one key, convenient and labor-saving, with excellent sealing performance.
• Precise Temperature & Humidity Control: Temperature: Bi-directional automatic control via semiconductor cooling plate, accuracy ±0.1℃. Humidity: Dual-airflow (dry & wet) humidity control method, stable and high precision, accuracy ±1%RH.
• Strong Expandability: With optional accessories, it can test water vapor transmission rate of packages and containers.
• Excellent Appearance & Real-time Visual Curve: Built-in 11.6-inch high-resolution color touch screen, clear view, sensitive touch. Fully automatic operation, one-key test, automatic judgment and shutdown. Real-time display of 5 groups of curves (permeation rate-time, temp-time, humidity-time, concentration-time), with preview/hide function.
• Intelligent OS & Global Certification: Self-developed intelligent OS, modular interface, flexible parameter setting. Designed in accordance with GMP Computerized System, with audit trail and multi-level user authority, meeting pharmaceutical industry data traceability requirements. Customizable test reports, multiple data output formats, electronic signature and online report approval.
• Professional Calibration & Reliable Data: Our company possesses the National Standard Material Classification Certificate for water vapor transmission rate approved by the State Administration of Quality Supervision, Inspection and Quarantine (GBW(E)130543 / GBW(E)130544). Self-developed national standard materials are used for instrument calibration, ensuring accurate, universal and authoritative test data.

Application Fields

Packages & Containers

Custom fixtures for pharmaceutical BFS, ointment tubes, infusion tubes.

Chip Packaging Materials

FR-4, BT resin, PI, ABF film, Al₂O₃ ceramic, metal substrate testing.

Solar Cell Barrier Materials

Solar backsheet, butyl rubber, ALD Al₂O₃, POE, EVA film testing.

Display Field Barrier Materials

For LCD high-barrier materials such as epoxy resin film, SiNx passivation film, modified PET

Other Materials

Ultra-high barrier materials for pharmaceutical, food, daily chemical industries.
