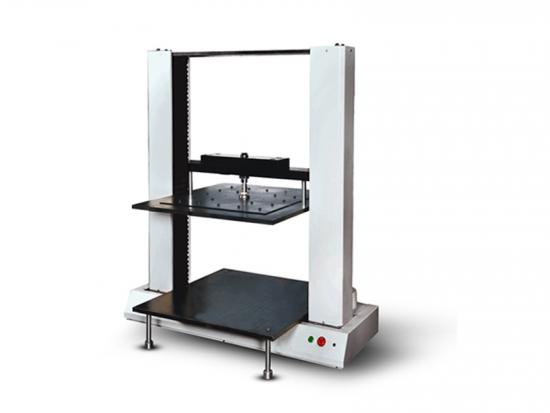

This machine is used to test the compression, deformation resistance and stacking of corrugated carton, honeycomb board box and so on.

  GBN200G Compression Resistance Tester Product Introduction Developed by GBPI R&D team, GBN200G compression resistance tester is a precision testing instrument developed in accordance with GB standards and market demands. It is professionally applied to test compression resistance performance and burst strength of various packaging bags. It serves as an ideal testing equipment for quality inspection, pharmaceutical inspection, scientific research, packaging, film, food, pharmaceutical, daily chemical and other industries. Get a Free Quote Today Implemented Standards GB/T10004-2008, QB/T 1871-1993, GB/T 4857.3-2008 Technical Parameters Pressure Range 50~700 kPa Air Pressure Range 0~0.7 MPa Pressure Accuracy ±0.8% Test Stroke 0~100 mm Compression Surface Size 280 mm×180 mm Air Source Interface Φ6 mm air pipe Number of Test Plates 1 set Overall Dimension 394 mm×355 mm×505 mm Weight 21 kg Power 100 W Power Supply AC 220 V, 50 Hz Product Features High-grade Configuration & Advanced Technology Adopt pneumatic pressure application, easy operation and simple testing process. After setting target pressure value, the instrument keeps constant pressure for compression. Adjustable pressure is available during testing process. Equipped with LCD screen to display all test parameters in real time. Application Fields Compression Resistance Test for Packaging Bags Burst Strength Test for Packaging Bags

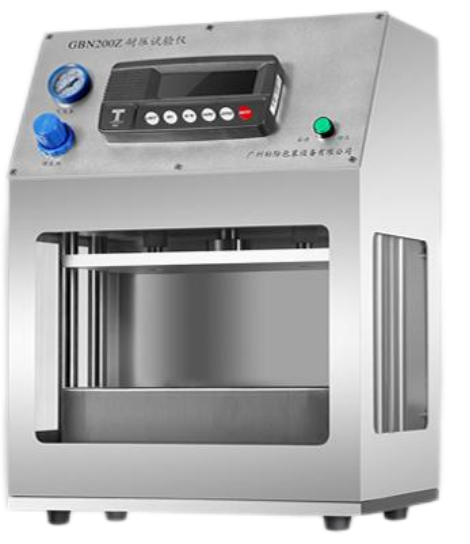

The pressure resistance tester GBN200Z is a precision equipment developed and manufactured by GBPI R&D team based on the requirements of GB and other standards and market demand, which is professionally used to test the pressure resistance performance and burst strength of various packaging bags. It is used in quality inspection, drug testing, scientific research, packaging, film, food, pharmaceutical, daily chemical and other industries.

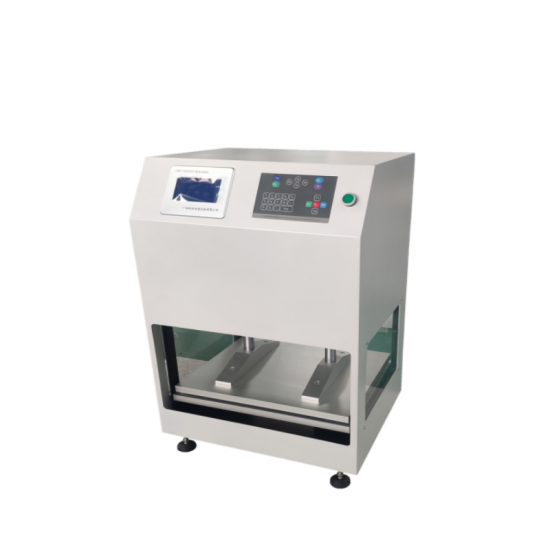

The Compression Tester GBN200A is professionally used to test the pressure resistance and burst resistance of various packaging bags. It can set the pressure and measure the deformation; set the deformation and measure the pressure resistance. It is an ideal testing equipment for quality inspection, drug inspection, scientific research, packaging, film, food, medicine, daily chemical and other industries.
