N530 Gas Permeability Tester used to test the gas (O2, N2, CO2 etc) transmission rate (GTR) of packaging materials, such as plastic film, composite film, aluminum-plated film, aluminum foil and so on
  • Gas Permeability Analyzer

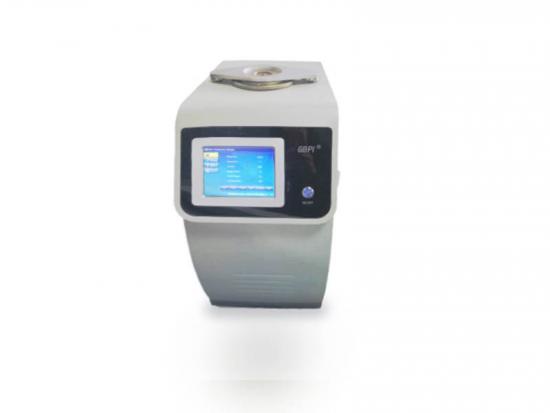

    N530 2.0 Gas Permeability Analyzer

    Introduction

    Based on the test principle of the differential pressure method, N530 is designed with reference to the GB/T 1038 standard and used to test the gas transmission rate (quantity) of film or sheet materials.

    Applied to;

    1) Plastic film, composite film, aluminum foil, aluminized film, etc.;

    2) Various sheets, plates, rubber, ceramics, etc.;

    3) Packaging containers, such as bottles, bags, bowls, etc.;

    4) Others applications, such as solar backplanes, liquid crystal display films, medical patches, etc.

    Used in quality inspection, drug inspection, scientific research, packaging, film, food, medicine, daily chemical products, electronic and other industries.



    Features

    1) Accurate and reliable data

          Our company has approved and issued by the "General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China". Gas Permeability Tester "National Standard Material Classification Certificate" and "National Standard Material" Manufacturing Measuring Instruments License (GBW(E)130541/ 2). Use national standard materials to calibrate and verify the instrument to ensure the accuracy, versatility and authority of the test data.

    2) Easy to operate

           Professional software with simple interface, easy to use and flexibly to set test process.

           Fully automatic operation, judge and stop automatically.

           Five sets of curves of temperature, upper cavity pressure, lower cavity pressure, pressure difference change, and penetration are displayed in real time. The curves with conceal function, support query function for background data.

           Professional test report, automatically generate and can be exported in PDF format.

    3) Advanced technology

           Automatic pressure maintaining technology, which automatically maintains the pressure difference on both sides of the sample (the pressure difference can be adjusted arbitrarily).

          Temperature control: water-cooled temperature control technology, automatic heating and cooling. No needing external temperature control device to avoid the disadvantages of large size and multiple failures. High measurement accuracy, accurate to 0.1.

    4) High test efficiency

           Three chambers are independent. Each chamber can be tested independently, can test three same or different samples, and issue three independent test reports to improve the effective test efficiency.

           Adapt to film testing with different barrier properties.

          Measurement precision up to 0.01 cm3/m2·24h·0.1MPa, can test high barrier materials, such as aluminum foil.

          By adding package-testing accessories, can test the gas permeability of bottles, bags, bowls and other containers.

    5) Authority management and data tracking

         The software is designed according to the requirements of  the computerized system in the new GMP appendix.

         Needing user name and password to log in.

         Users are divided into multiple levels of system administrators, instrument administrators, auditors, and operators.

         The system administrator can adjust the authority of various levels; like increase and decrease the system control items of a certain level.

         With audit trail function (test trail, log trail). Every data change is recorded to ensure the safety and integrity.

        6) Stable, reliable and easy to maintain

        Professional pressure sensor with high precision and good stability can run for a long time.

       The sensor has an automatic protection function that exceeds the range to avoid damage to important sensors when the instrument fails.

       Functional modular design for easy to maintain.



    Standard

     GB/T 1038-2000, ISO 2556-1974, ISO 15105-1-2007, ASTM D1434, JIS K7126-1-2006, YBB00082003-2015



    Technical Specification

     Items

     Technical Parameters

    Testing range

    0.0250000 cm3/m2·24h·0.1MPa

    Testing accuracy

    0.001 cm3/m2·24h·0.1MPa

    Testing temperature range

    1560

    Temperature precision

    ±0.1

    Vacuum degree

    20Pa

    Vacuum resolution

    0.01Pa

    Test pressure

    0.1MPa

    Test gas

    O2, CO2, N2 etc.

    Test area

    50.24 cm2

    Sample size

    Φ110 mm

    Sample thickness

    2mm

    Number of samples

    3 pcs

    Power

    750W

    Power supply

    AC 220V, 50Hz



    View More
  • Gas Permeability Analyzer
    N500 2.0 Gas Permeability Analyzer

    Introduction

    Based on the test principle of the differential pressure method, N530 is designed with reference to the GB/T 1038 standard and used to test the gas transmission rate (quantity) of film or sheet materials.

    Applied to;

    1) Plastic film, composite film, aluminum foil, aluminized film, etc.;

    2) Various sheets, plates, rubber, ceramics, etc.;

    3) Packaging containers, such as bottles, bags, bowls, etc.;

    4) Others applications, such as solar backplanes, liquid crystal display films, medical patches, etc.

    Used in quality inspection, drug inspection, scientific research, packaging, film, food, medicine, daily chemical products, electronic and other industries.


    Features

    1) Accurate and reliable data

    Our company has approved and issued by the "General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China". Gas Permeability Tester "National Standard Material Classification Certificate" and "National Standard Material" Manufacturing Measuring Instruments License (GBW(E)130541/ 2). Use national standard materials to calibrate and verify the instrument to ensure the accuracy, versatility and authority of the test data.

    2) Easy to operate

     Professional software with simple interface, easy to use and flexibly to set test process.

     Fully automatic operation, judge and stop automatically.

    Five sets of curves of temperature, upper cavity pressure, lower cavity pressure, pressure difference change, and penetration are displayed in real time. The curves with conceal function, support query function for background data.

     Professional test report, automatically generate and can be exported in PDF format.

    3) Advanced technology

    Automatic pressure maintaining technology, which automatically maintains the pressure difference on both sides of the sample (the pressure difference can be adjusted arbitrarily).

    Temperature control: water-cooled temperature control technology, automatic heating and cooling. No needing external temperature control device to avoid the disadvantages of large size and multiple failures. High measurement accuracy, accurate to 0.1.

    4) High test efficiency

     Single test cavity, fast data test rate.

     Adapt to film testing with different barrier properties.

    Measurement precision up to 0.01 cm3/m2·24h·0.1MPa, can test high barrier materials, such as aluminum foil.

     By adding package-testing accessories, can test the gas permeability of bottles, bags, bowls and other containers.

    5) Authority management and data tracking

    The software is designed according to the requirements of the computerized system in the new GMP appendix.

    Needing user name and password to log in.

    Users are divided into multiple levels of system administrators, instrument administrators, auditors, and operators.

    The system administrator can adjust the authority of various levels; like increase and decrease the system control items of a certain level.

    With audit trail function (test trail, log trail), every data change is recorded to ensure the safety and integrity.

    6) Stable, reliable and easy to maintain

    Professional pressure sensor with high precision, good stability, can run for a long time.

    The sensor has an automatic protection function that exceeds the range to avoid damage to important sensors when the instrument fails.

    Functional Modular design, easy to maintain.



    Standard

    GB/T 1038-2000, ISO 2556-1974, ISO 15105-1-2007, ASTM D1434, JIS K7126-1-2006, YBB00082003-2015


    Technical Specification

    Items

    Technical Parameters

     Testing range

    0.0250000 cm3/m2·24h·0.1MPa

    Testing accuracy

    0.001 cm3/m2·24h·0.1MPa

    Testing temperature range

    1560

    Temperature precision

    ±0.1

    Vacuum degree

    20Pa

    Vacuum resolution

    0.01Pa

    Test pressure

    0.1MPa

    Test gas

    O2, CO2, N2, etc

    Through area

    50.24 cm2

    Sample size

    Φ110 mm

    Sample thickness

    2mm

    Number of samples

    1 pc

    Power

    450W

    Power supply

    AC 220V, 50Hz



    View More
  • Air Transmission Tester
    Air Permeability Analyzer for Textile- N900

    N900 Air Permeability Analyzer to test the air permeability of many textile, including technical fabric, non-woven and breathable textile products.


    View More
  • gas transmision rate tester
    Gas Permeability Analyzer Differential pressure Method-N500

    N500 Gas Permeability Analyzer to test the gas (O2, N2, CO2 etc) transmission rate (GTR) of packaging materials, films and sheets materials


    View More
  • Battery Diaphragm Air Permeability Tester
    Battery Diaphragm Air Permeability Tester N600
    Battery Diaphragm Air Permeability Tester is to test the air permeability of the battery diaphragm. Gas permeability, which is mainly focusing on oxygen, should reach a certain range to meet the operating requirement.
    View More
