/HP-D1 Automatic Torque Tester Non-Destructive Cap Torque Tester

HP-D1 Automatic Torque Tester Non-Destructive Cap Torque Tester

The HP-D1 Automatic Torque Tester HP-D1 is innovated to test cap torque for detecting sealing performance of packaging containers, such as plastic bottles, liquid boxes, cans, etc.

  • Brand:

    GBPI
Inquiry now
Product Detail

Standards

ASTM D2063 Standard Test Methods for Measurement of Torque Retention for Packages with Continuous Thread Closures Using Non-Automated (Manual) Torque Testing Equipment

ASTM D3198 Testing of Child-resistant Closures - Mecmesin Torque Measurement

ASTM D3474 Standard Practice for Calibration and Use of Torque Meters Used in Packaging Applications









Technical Specifications

Item

Parameter

Sensor

10 N·m(standard)

20 N·m and 40 N·m(optional)

Accuracy of Torque

±0.5% of displayed value(10%-100% of the sensor range)

±0.05% FS(0%-10% of the sensor range)

Resolution of Torque

0.0001 N·m

Automatic Rotating Speed

10 rounds/min(adjustable)

Clamp Force

Adjustable according to the tested material

Container Diameter

Ф5 mm~Ф200 mm(standard)


Container Height

20 mm410 mm

Cap Diameter

Φ5 mm~Φ84 mm

Unit

mN·mN·cmN·mkgf·cmkgf·cmozf·inlbf·inlbf·ft

Clamping Mode

Pneumatic

Air Source Pressure

0.7 MPa(101.5 psi)

Test Number

010 pcs

Power Supply

220 V 50 Hz

Machine Size

582 mm(L)×360 mm(W)×1036 mm(H)

Machine Net Weight

33 kg






Send A Message

Leave us a message, we will get back to you ASAP.

Related Products
torque tester Packaging instruments drink beverage torque tester HP-100
Packaging instruments drink beverage torque tester is for testing the screwing locking strength and tightness, and unscrewing strength, of the caps of packaging bottles, tubes, spouts and so on.
Automatic torque meters GBPI ASTM D3198 Automatic Torque Tester
The torque tester is professionally suitable for testing the torque value of the caps of packaging products such as bottles, beverage bottles, mineral water bottles, and milk bottles. It is an ideal configuration instrument for offline or online testing of production units in the packaging industry.
Cap Torque Analyzers Torque Testing Equipment HP-200
Torque tester HP-200 is a testing instrument for bottle cap locking and opening based on ASTM and GB standard requirements and market demand developed and manufactured by GBPI R&D team. For bottle packaging products, nozzle packaging products and tube packaging products, the size of the cap opening torque is one of the key control parameters, which has a great impact on the intermediate transportation and final consumption of the product. It is suitable for measuring the size of the locking and opening torque of bottle products, and is an indispensable test equipment in the production process.
COF Testing Flexible Packaging Film Coefficient of Friction Tester COF Testing
The Coefficient of Friction Tester equipment performs tests to most of the recognised international test standards including IS0 8295 and ASTM 1894-78.
oxygen permeability tester Oxygen Permeability Analyzer Equal pressure method-Y110
Y110 Oxygen Permeability Analyzer to test the oxygen transmission rate (OTR) of films or sheets materials.
Professional GBPI Spectrodensitometer supplier GBPI Spectrodensitometer
GBPI launched new model  Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard  ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control; especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it’s able to customize single aperture Φ2mm, Φ4mm, Φ8mm. Under the 45/0 geometric optical illumination and the testing conditions of M0, M1, M2, M3, stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters. Product Features 1.Perfect combination of the beautiful appearance and the ergonomic structure design; 2.Combined LED light sources with long life and low power consumption, including UV light; 3.Switchable apertures: Φ2/4/8mm, adapt to more samples; 4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample; 5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.; 6.Two standard observer angles: 2/10, multiple light source modes and color systems; 7.USB mode is widely used. 8.Large-capacity storage space, over 10,000 test data; 9.Especially suitable for process control and quality control of printing plants; 10. PC software has powerful function expansion.       Model YD5010 Measurement Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15 Features Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm. Light Source Combined LED Light, UV Light Spectral separation device Concave Grating Detector 256 Image Element Double Array CMOS Image Sensor Wavelength Range 400~700nm Wavelength Pitch 10nm Half Bandwidth 10nm Measurement Conditions Compliance with ISO 13655 measurement conditions; M0 (CIE Light Source A) M1 (CIE Light Source D50) M2 (Excluding UV light source) M3 (M2+Polarized light filter) Density Standards ISO Status A, E, I, T Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level Measurement aperture Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional Color Spaces CIE LAB,XYZ,Yxy,LCh Color Difference Formula ΔE*ab,ΔE*94,ΔE*00 Other Colorimetric Index / Observer Angle 2°/10° Illuminant A,C,D50,D55,D65,D75,F2,F7,F11,F12 Measurement Time About 1.5s Repeatability Density: Within 0.01 D   Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3 Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3 Measurement mode Single Measurement, Average Measurement(2-99) Size(L*W*H) 184*77*105mm Weight About 600g Power source Li-ion battery. 5000 measurements within 8 hours Illuminant Life Span 5 years, more than 3 million times measurements Display 3.5-inch TFT color LCD, Capacitive Touch Screen Interface USB, Data memory 10000 pcs Language Simplified Chinese, English, Traditional Chinese Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)) Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate Optional Accessory Micro Printer
Professional Vacuum Decay Leak Detection Tester Package Leaking Test Machine Seal Integrity Testing Equipment supplier Vacuum Decay Leak Detection Tester Package Leaking Test Machine Seal Integrity Testing Equipment
GBM-L1 Vacuum Decay Leak Detection Tester is used to perform micro leakage detection on finished packaging by vacuum decay method. It is suitable for leak detection for the integrity of various packaging containers and applied to ampoules, vials, HDPE bottles, prefilled needles and other pharmaceutical packaging, food packaging, and chemical industry packaging. It is advantageous in its’ non-destructive, non-damage and sample-free preparing characters.
Professional Xenon arc lamp aging test chamber GB-OXD-15P supplier Xenon arc lamp aging test chamber GB-OXD-15P
1.Profile Xenon lamp aging test chamber simulates the full spectrum lamp with Xenon arc lamp to reappear the destructive wave. It serves for the environmental simulation and accelerated test for research and development, product development and quality control. Besides, the chamber also applies to the choice of new material, weathering test after composition of material and improvement for the current material. It simulate different environment, and show the material changes under the explosion of sunlight.   The chamber meets the standard: GB/T16585-1996 , GB14522-93 , GB/T16422.3-97, ASTM D2565 and so on. The Chamber is to determine the color fastness, aging resistance of textiles, plastics, coatings, rubber products or other materials by objecting to the simulated conditions of nature weather (sun, rain, temperature and humidity, etc.). Technical parameters 2.Material of construction u Full spectrum lamp u Optional filter system u Water spraying function u Humidity control u Temp. control system in the chamber u Sample fixed hold of irregular shape u USA imported xenon arc lamp u Easy installation and operation, seldom daily maintainance. u Service life time deepens on the irradiance level, usually 1600hrs. It’s easy to replace the lamp, with filter of long service life time to ensure the necessary spectrum. 3.Technical parameters Model No., equipment name GB-OXD-15P Xenon aging test chamber Interior sizes   W500×D500×H600mm  Exterior sizes W1050×D1050×H1750mm (or so) Temperature range 0℃~80℃ Controller imported programmable 7inch touch screen Machine components material inner and outer 304# stainless steel Sample holder Aluminum alloy frame base Protection device residual-current circuit breaker (RCCB) to control the warning for loop overload, thermal protection and water shortage protection. Temp. deflection ±2℃  (without lighting) Humidity range 30%~98%R.H Humid. deflection ±2.5%R.H(Humid.≥75%R.H); ±3%R.H(Humid.≤75%R.H) without lighting Light source imported full spectrum xenon arc lamp(average useful life 1600hrs) Raining time 1~9999min (adjustable) Raining period 1~240min, interval(cut)adjustable lamp power Test period for Temp., irradiation, condensation, spray can be adjustable Lamp 1.8KW Wave length range 290-800nm heating power (or so) 4.0KW humidification (or so) 2.0KW Light irradiance 1200w/m2 Distance between arc center and sample holder: 350~380mm Revolving speed of sample holder ≥1r/min  water spray period a. spray time: 0~99h59min (Continuing or adjustable) b. stop time: 0~99h59min, (Continuing or adjustable)   lighting time Continuing programming control available black panel temp. 85±3℃ cooling method Mechanical wind cooling; Room temp. less than 26℃ is recommend, relative humid: ≤85%R.H; humid. and temp. tested after 2 hours under idle condition. 4.Temperature & humidity running control system controller imported programmable 7inch touch screen precision range set precision: temp. ±0.1℃, humid: ±2%R.H, indicated precision: temp.±0.1℃,humid.: ±1%R.H temp. & humid. sensor Platinum Resistance(PT100Ω/MV) black panel temp. double-metal black panel temp. thermometer water-supplying system auto-control humidication water-supplying, Xenon arc lamp with cycling cooling water circulation system low noise heat-resistance conditioning motor, multi-blade centrifugal wind wheel control system mainly consists of operation panel, central controller, kinds of key-pressing sw., status indicating lamp, excution electric device etc.. 5.Structure section of machine body The chamber consists of several section: chamber body, control system, refrigeration system, heating system, humidation system, wind system, raining system, lighting system and so on. Chamber body a. With integrated structure, the chamber consists of up left part as working room, up right part as electric controller which is convenient to control, down part as compressor cooling group, sample holder rotation device, Xenon lamp condensation water box, water pump and other executive devices. b. Inner wall of chamber adopts international SUS304# material. c. Temp. insulation material is polyurethane foam and ultra-fine fibre glass, with good temp. insulation result, no frost and condensation on the external surface of chamber. d. condensate water outfall set at the bottom of chamber e. Environmental heat-resistance silicon sealing tape as the material of door frame. f. Viewing window with eye-protective film on its surface to protect eyes from being injured by Xenon lamp. external chamber body a. Seal of door adopts the double-layer of refined silicone rubber with reliable sealing effect and no aging or hardening phenomenon under high or low temperature. b. Single door (embedded handle); c. Viewing window, antifrost device and lamp equipped on the door viewing window Size:25 cm W × 30 cm H;equipped with Anti-radiation hollow glass 6.Electric control section of chamber a. As the core part of chamber b. Air pressure switch as the main switch to control the main circuit; c. Safety measures for electric section: it warns and cut electricity automatically after tested the action from following protection devices: a) overheat protection in working room b) lockage of phase, leakage protection c) overcurrent protection of motor d) overpressure/overload protection of cooling machine e) short out/overload protection of heater, humidifer f) fusing protection of fuse 7.Working section of chamber Condensation section of compressor. a.Cooling system: as the core part of cooling system, we adopt one set of compressor of Tecumseh from France in this case to ensure the cooling requirement in the working room. b.For adjustment technology and design of cooling system, we take an efficiency processing way to ensure the adjustment for the cooling amount and consumption of cooling system under the normal running, to make the failure rate down to the economical statue. c.Cooling evaporator: it locates in interlayer at one side of chamber which ventilate by force from blast motor to exchange heat fast. d.Cooling method of cooling system: forced air cooling Cooling refrigerant:Environmental R404a; Heating system a. Heating method: heating directly in the chamber; b. Military level stainless steel heating tube used, with fast and stable heating to keep temperature in the working room from rapid change. It with corrosion resistance, anti-high-low temperature, no leakage and other advantages. c. With SSR (solid relay)output control, without noise, reliable working, long service life time, fast switching, low interference from outside, and easy operation etc.. Rain system.   it consists of nozzle, solenoid valve, water-supplying and connecting pipe. Lighting system. It consists of xenon lamp, lamp cover, lamp contactor and other controlling parts. Energy compensation is got by adjusting samples distance, pressure and current. Wind system  It locates in the interlayer at the back of chamber, there are heater, fan blade, evaporator, PT100 temperature samples sensor etc.. when wind machine running, the air is intaken to the channel from working room, and blow out from the bottom after cooled; the air exchanged in the working room with samples is intaken again to the channel and mix; after several circulation, it will reach the purposed temperature, and ensure the high index of temp. and humid in the chamber at the same time. Cooling dehumidification system take the compressor of world brand Tecumseh from France to keep constant temperature, decrease the humidity in the working room and cool the xenon lamp. Humidification Steam generator: to generate steam from water Water level control: control the water inlet by solenoid valve, and water level by liquid level switch to provide the signal for water-supply and warning. Air circulation section Cycling channel and winding machine inside the chamber, it uses the high efficiency cooling machine and energy adjusting system, efficiency heat exchange to reach the aim of temperature change, which also improves the airflow and heat exchange between airflow, heating and humidification, as a result, it improves the humidity uniformity in the working room. 8. Enclosured files: operation manual, warranty card 9. Machine running requirements Temp. 5℃~+32℃ Humidity ≤85% Power supply AC220(±10%)V/50HZ    10. Core components parts Remark: replacement of some small parts of the same quality is possible because of material shortage.
water vapor transmission rate WVTR MVTR Water Vapor Permeability Analyzer-W405 L
Infrared method water vapor transmission rate tester W405L is a high-end precision packaging material testing instrument, newly developed and upgraded by GBPI Research and Development Team based on ASTM, GB standard requirements and market demand. It is used to test the water vapor transmission rate of samples under set temperature and humidity conditions. It is suitable for the water vapor transmission rate performance test of films, sheets, papers, packages and various materials in the fields of food, medicine, medical equipment, daily chemistry, photovoltaic electronics, etc.
Oxygen Permeability Analyzer Y310 2.0 Gas Analysis Equipment Oxygen Permeability Analyzer
This product is based on the test principle of the Coulomb oxygen analysis sensor and is designed and manufactured with reference to the ASTM D 3985 standard. It is used to determine the oxygen transmission rate (quantity) of film or sheet materials.

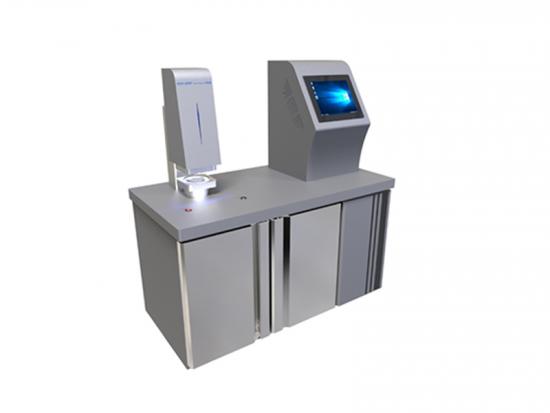

 Face Mask Particulate Filtration Efficiency Tester Face Mask Particulate Filtration Efficiency Tester
