Product introduction:

       DSC is the company's highest precision differential. The sensor is made of imported e-couple with high sensitivity.Signal acquisition circuit shielding protection, strong anti-interference, high baseline stability.

The DSC is a touch screen type, which can be used for glass transition temperature test, phase transition test, melting and enthalpy test, product stability and oxidation induction period test.Wide range of application

Technical parameters:

1. Temperature range:Room temperature ~550 ℃ air cooling

2. Temperature resolution: 0.01℃

3. Temperature fluctuation:±0.1℃

4. Temperature repeatability:±0.1℃

5. Heating rate: 0.1～100℃/min

6. Constant temperature time: program setting ≤ 24h

7. Temperature control mode: heating, constant temperature,

8. DSC range: 0～±600mW

9. DSC resolution: 0.01uW

10. DSC accuracy: 0.001mW

11. Working power supply: Ac220vv50 Hz or customized

12. Atmosphere control gas: nitrogen, oxygen (instrument automatic switch)

13. Gas flow: 0-300mllmin

14. Gas pressure: 0.2MPa

15. Display mode: 24 bit color, 7 inch LCD touch screen display

16. Data interface: standard USB interface

17. Parameter standard: With reference materials (indium, tin), users can adjust the temperature by themselves

18. The upper computer is a three in one operation software, which is also suitable for thermogravimetry and synchronous instruments.

19. The instrument has several groups of thermocouples, one for sample temperature, one for furnace body temperature and one for internal environment temperature

Technical features:

1. Industrial level 7-inch touch screen, display information rich.

2. New metal furnace structure, better baseline and higher precision.Indirect conduction mode is adopted in heating, which has high uniformity and stability, and reduces pulse radiation, which is better than traditional heating mode.

3. USB communication interface, strong versatility, reliable communication, support self recovery connection function.

4. Automatic switching of two-way atmosphere flow, fast switching speed and short stable time.At the same time, a protective gas input is added.

5. The software is simple and easy to operate.

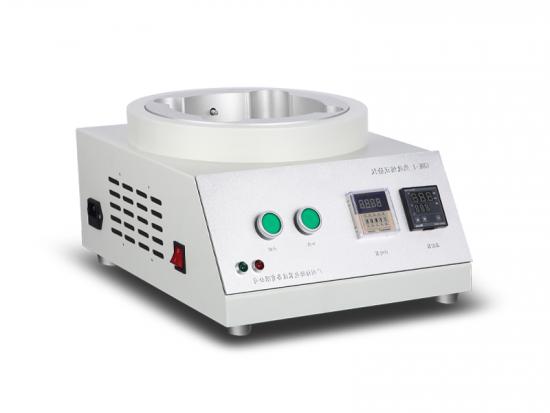

Film Heat Shrinkage Tester tests various heat shrinkage properties for the film according to the principle of air heating (air bath). Suitable for heat shrinkable films which produced with polyethylene, ethylene copolymers and their mixtures, such as beverage labels, bottled bundle packaging, sausage shrinkage packaging, outer film of daily chemical products, outer film of cigarette boxes, etc.

It is a device that can accurately and quantitatively measure the thermal shrinkage force, cold shrinkage force, shrinkage rate, shrinkage time and other properties of plastic films during thermal shrinkage.

The test results have a variety of data, which can evaluate the heat shrinkage performance of the film from different aspects, contribute to the research and development of heat shrinkable films of different materials, ensure the stability of heat shrinkable films performance of various materials, and meet the requirements of various heat shrinkable films in various industries.

GBPI checks the key thermal shrinkage properties of film products for you. The traditional oven or oil bath equipment only detects the heat shrinkage rate of the heat shrinkable film, and the test results are relatively limited. Our Film Heat Shrinkage Tester GBK-D1 can evaluate the thermal shrinkage performance of films from various data. It is easy to operate, environmentally friendly, with high data accuracy and more comprehensive test results to meet your requirements.

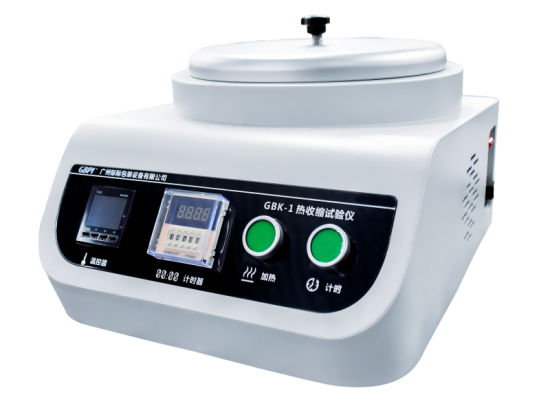

GBK-1 Heat Shrinkage Tester is for testing the heating shrinkage of packaging films submerged in liquid in different temperatures.
