GBK-D1 Film Thermal Shrink Performance Tester
Product Introduction
The film thermal shrink performance tester adopts air heating (air bath) principle to test various thermal shrinkage properties of films. It is applicable to thermal shrink films made of polyethylene, ethylene copolymers and their mixtures, including beverage labels, bottle bundling films, sausage shrink packaging films, daily chemical outer wrapping films, cigarette box outer films, etc.
This equipment can quantitatively measure thermal shrinkage force, cold shrinkage force, shrinkage rate, shrinkage time and other properties of plastic films during thermal shrinkage. Multiple groups of test data can evaluate film shrinkage performance from multiple dimensions, support R&D of various shrink films, stabilize product performance and satisfy the demands of all packaging industries.
GBPI provides reliable testing solutions for key thermal shrinkage indicators of film products. Traditional ovens or oil bath devices can only test shrinkage rate with limited test results. Our GBK-D1 thermal shrink tester collects comprehensive multi-dimensional data for performance evaluation, featuring easy operation, eco-friendly design, high data accuracy and complete test indicators to meet market requirements.
Get QuotationTest Principle
This tester uses air heating principle. The test specimen is connected to tension sensor and displacement sensor. After reaching the maximum shrinkage force, the sample is cooled under constant ambient temperature of 23℃±2℃. The instrument continuously records reference temperature, shrinkage force and displacement, and the recorded data can be used to confirm the optimal shrinkage processing conditions of films.

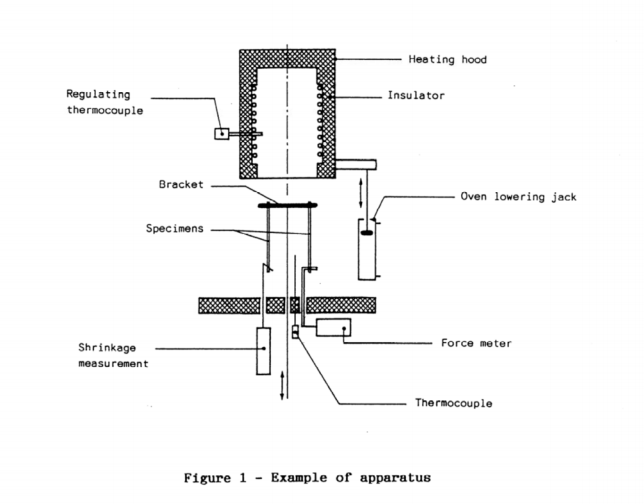

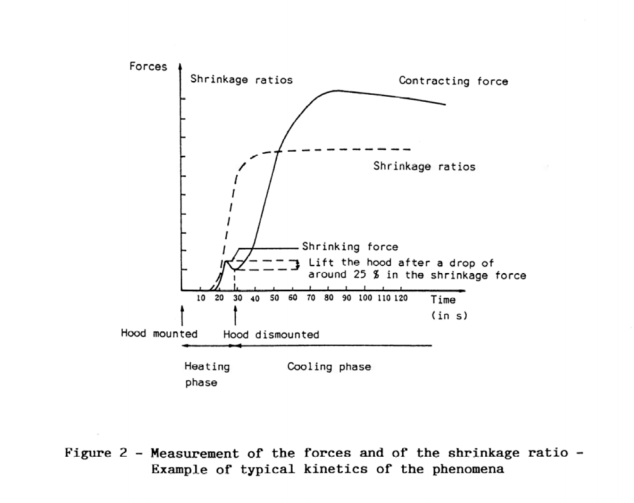

See Figure 1 for instrument internal structure diagram, and Figure 2 for force & shrinkage rate measurement curve.
Compliant Test Standards
GB/T 34848-2017, ISO 14616-1997, DIN 53369-1976
Technical Specifications
| Sensor Capacity | 10 N |
| Shrinkage Force Accuracy | ±0.5% of reading (10%~100% FS) ±0.05%FS (0%~10% FS) |
| Display Resolution | 0.001 N |
| Displacement Measuring Range | 0.1～70 mm |
| Displacement Sensor Accuracy | ±0.07 mm |
| Shrinkage Rate Measuring Range | 0.1%~95% |
| Operating Temperature Range | Ambient ~ 250℃ |
| Temperature Fluctuation | ±0.2℃ |
| Temperature Precision | ±0.5℃ (single-point calibration) |
| Test Station Quantity | 1 group (2 stations) |
| Specimen Dimension | 110 mm×15 mm (standard required size) |
| Overall Dimension | 480 mm(L)×400 mm(W)×630 mm(H) |
| Power Supply | 220VAC±10% 50Hz / 120VAC±10% 60Hz |
| Net Weight | 26 kg |
| Rated Power | 800W |
Product Advantages
• Adopts laser measurement technology for non-contact precise detection.
• High-precision force sensor and displacement sensor accurately measure all thermal shrinkage parameters of test samples.
• Automatic temperature control system with intelligent digital PID algorithm.
• Real-time display of thermal shrink force, cold shrink force, shrinkage rate, upper and lower cavity temperature during testing.
• Embedded operating system with excellent safety performance.
• Multi-level user access control, supports GMP compliance, test record audit and full traceability functions.
• Compatible with DSM laboratory data management system, supports remote equipment maintenance and system upgrade.
