packaging testing equipment Water Vapor Permeation Tester
products
  • migration testing in food packaging

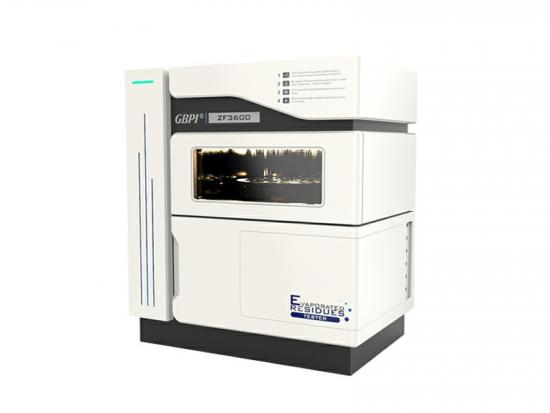

    GBPI ZF3600 Migration Testing equipemnent In Food Plastic Packaging

    Application

    ZF3600 Full-automatic Total Migration Tester is applied to determinate the dissolution amount of packaging materials in different simulant soaking solutions.



    1) Tableware, cans, food packaging films, tubes, etc.

    2) Made from polyethylene (PE), polystyrene (PS), polypropylene (PP) or chlorinated polyvinyl chloride (CPVC).



    Evaporate and dry the soaking solutions to obtain residues migrated from the specimen. The residues analysis and weighing refer to dissolution indexes in application requirements of packaging products.



    Standard

     GB 31604.8-2016, GB/T 9740-2008, GB/T 5009.156-2016, GB/T 5009.156-2016, YBB00342002-2015, YBB00102005-2015, YBB00082002-2015.



    Specifications



    Item



    Technical parameters

    Test range

    0~80g

    Resolution

    0.1mg

    Scale parameters

    0~220g

    Constant weight deviation

    0.3mg

    Temperature control range of water bath

    Room temperature~100℃

    Temperature control range of heating chamber

    Room temperature~125℃

    Temperature precision

    ±0.5℃

    Quantity of samples

    1-36 pcs (with independent test results)

    Evaporating dish volume

    0-75mL

    Air source interface size

    Φ8 mm

    Dimensions

    L×W×H:1300mm*850mm*1450mm

    Power

    220V,50Hz

    Rated power

    5500W




    View More
  • migration tester

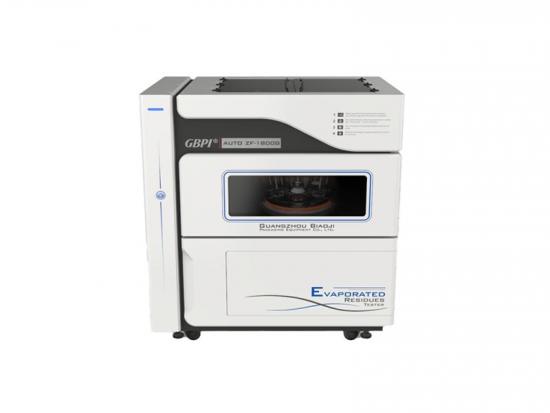

    ZF1800A Full-automatic Total Migration Tester

    full-automatic migration tester is specialized for testing dissolved non-volatile-matter of materials after soaked in specific solution.

    View More
