GBN200G Compression Resistance Test Machine For Plastic Bags

GBN200G Compression Tester is used to test the pressure resistance and blasting strength of various packaging bags, used in quality inspection, drug testing, scientific research, packaging, film, food, medicine, daily chemicals and other industries.

  • Brand:

    GBPI
  • Item NO.:

    GBN200G
Inquiry now
Product Detail

Reference standard

ASTMD642,  ASTM D4169, TAPPIT804, ISO 2872, ISO 12048, JISZ0212, GB/T16491, GB4857.16


Specification

Item

Technical Parameters

Pressure range

50~700 kpa


Air Pressure range

0-0.7MPa

Pressure accuracy

±0.8%

Test distance

0~100mm

        Compression surface size

280×180mm

Air connection

Φ6mm Air pipe

Test Disc

1

Dimensions

394×355×475mm

Weight

28.8kg

Power

100W

Power supply

AC 220V, 50Hz



Product features

Pneumatic pressure is easy to operate and the process is simple.

Set the pressure value, and the instrument will keep the set value for compression.

The pressure can be adjusted during compression.

LCD , real-time display of parameters


Application



Pressure resistance

It is suitable for pressure resistance testing of various packaging bags.

Burst resistance

It is suitable for burst strength testing of various packaging bags.


Send A Message

Leave us a message, we will get back to you ASAP.

Related Products
Compression Resistance Tester Compression Tester for Bag Packaging GBN200A
The Compression Tester GBN200A is professionally used to test the pressure resistance and burst resistance of various packaging bags. It can set the pressure and measure the deformation; set the deformation and measure the pressure resistance. It is an ideal testing equipment for quality inspection, drug inspection, scientific research, packaging, film, food, medicine, daily chemical and other industries.
Compression Strength Tester BCT (Box Compression Test) Packaging Burst Compression Strength Tester GBN2000Z
This machine is used to test the compression, deformation resistance and stacking of corrugated carton, honeycomb board box and so on.

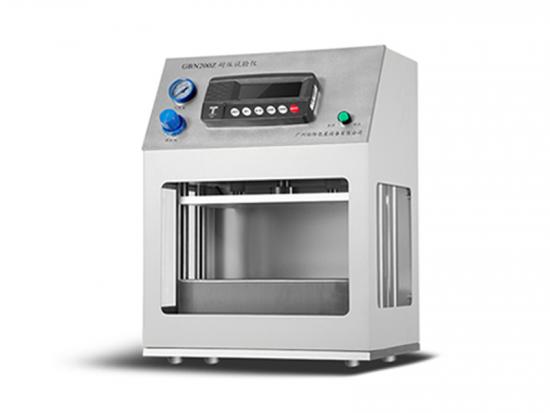

Compression Resistance Tester Compression Tester for Bag Packaging GBN200Z
