GX-C3S Printing Ink Rub Resistance Tester Product Introduction Designed per international standards, this tester detects abrasion resistance of printing ink layers and surface coatings. It accurately evaluates print rub resistance, ink adhesion and coating hardness to support quality control and material optimization. Test Principle Rub printed samples with clean offset paper under fixed load. After preset rub cycles, test specimen density and compare with initial value to calculate ink abrasion resistance. Applicable Standards ASTM D5264, TAPPI T830 Technical Parameters Item Specification Rubbing Load 8.9 N (2lb); 17.8 N (4lb) Rubbing Speed 10-200 cpm Rub Block 1(8.9N) 910g±10g Rub Block 2(17.8N) 1810g±10g Rub Mode Arc reciprocating motion Rub Cycles 1～999999 Specimen Quantity 2 pcs Overall Dimension 570mm×400mm×265mm(L×W×H) Power 600W Power Supply AC220V 50Hz Net Weight 24.5kg Product Features Equipped with color touch screen for easy parameter setting and operation. Fully automatic running, one-key start & auto stop for simple operation. High-precision ball screw ensures stable running, long service life and energy saving. High testing accuracy for reliable experimental results. Standard-compliant structure guarantees accurate test data. Built-in printer to output test reports directly. Arc reciprocating rub simulates real complex friction condition of practical usage. Adjustable rubbing cycles and rubbing speed. Overload protection: auto stop when load exceeds preset threshold. Application Fields Applied for printing packaging, plastic coating, surface finish industries, used to check ink layer wear and surface coating abrasion performance of printed products.

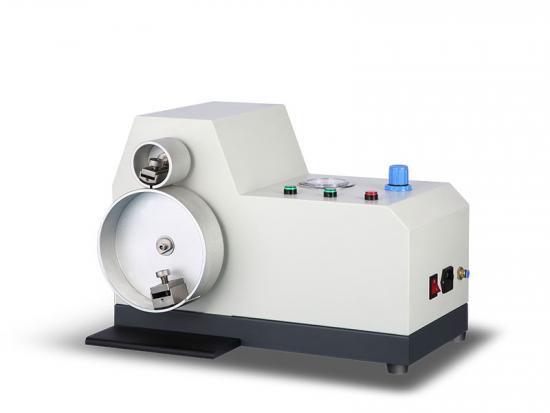

GX-B3 type disc peeling tester is used for testing the adhesion fastness of printing ink layer of plastic film and cellophane decorative printed materials (including composite film printed materials) produced by gravure printing process. It can also be used to test the adhesion state of the surface layer formed by vacuum coating, surface coating, compounding and other related processes.

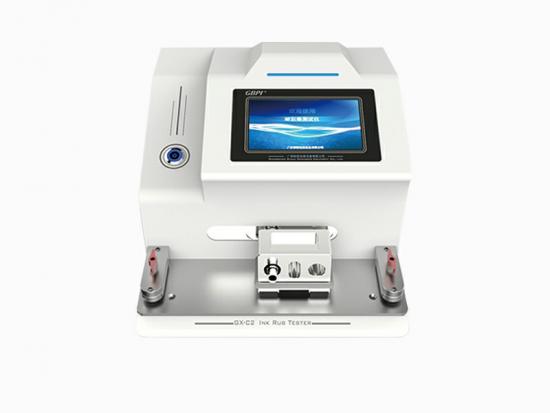

GX-C2 Rub Tester is suitable for testing the abrasion resistance of printing ink layer of printed matter, the abrasion resistance of PS plate photosensitive layer and the abrasion resistance of surface coating of related products. It can effectively analyze the problems of poor rub resistance of printed matter, peeling of ink layer film, low printing endurance of PS version and poor coating hardness of other products.

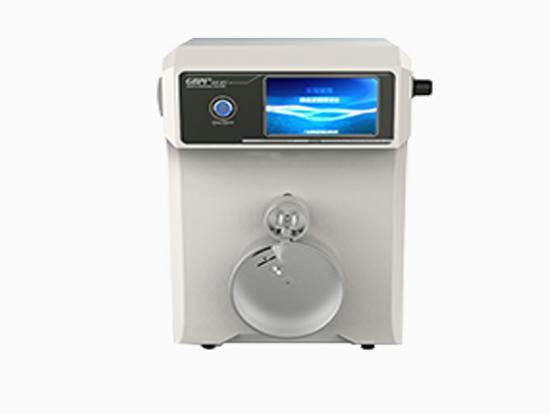

To test the ink layer bonding strength of printed (intaglio) plastic film, composite film, cellophane and so on; test the layer bonding status formed by vacuum coating, surface coating and composite technology etc. It meets the GB/T 7707-2008 standard The intaglio prints for decorating.

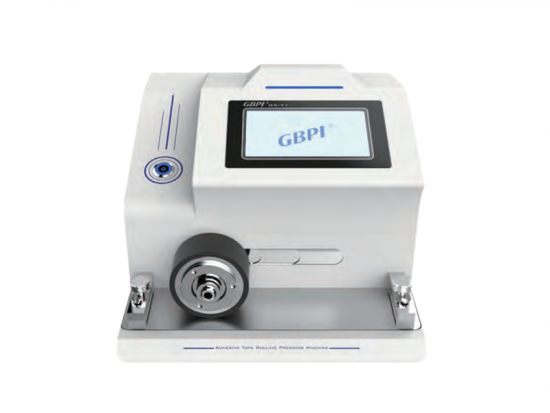

The Adhesive Tape Roller GX-Y2 is suitable for plastic film and cellophane decorative prints (including composite film prints) produced by gravure printing process. It is also used to test the adhesion state of the surface layer formed by vacuum coating, surface coating, compounding and other related processes.
