- Packaging lab equipment high accuracy barrier film water vapor permeability analyzer moisture vapour transmission rate
Application
W413 2.0 water vapor permeability tester is designed to test the water vapor transmission rate (WVTR) of films or sheets materials.
- Water vapor permeability tester
- moisture vapour transmission rate
- water moisture tester
- packaging lab equipment
- barrier film water vapor permeability analyzer
- water vapor transmission rate tester
Tags :
- N500 2.0 Gas Permeability Analyzer
Introduction
Based on the test principle of the differential pressure method, N530 is designed with reference to the GB/T 1038 standard and used to test the gas transmission rate (quantity) of film or sheet materials.
- JIS K7126-1-2006, YBB00082003-2015
- permeability analyzer
- Gas Permeability Analyzer
- ISO 15105-1-2007, ASTM D1434
- flexible packaging tester
- oxygen permeation tester
Tags :
- N530 L Gas Permeability AnalyzerView More
Introduction
Based on the test principle of the differential pressure method, N530L is designed with reference to the GB/T 1038 standard and used to test the gas transmission rate (quantity) of film or sheet materials.
- Intelligent Gravimetric Method WVTR Tester W301 2.0
Application
W301 2.0 water vapor permeability analyzer is designed to test the water vapor transmission rate (WVTR) of films or sheets materials with the principle of Gravimetric Method.
- water vapour permeability formula
- wvtr tester price
- wvtr machine
- Water Vapor Permeability Analyzer
- WVTR Tester
Tags :
- Y310 2.0 Gas Analysis Equipment Oxygen Permeability AnalyzerView More
This product is based on the test principle of the Coulomb oxygen analysis sensor and is designed and manufactured with reference to the ASTM D 3985 standard. It is used to determine the oxygen transmission rate (quantity) of film or sheet materials.
- Water Vapor Permeability Analyzer AUTO W809
Water Vapor Permeability Analyzer -AUTO W809 is designed and manufactured in accordance with ASTM E96, GB/T 1037 standards, and provides a wide range of high-efficiency water vapor transmission rate testing for low, medium and high water vapor barrier materials with the principle of Gravimetric Method.
- astm water vapor permeability
- water vapor permeability unit
- water vapor permeability for different packaging films
Tags :
- Y110 L Oxygen Permeability Analyzer - Coulometric Sensor MethodView More
This product is based on the testing principle of coulometric oxygen sensor, designed and manufactured with reference to ASTM D3985 and other standards. It adopts high-precision imported oxygen sensor with high testing accuracy. It is suitable for oxygen transmission performance testing of films, sheets, papers, packaging and related materials in the fields of food, pharmaceuticals, medical devices, daily chemicals, photovoltaic electronics, etc. It provides wide range and high efficiency oxygen transmission rate testing for high, medium and low oxygen barrier materials.
- Oxygen Permeability Analyzer - Coulometric Sensor MethodView More
This product is based on the testing principle of the coulometric sensor method testing Oxygen, and is designed and manufactured with reference to ASTM D3985 and other standards. Adopting high-precision imported oxygen sensor, high test accuracy,it is suitable for oxygen transmission performance testing of films, sheets, paper, packaging and related materials in the fields of food, medicine, medical equipment, daily chemicals, photovoltaic electronics, etc., and provides a wide range and high-efficiency oxygen transmission rate detection for high, medium and low oxygen barrier materials.
- Water Vapor Permeability Analyzer-W405 L
Infrared method water vapor transmission rate tester W405L is a high-end precision packaging material testing instrument, newly developed and upgraded by GBPI Research and Development Team based on ASTM, GB standard requirements and market demand. It is used to test the water vapor transmission rate of samples under set temperature and humidity conditions. It is suitable for the water vapor transmission rate performance test of films, sheets, papers, packages and various materials in the fields of food, medicine, medical equipment, daily chemistry, photovoltaic electronics, etc.
- water vapor transmission rate
- Moisture vapor transmission rate
- water vapor permeability
- water vapor permeability analyzer
- WVTR tester
- MVTR tester
Tags :
- high accuracy barrier film Electrolytic sensor method water vapor permeability analyzer-W203 2.0View More
W203 2.0 Water Vapor Transmission Rate Tester
Electrolytic Method | High Barrier Materials WVTR Testing
Product Introduction
W203 2.0 is developed based on the electrolytic test principle, designed and manufactured in accordance with GB/T 21529, ISO 15106-3 and other international standards. It tests water vapor transmission rate of samples under controlled temperature and humidity, widely used for high barrier materials in LCD, solar cells, chip packaging, pharmaceuticals, food and more.
Test Principle
W203 2.0 adopts the electrolytic method. The pre-treated sample is fixed in the test chamber, separating it into wet and dry sides. Humidified nitrogen flows on one side of the film, while dry nitrogen (carrier gas) flows on the other side at a fixed rate. Due to humidity gradient, water vapor permeates from the wet side to the dry side, carried by dry nitrogen to the electrolytic sensor. The WVTR value is calculated from the electrical signal output by the sensor.
Compliant Standards
2025 Chinese Pharmacopoeia 4010 GB/T 21529-2008 ISO 15106-3 DIN 53122-2 YBB 00092003-2015 ASTM F3299 JIS K7129-3Technical Specifications
Key Features
- High-sensitivity sensor for ultra-high barrier materials in electronics, photovoltaics, displays.
- Automatic pneumatic clamping system, one-key locking, excellent sealing.
- Precise temperature & humidity control: ±0.1℃, ±1%RH.
- 3 independent test chambers for high-throughput testing.
- 11.6-inch HD touch screen, real-time test curves display.
- Intelligent OS with audit trail, multi-level user rights, GMP compliant.
- Calibrated with national standard substances for accurate & authoritative data.
Applications
Display Materials
LCD sealant, SiNx passivation film, modified PET, etc.Chip Packaging
FR-4, BT resin, PI substrate, ABF film, ceramic substrate.Solar Materials
Solar backsheet, butyl film, ALD Al₂O₃, EVA/POE film.Packaging Components
Pharmaceutical tubes, BFS bottles, infusion hoses, containers.Pharmaceutical & Food
Ultra-high barrier films and packages for medical and food use. - Infrared Method Water Vapor Permeability Analyzer W401L

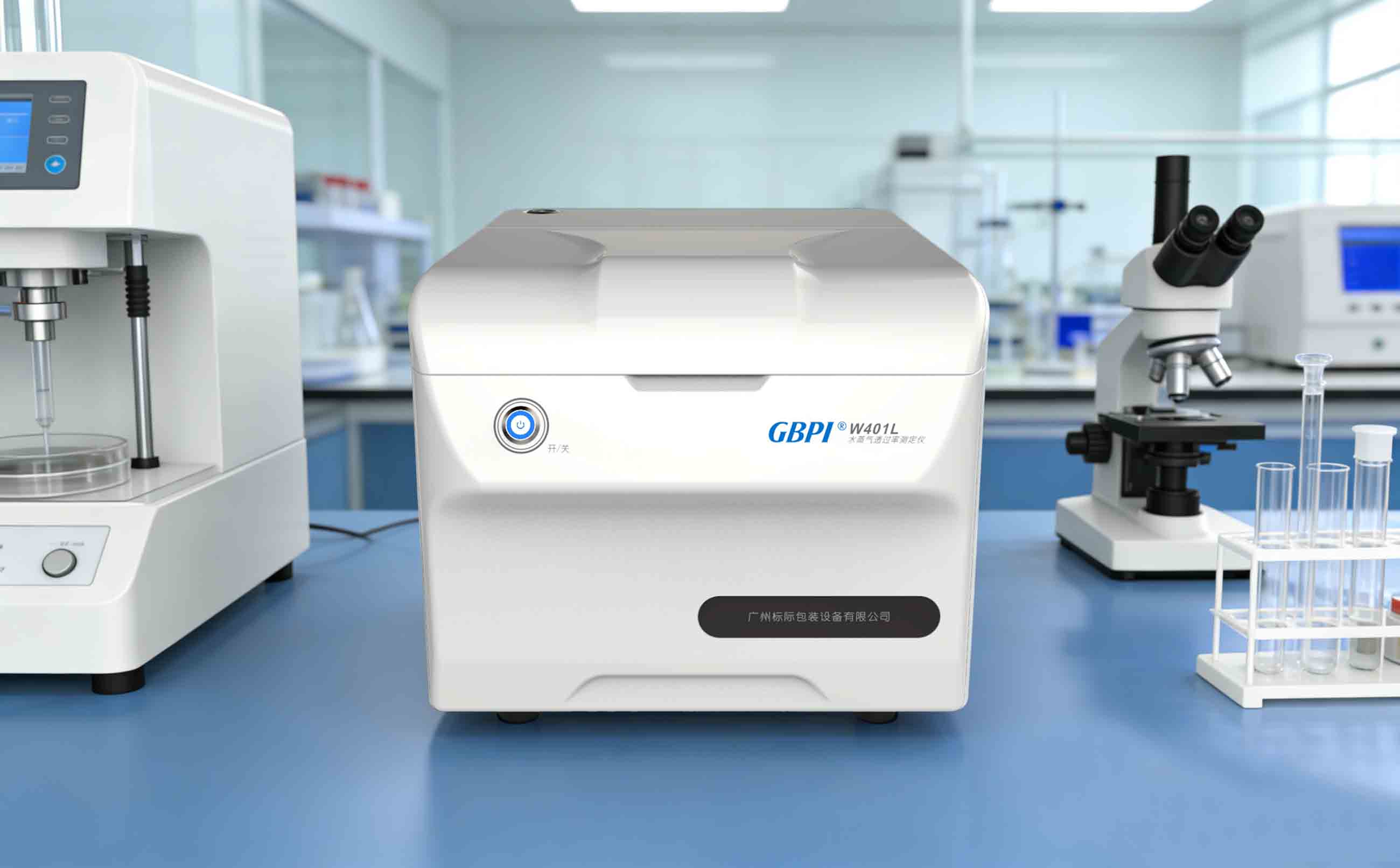

W401L Infrared Water Vapor Transmission Rate Tester
High Precision WVTR Testing Instrument for Packaging & Barrier Materials
Product Introduction
W401L Infrared Water Vapor Transmission Rate Tester is an upgraded high-end precision testing instrument developed by GBPI R&D team in accordance with ASTM, GB and international standards. It measures water vapor transmission rate of samples under controlled temperature and humidity, widely used for films, sheets, paper, packages and materials in food, pharmaceutical, medical devices, daily chemical, photovoltaic and electronics industries.
Test Principle

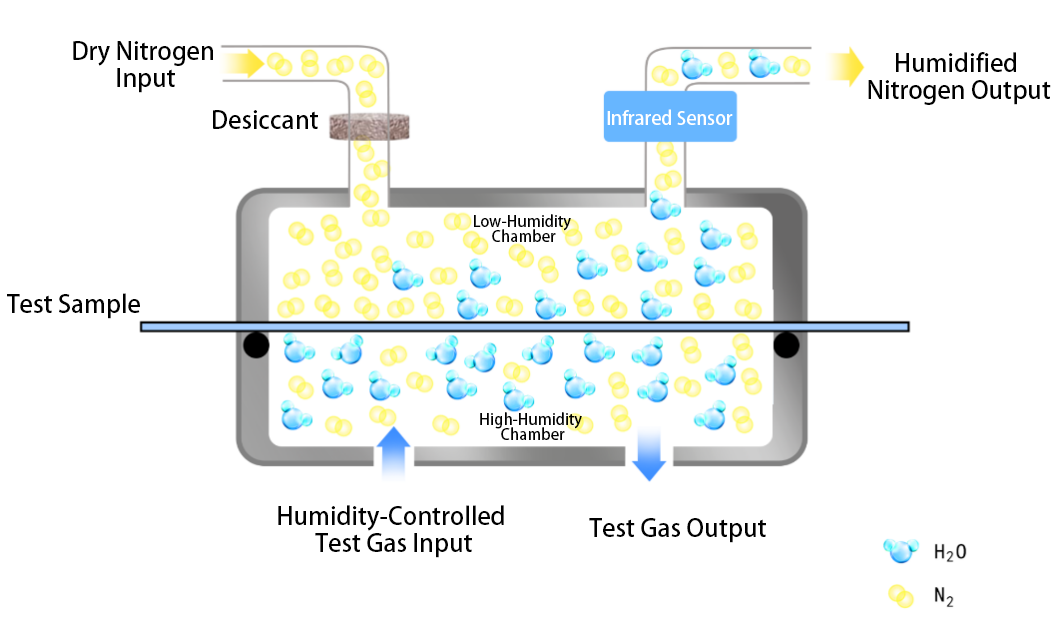

W401L adopts the infrared sensor testing principle. The pre-processed sample is fixed in the test chamber, dividing it into wet and dry sides. Compressed air flows in the wet chamber, and dry nitrogen (carrier gas) flows in the dry chamber at a fixed rate. Due to humidity gradient, water vapor permeates to the dry chamber and is carried to the infrared sensor. The WVTR value is calculated by the electrical signal output from the sensor.
Compliant Standards
ISO 15106-2 ISO 21760-1 ASTM F1249 GB/T 26253 JIS K7129-2 Chinese Pharmacopoeia 4010 YBB 00092003Technical Specifications
Key Features
- Patented high-precision infrared moisture sensor with ultra-high stability and 0.0001 g/(m²·24h) resolution.
- Precise temperature & humidity control: ±0.2℃, ±2%RH, stable and reliable test data.
- Ultra-wide test range 0.01~200 g/(m²·24h) for high, medium and low barrier materials.
- Intelligent OS with audit trail, multi-level user rights, fully compliant with GMP.
- Calibrated with national standard substances (GBW(E)130543 / GBW(E)130544) for authoritative data.
Applications
Plastic Films
PET, PE, BOPP, CPP, composite films, degradable films, etc.
Sheets
Pharmaceutical rigid sheets, composite sheets, rubber sheets, etc.
Paper & Paperboard
Coated paper, aluminum paper, paper-plastic composite materials, etc.
Medical Patches
Medical plaster, transdermal patches, healthcare dressings, etc.
Packaging Components
Bottles, tubes, trays, bags, blister packages, etc.
- wvtr tester factory
Tags :
- Coulometric Sensor Method Oxygen Permeability Analyzer Y310LView More
Introduction
This product is designed and manufactured based on the coulometric sensor method and conforms to GB/T 19789、ASTM D3985.This instrument can be used to measure the oxygen transmission rate of barrier materials with high and medium barrier properties with high accuracy and high efficiency.Y310Lis applicable to the determination of oxygen permeability of plastic films, sheeting, paper, and other packaging materials used in food, pharmaceutical, medical apparatus, consumer products, photovoltaic and electronic industries, etc.
