Testing Principle
Y110L oxygen transmission rate tester adopts the principle of coulombic electricity method. The pre-treated specimen is fixed in the middle of the test chamber, high purity oxygen flows in the upper chamber of the film, high purity nitrogen (carrier gas) flows in the lower chamber, oxygen molecules diffuse through the film to the nitrogen gas on the other side and are carried to the sensor by the flowing nitrogen gas, and the oxygen transmission rate is calculated by analyzing the oxygen concentration measured by the sensor.

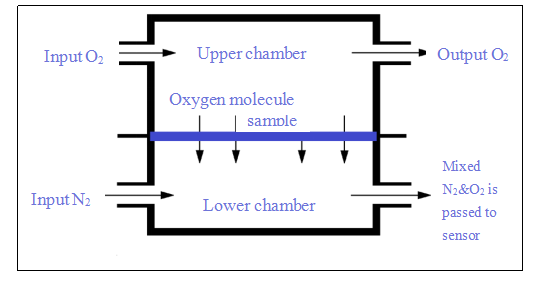

Schematic diagram for Coulometric sensor method
Standards
ASTM D3985、ASTM F2622、ASTM F1927、ASTM F1037、ISO 15105-2、JIS K-7126-B、DIN 53380-3
Specification
| Item | Technical Parameters |
| Test Range | 0.05~1000 cm³/(m²·24h·0.1MPa) |
| Resolution | 0.0001 cm³/(m²·24h·0.1MPa) |
| Temperature Control Range | 15~45°C |
| Temperature Control Accuracy | ±0.2°C |
| Humidity Control Range | 0%RH, 5~90%RH, 100%RH |
| Humidity Control Accuracy | ±2%RH |
| Permeation Area | 50.24 cm² (customized adapter available, minimum to 0.785 cm²) |
| Sample Size | Φ100 mm |
| Sample Thickness | ≤3 mm |
| Test Quantity | 1 piece |
| Carrier Gas | 99.999% Nitrogen (user-supplied) |
| Carrier Gas Pressure | ≥0.1 MPa |
| Carrier Gas Flow Rate | 5~100 mL/min |
| Overall Dimension | 440 mm × 680 mm × 380 mm |
| Weight | 35 kg |
| Power | 450 W |
| Power Supply | AC 220 V, 50 Hz |
Product Features
high precision oxygen sensor
High precision original imported oxygen sensor, high sensitivity, with ultra-high stability and ultra-low failure rate, resolution up to 0.0001 cm³/(m²-24h-0.1MPa).
test data is accurate and reliable
Precise control of test temperature and humidity. Equipped with high-precision temperature and humidity sensors, the test chamber temperature and humidity stability, temperature control accuracy of up to 0.2 ℃, humidity can be accurate to ± 2% RH.
Automatic test mode, the test process real-time monitoring of temperature, humidity, gas flow values and curves, high test repeatability.
ultra-wide testing range, high applicability of the instrument
The instrument is equipped with a single chamber, which is compact and flexible, saving space.
Ultra-wide testing range [0.05~1000 cm³/(m²-24 h-0.1 MPa)], to meet the needs of high, medium and low barrier material testing, with the addition of suitable accessories, can measure the oxygen transmission of bottles, bags, bowls and other containers.
Application
|
|
Film |
Various plastic films (PP/PET/PE/PVC/BOPP/CPP, etc.), plastic composite films, paper-plastic composite films, metal composite films, co-extrusion films, aluminized films, degradable packaging films (PLA/PBAT/PBS) etc.) Oxygen transmission rate test of film-like materials |
|
|
Sheet |
To test Oxygen transmission rate of solid pharmaceutical hard sheet (PP/PVC/PTP, etc.), metal composite sheet, rubber sheet and other sheet materials |
|
|
Medicinal stickers, warm stickers |
To test Oxygen permeability of medical plaster therapy patch, warm patch, dysmenorrhea patch and other patches |
|
|
Hygiene products |

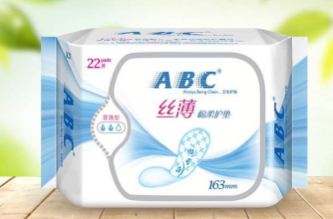

To test Oxygen permeability of sanitary napkins, pads and other sanitary products |
|
|
Paper, cardboard and composites |
To test Oxygen permeability of coated paper, carbon paper, silicone paper, aluminized paper, paper-aluminum-plastic composite sheet and other paper, cardboard |
|
|
Package |
To test Oxygen permeability of wine bottles, cola bottles, peanut oil barrels, Tetra Pak packaging, vacuum packaging bags, three-piece cans, cosmetic packaging, toothpaste tubes, jelly cups, yogurt cups and other plastic, rubber, paper, paper-plastic composite, glass, metal bottles , bag, can, box, barrel |
