- Packaging lab equipment high accuracy barrier film water vapor permeability analyzer moisture vapour transmission rate
Application
W413 2.0 water vapor permeability tester is designed to test the water vapor transmission rate (WVTR) of films or sheets materials.
- Water vapor permeability tester
- moisture vapour transmission rate
- water moisture tester
- packaging lab equipment
- barrier film water vapor permeability analyzer
- water vapor transmission rate tester
Tags :
- high accuracy barrier film Electrolytic sensor method water vapor permeability analyzer-W203 2.0View More

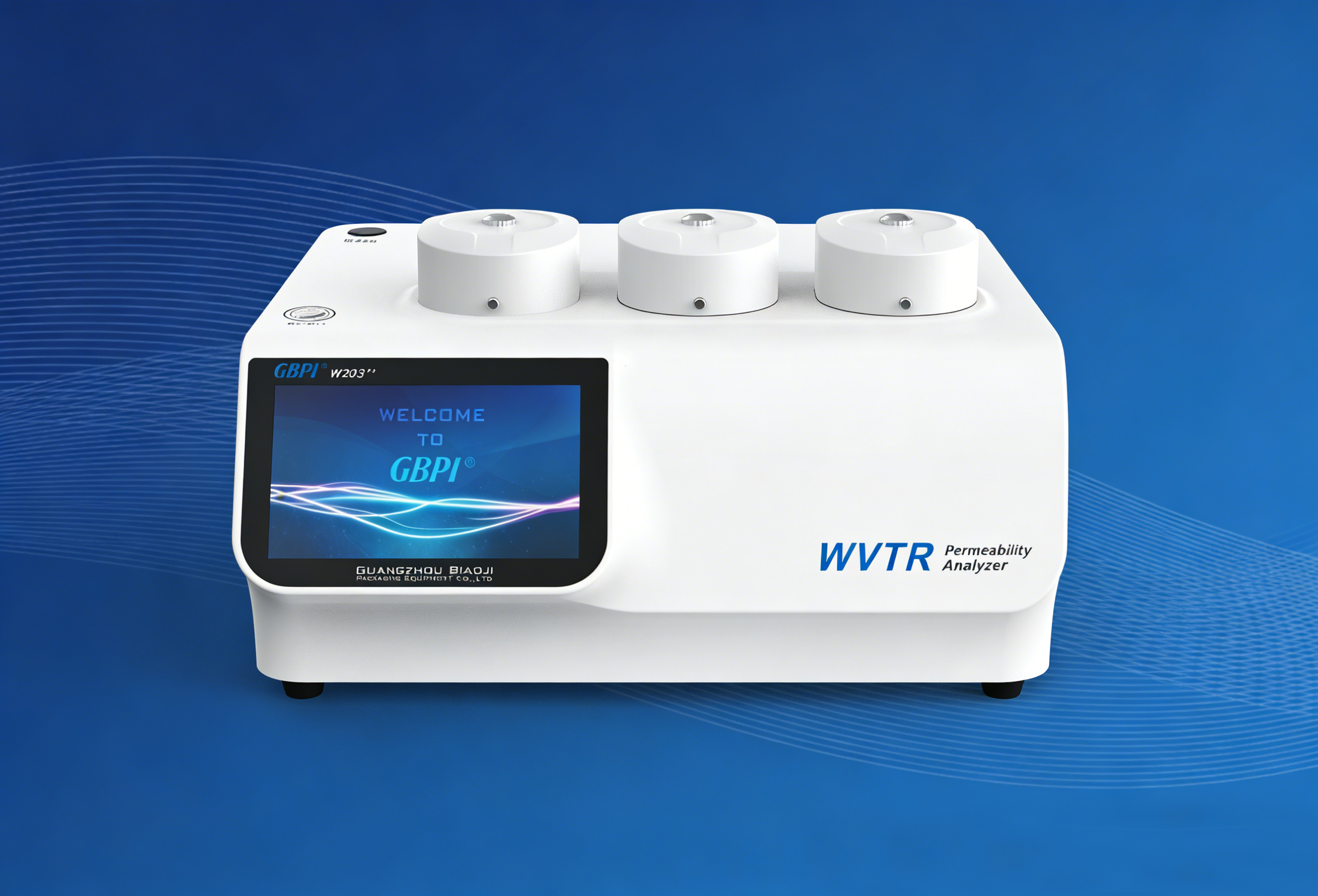

W203 2.0 Water Vapor Transmission Rate Tester
Electrolytic Method | High Barrier Materials WVTR Testing
Product Introduction
W203 2.0 is developed based on the electrolytic test principle, designed and manufactured in accordance with GB/T 21529, ISO 15106-3 and other international standards. It tests water vapor transmission rate of samples under controlled temperature and humidity, widely used for high barrier materials in LCD, solar cells, chip packaging, pharmaceuticals, food and more.
Test Principle
W203 2.0 adopts the electrolytic method. The pre-treated sample is fixed in the test chamber, separating it into wet and dry sides. Humidified nitrogen flows on one side of the film, while dry nitrogen (carrier gas) flows on the other side at a fixed rate. Due to humidity gradient, water vapor permeates from the wet side to the dry side, carried by dry nitrogen to the electrolytic sensor. The WVTR value is calculated from the electrical signal output by the sensor.
Compliant Standards
2025 Chinese Pharmacopoeia 4010 GB/T 21529-2008 ISO 15106-3 DIN 53122-2 YBB 00092003-2015 ASTM F3299 JIS K7129-3Technical Specifications
Key Features
- High-sensitivity sensor for ultra-high barrier materials in electronics, photovoltaics, displays.
- Automatic pneumatic clamping system, one-key locking, excellent sealing.
- Precise temperature & humidity control: ±0.1℃, ±1%RH.
- 3 independent test chambers for high-throughput testing.
- 11.6-inch HD touch screen, real-time test curves display.
- Intelligent OS with audit trail, multi-level user rights, GMP compliant.
- Calibrated with national standard substances for accurate & authoritative data.
Applications
Display Materials
LCD sealant, SiNx passivation film, modified PET, etc.Chip Packaging
FR-4, BT resin, PI substrate, ABF film, ceramic substrate.Solar Materials
Solar backsheet, butyl film, ALD Al₂O₃, EVA/POE film.Packaging Components
Pharmaceutical tubes, BFS bottles, infusion hoses, containers.Pharmaceutical & Food
Ultra-high barrier films and packages for medical and food use. - W416 2.0 Water Vapor Transmission Rate TesterView More

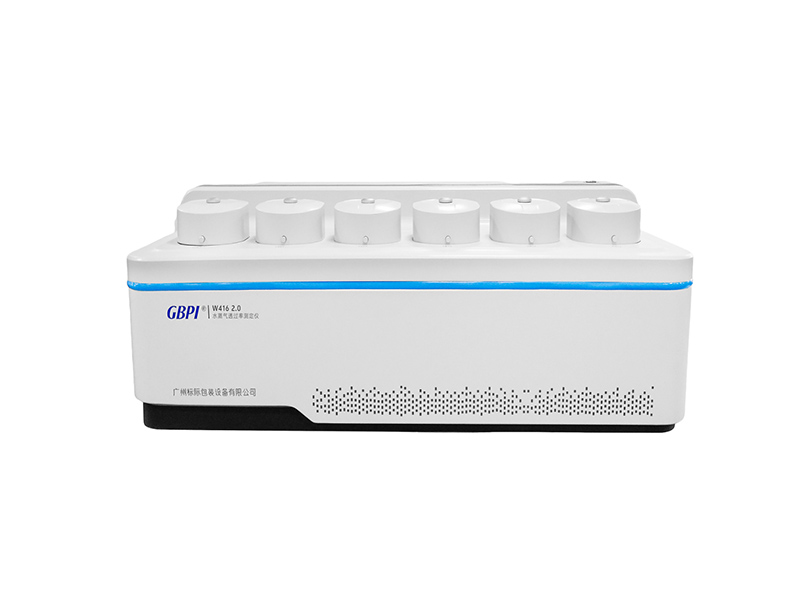

W416 2.0 Infrared Water Vapor Transmission Rate Tester
High Precision WVTR Tester | 6 Independent Test Chambers
Product Introduction
W416 2.0 Infrared Water Vapor Transmission Rate Tester is an upgraded high-end precision testing instrument developed by GBPI R&D team in accordance with GB/T 26253, ASTM F1249 and international standards. Based on infrared moisture sensor technology, it provides wide-range and high-efficiency WVTR test for high, medium and low barrier materials. It is widely used for films, sheets, paper, packages and materials in food, pharmaceutical, medical devices, daily chemical, photovoltaic and electronics industries, ideal for offline and online testing in packaging industry.
Test Principle
W416 2.0 adopts the infrared sensor testing principle. The pre-processed sample is fixed in the test chamber, dividing it into wet and dry sides. Compressed air flows in the wet chamber, and dry nitrogen (carrier gas) flows in the dry chamber at a fixed rate. Due to humidity gradient, water vapor permeates to the dry chamber and is carried to the infrared sensor. The WVTR value is calculated by the electrical signal output from the sensor.
Compliant Standards
ISO 15106-2 ISO 21760-1 ASTM F1249 GB/T 26253 JIS K7129-2 Chinese Pharmacopoeia 4010 YBB 00092003Technical Specifications
Key Features
- Patented high-precision infrared moisture sensor, ultra-high stability, resolution up to 0.0001 g/(m²·24h).
- Automatic pneumatic control system, one-key sample clamping, excellent sealing and easy operation.
- Precise temperature & humidity control: ±0.1℃, ±1%RH, stable and reliable test data.
- 6 independent test chambers for high-throughput and high-efficiency testing.
- Real-time display of 5 test curves: WVTR-time, temperature-time, humidity-time, flow-time, voltage-time.
- Intelligent OS with audit trail, multi-level user rights, fully compliant with GMP.
- Calibrated with national standard substances (GBW(E)130543 / GBW(E)130544) for authoritative data.
- Support laboratory intelligent IoT platform: remote data management, remote diagnosis, resource download.
Applications
Plastic Films
PET, PE, BOPP, composite films, degradable films, aluminum-plated films, etc.
Sheets
Pharmaceutical rigid sheets, metal composite sheets, rubber sheets, etc.
Paper & Paperboard
Coated paper, aluminum paper, paper-plastic composite materials, etc.
Medical Patches
Medical plasters, transdermal patches, healthcare dressings, etc.
Packaging Components
Bottles, tubes, trays, bags, plastic containers, etc.
