Plastic Films Heat Seal Tester With Five-point GBB-F

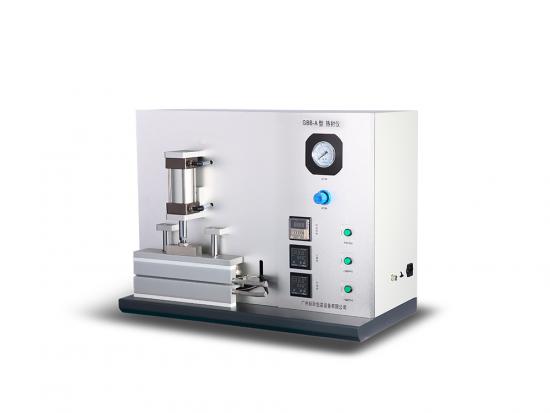

GBB-A Heat Seal Tester accurately test the heat seal temperature range, heat seal strength, suitable heat seal speed and heat seal pressure of plastic film, flexible packaging composite film, coated paper, aluminum foil, etc. It is applied to the quality control of various plastic film, food and drug manufacturer, the scientific research and teaching experiment of testing institutions and schools

Heat Seal Analyzer widely used in industries of plastic films, food, pharmaceuticals, inspection agency, research institute and so on,it is to test the temperature, pressure, and time for heat sealing of various film materials.

Product Introduction The GBB-A3 Lid Film Heat Sealer can accurately determine heat seal performance parameters (including heat seal temperature, time, and pressure) for lid films used in food and pharmaceutical packaging, such as those for jelly cups, yogurt cups, coffee capsules, instant noodle buckets, meal boxes, and medical blister packs. Since heat seal performance varies across different materials, measuring these parameters allows for precise determination of optimal heat seal conditions. Testing Principle Install appropriate fixtures on the instrument’s lower pallet and place the sample on the fixture. Set the desired heat seal temperature, time, and pressure, then start the instrument with one click—the upper fixture will descend to seal the sample. In manual mode, pressing the foot switch once activates the sealing knife, and the heat seal duration is determined by the preset time. In automatic mode, the upper and lower sealing knives repeatedly perform heat sealing automatically according to the set time. Executive Standards QB/T 2358-1998, ASTM F 2029, YBB00122003-2015 Technical Parameters Item Specification Temperature Range Room temperature ～ 250℃ Temperature Control Precision ±1℃ Heat Seal Time 0.1s ～ 99.99h Heat Seal Pressure (0~1) MPa Operation Modes Automatic and manual Air Source Compressed air Dimensions 730(L) mm × 400(B) mm × 535(H) mm Weight 45 kg Power 1200 W Power Supply AC 220V, 50Hz   Product Features Pull-out Loading DesignThe lower pallet features a double-layer stacking structure, enabling pull-out loading that keeps operators away from the upper sealing knife, ensuring both convenience and safety. High-Precision Temperature SensorEquipped with a high-precision temperature sensor and PID algorithm for temperature control, achieving a precision of ±1℃, with ultra-high stability and extremely low failure rates. Flexible Testing OptionsFreely switch between manual and automatic testing. The automatic mode saves time with fully automated, repeatable heat sealing; the manual mode includes a compatible foot switch—pressing it once activates the sealing knife, ensuring safe and easy operation. Advanced Pneumatic Drive SystemComposed of a pressure gauge, pressure regulating valve, and cylinder, the system uses compressed air. Pressure is adjusted via the valve to precisely lock air pressure, enabling pneumatic-driven heat seal clamping for efficient operation. Extensive Customization Services Custom fixed fixtures can be made according to samples, and fixtures are interchangeable based on cup sizes. The sealing knife can be upgraded with anti-stick functionality for a better user experience, making it easier to determine optimal heat seal conditions. Customizations for the shape, size, and smoothness of the sealing surface are available to meet diverse research needs.

Product Introduction GBB-C vertical heat seal tester can accurately measure the heat sealing temperature, heat sealing time, heat sealing pressure, and other heat sealing performance parameters of plastic packaging vertical bags, paper-plastic composite vertical bags and metal composite vertical bags(boxes). The heat sealing performance of samples of different materials are different. And the best heat sealing conditions can be accurately obtained through the determination of their heat sealing performance parameters.   Testing Principle Put the sample on the lower tray of the instrument, adjust the appropriate height according to the size of the sample, set a certain sealing temperature, time and pressure as required, and start the instrument with one key. The fixture on the instrument will heat seal the sample according to the setting parameters. Under the manual state, step on the foot switch, and the heat sealing knife is pressed. The heat sealing time is determined by the value set by the time control. In the automatic state, the upper and lower heat sealing knives of the heat sealer will automatically heat seal repeatedly according to the set time. Standards ASTM F 2029 Specifications Item  Technical Parameters Temperature Range Room temperature ～ 250℃ Temperature Control Accuracy ±1℃ Hot Sealing Time 0.1s ～ 99.99 h Hot Sealing Pressure (0~1) MPa Hot Sealing Surface Upper and lower sealing knives: 300×5.5 mm, smooth; lower sealing bar with silicon pad Operation Mode Two modes: automatic and manual, with external cylinder Gas Source Compressed air Overall Dimensions 730(L) mm×400(B) mm×535(H) mm Weight 33.8kg Power 1200 W Power Supply AC 220V, 50Hz     Characteristics u High progress imported quality sensor, quality assurance Original imported temperature sensor, wide temperature control range, high sensitivity, temperature control accuracy of ± 1 ℃, it has ultra-high stability and ultra-low failure rate. u Independent control of heat sealing temperature The rear of the heat sealing knife is equipped with a temperature sensor, and the temperature control of the inner and outer sealing knives is independent and set separately. u Personalized test selection Manual testing and automatic testing are free to choose. The automatic mode is time-saving and convenient, and the repeatability is fully automatic for heat-sealing the sample; the manual mode is equipped with a suitable foot switch, step on the foot switch, the heat sealing knife is pressed, and the safety protection is easy to operate. u New air drive system The drive system consists of a pressure gauge, a pressure regulating valve, and a cylinder. After the compressed air is introduced, the pressure is adjusted through the pressure valve, the air pressure can be accurately locked, and the heat sealing clamp is pneumatically driven, which is convenient and efficient. u Wider range of customized services The anti-sticking function of the heat sealing knife can be upgraded as needed, experience upgrade, and it is more intuitive and convenient to determine the best heat sealing conditions. The shape, size and smoothness of the sealing knife heat cover can be customized to meet different scientific research needs.   Application     Plastic stand up pouch Paper plastic stand up pouch     Aluminized stand up pouch Milk Boxes

GBB-F1 Heat Seal Tester is to test the temperature, pressure, and time for heat sealing of various film materials. It is applied to quality inspection organizations, drug control institutions, research institutes, packaging, thin film, food companies, pharmaceutical enterprises, personal care industry and so on.

Torque tester HP-200 is a testing instrument for bottle cap locking and opening based on ASTM and GB standard requirements and market demand developed and manufactured by GBPI R&D team. For bottle packaging products, nozzle packaging products and tube packaging products, the size of the cap opening torque is one of the key control parameters, which has a great impact on the intermediate transportation and final consumption of the product.It is suitable for measuring the size of the locking and opening torque of bottle products, and is an indispensable test equipment in the production process.

    Working Principle The spouts go through the hopper and the vibrating feeding tray to the ready position, and is pushed by the spouts to hang on the spouts bracket and rotate with the rotating disc to the pouch processing station. After taking the pouch and turning it over, the pouch to be processed is put on the pouch  fixture on the spout (located directly above the spout holder), the pouch and the spouts are moved together with the turntable to the heat-sealing station for heat-sealing, and the front and rear heat-sealing knives are closed for heat-sealing treatment. The good pouch is pushed by the push-out mechanism to the finished bag storage section for storage. The untreated waste bags are automatically removed with the movement of the turntable to the waste bag rejection port. Technical Specifications Item Technical Parameters Overall Dimensions 2400 x 2200 x 2000 mm (Length x Width x Height) Packaging Types Stand-up Pouches, 3-Side Seal Pouches, Gusseted Bags, Special-Shaped Bags Material Types Pouches: Inner Layer PE, Inner Layer PP Tubes: PE, PP Product Specifications Bag Length: 80~190 mm (L), 70~120 mm (W) Sealing Length: 60~120 mm Straw Sizes: 8.5 mm, 10 mm, 14 mm, 16 mm, etc. Working Speed 80-90 pcs/min Positioning Accuracy ≤0.5 mm Sealing Tools Total 6 groups: 1 Preheating, 4 Heat-Sealing, 1 Cooling Temperature Control Modules 18 groups, Accuracy ±0.1℃ Heating Temperature 0~300℃ Power Supply 380V/50Hz, 11KW Air Supply 0.6~0.8MPa, 2000L/H Equipment Weight 2100 Kg Application Field   Jelly spout bag Soy milk spout bag Toiletries spout bag Puree bag Special-shaped nozzle bag Folding outdoor hydration bag     GBPI Spout Sealing Machine Adopt Advanced System ♦  Spout Sealing Machineconsists of spout delivery system, bag delivery system, heat sealing system, bag collecting system, central control system and base.♦  The spout delivery system consists of chutes, vibrating disks and lead rails. The photoelectric sensors can induce the spouts to control the charging action.♦  The bag delivery system utilizes the pneumatic sucker.The delivery and sealing system have double positions, which doubls the efficiency.♦  The heat sealing system includes a big turntable, heat sealing blades and workstations. There are 6 sets of heat sealing blades: 1set for preheating, 4 for heat sealing and 1for cooling.♦  The workstations are adjustable for bags of different sizes. Customers can order diverse sealing blades for spouts of various types. ♦  Every sealing blade has an independent temperature controller,and runs and debugs independently.♦  The bag collecting system consists of finished products collecting table and waste product recycling table. Photoelectricity sensor and pneumatic control makes the manufacturing process truly automatic.♦  The control panel deploys a touch screen, on which all kinds of parameters can be set, and working status in real time such as complete amount, time, success rate and failure rate can be show. ♦  Other parts: 12 temperature control meter, 18 pressure gages, and 2~4 emergency stop buttons (1 button on each side of the machine). ♦  The base is easy to dismantle, transport and assemble.   Product Fectures 1. Fully automatic; a single set of machine needs only one operator, and the operator just needs to load enough spouts and bags at intervals. 2. Adopting round disc structure, the equipment occupies small space. 3. All the components are made of aluminum and stainless steel, and meet the hygienic and quality requirements of food, pharmaceutical, environmental and industries.  4. Easy to use with precise control; runs stably and works long hours continuously. 5. Adopts imported temperature control module, SMC pneumatic component, Omron PLC control unit to insure the quality, performance, and life of the machine. 6. Automatically detects faults, gives alarms, stops, diagnoses and show where the fault is. Main Components and Their Brands No. Name Brand 1 Servo motor   Made in China 2 Frequency transformer Omron 3 PLC Omron 4 Magnetic switch SMC 5 Photoelectric switch  KEYENCE/Omron 6 Pneumatic component SMC/AIRTAC 7 Temperature control module Omron 8 Splitter  DEX 9 LCD touch screen Omron   Configuration No. Name Quantity 1 Spout sealing machine 1 set 2 Vibrating disk  2 sets 3 Sealing blade  6 sets 4 Bag putting rack 1 set 5 Bag collecting rack 1 set 6 Installation tools 1 set 7 Spefication (User Manual) 1 set   Machine Production Working Samples GF1600-BSpout Sealing Machineis a fully automatic system consists of heat sealing system, spout input system, and bag input system, bag output system, and central control system mounted on single base frame from module. All systems are equipped with electronic sensors and relays to work cordially for efficient and quality manufacturing of packaging bags.

Product introduction This product is based on the test principle of cup method water vapor transmission, and is designed and manufactured according to ASTM E96, GB/T 1037 standards, and provides a wide range and high efficiency water vapor transmission rate detection for low, medium and high water vapor barrier materials. test. It is suitable for the water vapor transmission performance test of films, sheets, paper, fabrics, non-woven fabrics and related materials in the fields of food, medicine, medical equipment, daily chemicals, etc.

Application Use for test the light transmittance and haze degree of all transparent and semi-transparent parallel plane samples (plastic plate, sheets etc), and turbidity or clarity of liquid samples (water, drinks etc), used in the industries of plastics, membrane, coatings and paints, printing ink, research institute and so on.

GBL-L Electronic Digital Tensile Tester Machine apply to test the tensile strength, peeling strength, heat sealing strength and tearing strength of plastic film, composite film, tape, soft packaging material, rubber sheets, paper, non-woven fabrics and other packaging materials, widely used in industries of membrane, packaging, pharmaceuticals, food industries, inspection agency, research institute, college and so on.

Introduction Factory use vacuum freeze dryer is suitable for drying product such as food, drug products, biological products, Chinese medicine and more. It is to dry product at low temperature to preserve, stabilize, store and increase the life of products.. Freeze vacuum drying is a new type of box structure introduced by the vacuum freeze dryer that combines the refrigeration system, vacuum system, heat transfer oil heating system, and moisture removal system. It uses the space for storing materials in the box to dry. Main Technical Parameters   Item GB-LGJ-200F Drying chamber Freeze-drying area 2.25m2 Layers of shelf 5+1 Temperature scope of shelf -50℃-+70℃ (no-load) Shelf temperature error ±1℃ (in balance) Shelf spacing 70mm Size of shelf 500mm*900mm Condenser Min. Temperature of condenser ≤-70℃ (no-load) Water-capture capability ＞30Kg Liquid material 22L（thickness 10mm） Defrosting Electric defrosting Final Vacuum degree ≤ 5Pa Style of cooling Fan cooling Main functions Manual + Auto Control Mode, Sensor calibration, Intelligent temperature control, Freeze drying termination reminding and other functions are available.               Technical parameters □ Main configuration   Shelf effective area 2.25 m2 □ Specification   Shelf size 500mm × 900mm   Shelf numbers 5＋1（Radiation layer） Top shelf as temperature compensating plate   Material number plate 10 pcs   Shelf spacing 70 mm   Shelf temperature range -50℃～+70℃ （no-load）   Min. condenser temp. ≤ -70℃  （no-load）   System final vacuum degree ≤ 5Pa □ Basic configuration    Installation Power 13.5KW     ★ This is installed power, not operating power. □ Shape and other parts   Dimension（mm）： About 1200x2100x1700mm, L*W*H   Weight（Kg）：  About 1200   Noise ≤ 80dB   Electrical system Ground protection   Design, production, installation standards According to GMP, GB/T522 6.1-1996   Whole machine test Test, verify data, methods, and equipment support □ Drying chamber components   Shape Rectangular   Roughness of inner wall Ra ≤ 0.6μm   Opening direction Clockwise or anticlockwise (overlooking ,user confirm)   Chamber material AISI 304  stainless steel ◆  Door  material ACRYLIC   Working temperature ≥ 70℃   Thermal insulation material Polyurethane foam □ Shelf components ◆ Shelf material AISI 304  Top and bottom plate thickness 5mm ◆ Shelf structure AISI 304 stainless steel （Patent No. :ZL201020237059.X）   Roughness of shelf Ra ≤ 0.6 μm   Flatness ≤ ±0.5mm / m   Effective shelf size 500mm×900 mm   Amount of shelf 5＋1     Effective area of shelf 2.25m2 ◆ Shelf spacing  70 mm   Temperature decreasing rate +20℃ down to -40℃/ within 60 min, (no-load, entrance of silicon oil )   Temperature elevating rate -40℃ up to +20℃/ within 60 min, (no-load, entrance of silicon oil ) ◆ Shelf lowest temperature ≤ -50℃      (no-load, entrance of silicon oil )   Shelf highest temperature ≥ +70℃    (no-load, entrance of silicon oil )   Shelf temperature error ≤ ±1℃ ≤ ±1℃ ( in balance ) □ Condenser components   Condenser Shape Vertical type, cylindrical Compact structure, better water capture ,easy to clean and defrosting ◆ Condenser material AISI 304   Condenser water capture ≥ 30Kg   Condenser temp. Decreasing +20℃--40℃, within 30 minutes ◆   Condenser Min. temp. ≤ -70℃   Defrosting Electrochemical cream ◆ Thermal insulation material Polyurethane foam □ Refrigeration system   Refrigerator France original imported TECUMSEH full closure compressor ◆ Refrigerant Environmentally friendly refrigerant   Refrigerator number 2 sets   Shelf refrigeration 1 sets (shelf refrigeration at same time, indirect refrigeration)   Condenser refrigeration 1 set (shelf refrigeration at same time, direct refrigeration) ★ World famous devices are used to make sure correct, stable, safe and reliable.   High pressure protection device When system’s air discharge pressure exceeds allowed pressure, machine automatically stops working, to avoid an accident.   expansion valve DANFOSS（Denmark)   Top cover valve Castel（Italy）   solenoid valve DANFOSS（Denmark）   Oil separator ZOER   High pressure controller DANFOSS（Denmark）   Disacidify filter DANFOSS（Denmark）   Pressure meter LR/REFCO LR/REFCO(Germany/Swiss) oil submerge  pressure meter   Water cooling condenser Well-known brand □ Vacuum system ◆ Double stage rotary vane pump Tan's Vacuum Pump   Quantity 1 set ◆ Vacuum gauge Reborn   Chamber pumping rate Atmosphere→10 Pa ≤30 minutes(in dry condition)   System Maximum vacuum ≤ 5Pa   System leaking rate ≤ 10 Pa·l / sec □ Liquid circulation system ◆   Liquid low viscosity silicon oil ( 25℃, 5cst ) National qualified product   Liquid tubing material AISI 304, welding, heat  keeping ◆ Circulation pump ★GRUNDFOS, original imports, web rotor canned pump From Denmark brand, world famous brand   Circulation pump quantity 1 set   Heating rate 4kW   Heating control style Solid-state relay ◆ Stainless steel plate heat exchanger Well-known brands   Temperature sensor PT-100 platinum resistance □  Control system ◆ Control style Automatic and manual control ◆ Control system FD-PILOT   Control board SH-HPSC-II   Touch screen MCGS   Intermediate relay CHINT   AC contactor CHINT   Air circuit-breaker CHINT   Wiring terminals: Well-known brands □ Safety protection   Whole machine protection All safety conditions are ready for whole machine, machine can start running.   Operation protection Electrical system have logic interlock, control and protection function   Vacuum pressure Available   Heating system Available   Power cut and supply With safety protection measure   Products protection during sublimation process Heat cutting if vacuum lack   Condenser protection when vacuum pump start Interlock □ Whole machine design   Power 3Ph+N+PE, 380V   Installed power 13.5 KW (this is installed power, not running power)   Whole machine structure Integrated structure (easy for transport and placement)   Whole machine size About  1200x2100x1700mm, L*W*H   Whole machine weight (kg) About 1200   Time of warranty: One year after site acceptance.

One test chamber water vapor permeability analyzer using weight reduction method is to test the water vapor transmission rate (WVTR) of films or sheets materials.
