Working Principle
The spouts go through the hopper and the vibrating feeding tray to the ready position, and is pushed by the spouts to hang on the spouts bracket and rotate with the rotating disc to the pouch processing station. After taking the pouch and turning it over, the pouch to be processed is put on the pouch fixture on the spout (located directly above the spout holder), the pouch and the spouts are moved together with the turntable to the heat-sealing station for heat-sealing, and the front and rear heat-sealing knives are closed for heat-sealing treatment. The good pouch is pushed by the push-out mechanism to the finished bag storage section for storage. The untreated waste bags are automatically removed with the movement of the turntable to the waste bag rejection port.
Technical SpecificationsItem Technical Parameters Overall Dimensions 2400 x 2200 x 2000 mm (Length x Width x Height) Packaging Types Stand-up Pouches, 3-Side Seal Pouches, Gusseted Bags, Special-Shaped Bags Material Types Pouches: Inner Layer PE, Inner Layer PP Tubes: PE, PP Product Specifications Bag Length: 80~190 mm (L), 70~120 mm (W) Sealing Length: 60~120 mm Straw Sizes: 8.5 mm, 10 mm, 14 mm, 16 mm, etc. Working Speed 80-90 pcs/min Positioning Accuracy ≤0.5 mm Sealing Tools Total 6 groups: 1 Preheating, 4 Heat-Sealing, 1 Cooling Temperature Control Modules 18 groups, Accuracy ±0.1℃ Heating Temperature 0~300℃ Power Supply 380V/50Hz, 11KW Air Supply 0.6~0.8MPa, 2000L/H Equipment Weight 2100 Kg Application Field
Jelly spout bag
Soy milk spout bag
Toiletries spout bag
Puree bag
Special-shaped nozzle bag
Folding outdoor
hydration bag
GBPI Spout Sealing Machine Adopt Advanced System
♦ Spout Sealing Machineconsists of spout delivery system, bag delivery system, heat sealing system, bag collecting system, central control system and base.
♦ The spout delivery system consists of chutes, vibrating disks and lead rails. The photoelectric sensors can induce the spouts to control the charging action.
♦ The bag delivery system utilizes the pneumatic sucker.The delivery and sealing system have double positions, which doubls the efficiency.
♦ The heat sealing system includes a big turntable, heat sealing blades and workstations. There are 6 sets of heat sealing blades: 1set for preheating, 4 for heat sealing and 1for cooling.
♦ The workstations are adjustable for bags of different sizes. Customers can order diverse sealing blades for spouts of various types.
♦ Every sealing blade has an independent temperature controller,and runs and debugs independently.
♦ The bag collecting system consists of finished products collecting table and waste product recycling table. Photoelectricity sensor and pneumatic control makes the manufacturing process truly automatic.
♦ The control panel deploys a touch screen, on which all kinds of parameters can be set, and working status in real time such as complete amount, time, success rate and failure rate can be show.
♦ Other parts: 12 temperature control meter, 18 pressure gages, and 2~4 emergency stop buttons (1 button on each side of the machine).♦ The base is easy to dismantle, transport and assemble.
Product Fectures1. Fully automatic; a single set of machine needs only one operator, and the operator just needs to load enough spouts and bags at intervals.
2. Adopting round disc structure, the equipment occupies small space.
3. All the components are made of aluminum and stainless steel, and meet the hygienic and quality requirements of food, pharmaceutical, environmental and industries.
4. Easy to use with precise control; runs stably and works long hours continuously.
5. Adopts imported temperature control module, SMC pneumatic component, Omron PLC control unit to insure the quality, performance, and life of the machine.
6. Automatically detects faults, gives alarms, stops, diagnoses and show where the fault is.Main Components and Their Brands
No.
Name
Brand
1
Servo motor
Made in China
2
Frequency transformer
Omron
3
PLC
Omron
4
Magnetic switch
SMC
5
Photoelectric switch
KEYENCE/Omron
6
Pneumatic component
SMC/AIRTAC
7
Temperature control module
Omron
8
Splitter
DEX
9
LCD touch screen
Omron
Configuration
No.
Name
Quantity
1
Spout sealing machine
1 set
2
Vibrating disk
2 sets
3
Sealing blade
6 sets
4
Bag putting rack
1 set
5
Bag collecting rack
1 set
6
Installation tools
1 set
7
Spefication (User Manual)
1 set
Machine Production Working Samples
GF1600-BSpout Sealing Machineis a fully automatic system consists of heat sealing system, spout input system, and bag input system, bag output system, and central control system mounted on single base frame from module. All systems are equipped with electronic sensors and relays to work cordially for efficient and quality manufacturing of packaging bags.
- Spout Pouch Inserting and Sealing Machine
Product introduction
Fully automatic dual-channel linear type corner-spout sealing machine is professionally used for automatic casing and heat sealing of spouts and pouches. It is suitable for spouts of various diameters, lengths and models. As preferred automation equipment for corner spout packaging pouches, it is widely use in packaging of Laundry detergent, beverage, oil, edible oil, outdoor folding water pouches, etc. It can be customized to connect to the filling production line.
- Dual-channel Linear Mode Corner-spout Sealing Machine
- automatic spout inserting machine
- spout pouch capping machine
- automatic pouch spout inserter
- Dual-channel linear mode corner-spout sealing machine
Tags :

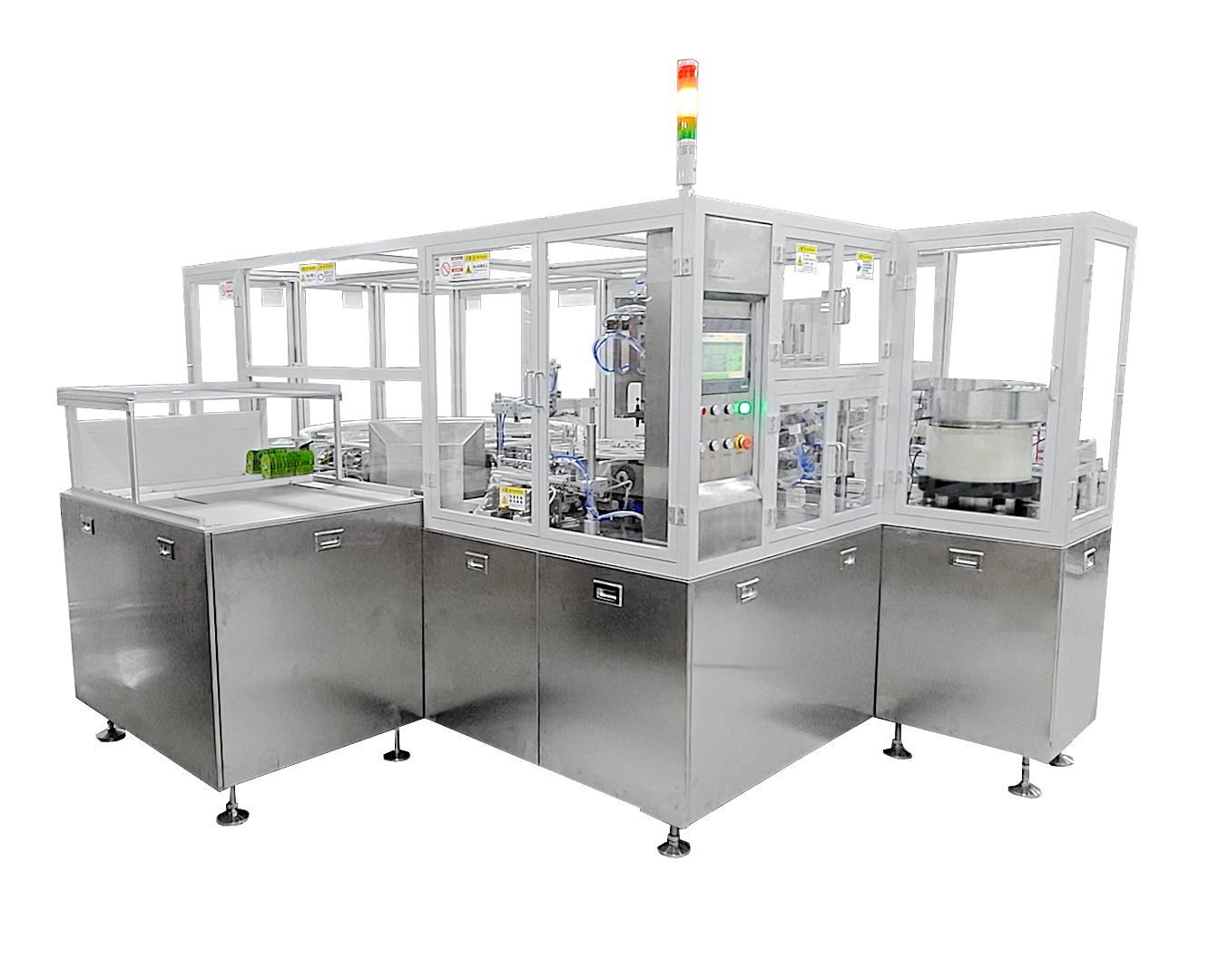

- Two-station Rotary Mode Spout Sealing MachineView More
Introduction
The fully automatic two-station turntable spout sealing machine is a machine specially used for automatic sleeve and heat sealing of spouts and pouches. It is suitable for spouts of various calibers, lengths and models. It is the preferred automation equipment for spout stand-up pouches for beverage packaging, suckable jellies, condiments and daily chemical products (laundry detergent, skin care products), etc. It can be customized to connect to the filling production line.
Specification
Item
Technical parameters
Pouch type
Stand-up pouch, three-side sealed pouch, accordion pouch, special-shaped pouch
Material type
Pouch: inner layer PE, inner layer PP
Spout: PE, PP
Product Specifications
Pouch dimensions (center seal): 100~180 mm (length), 70~120 mm (width), seal length: 60~120 mm
(slant seal): 135-180 mm (length), 70-100 mm (width), seal length: 60~120 mm
Spout dimensions: 8.5 mm (standard), 10 mm, 14 mm, 16 mm, etc.
Working speed
Max80- 90 pcs/min
Position accuracy
≤±0.5 mm
Heat sealing system
A total of 6 groups, including 1 preheating group, 4 heat sealing groups, and 1 cooling group
Temperature control module
3 groups (8-channel modules), accuracy ±0.1℃
Heating temperature
Room temperature ~300℃
Power supply
380V/50Hz 12KW
Gas source
0.6~0.8MPa，600L/min
Overall dimensions
3428 x 2525 x 2241mm (Length x Width x Height)
Equipment weight
2400 Kg
Features
l The sealing equipment features a two-station design, with fully automated operation of preheating, bagging, tube filling, and heat sealing processes.
l It utilizes PLC control and intelligent parameter setting, allowing for quick parameter adjustments based on different pouch types and spouts, simplifying operation.
l It employs imported temperature control modules and pneumatic components from SMC, Festo, and Airtac, ensuring reliable quality.
l It adopts a step-by-step heating and final cooling sealing process, resulting in excellent sealing performance.
l It features automatic fault detection, automatic alarm, automatic stop, and automatic fault diagnosis and display.
l The equipment is lightweight, occupies a small area, and boasts stable performance.
l All major components are made of aluminum alloy and stainless steel, meeting the environmental hygiene requirements of food and pharmaceutical GMP.
- Three-station Rotary Mode Spout Sealing Machine （Three-station）View More
Product introduction
The automatic three-station rotary mode spout sealing machine is specially designed for automatic sleeving and heat sealing of straws and bags. It is suitable for straws of various calibers, lengths and models, and is the preferred automated equipment for spouted stand-up pouches in beverage packaging, drinkable jelly, condiments, and daily chemical products (laundry detergent, skin care products, etc.). It can be customized to connect with filling production lines.
