W401 2.0 water vapor transmission rate tester is designed and manufactured according to  ASTM F1249 and ISO standards, based on the testing principle of infrared method, it provides wide range and high efficiency water vapor transmission rate test for high, medium and low barrier materials is suitable for water vapor transmission performance testing of films, sheets, paper, packaging and other related materials in the fields of food, medicine, medical equipment, daily chemistry, photovoltaic electronics, etc. It is an ideal configuration instrument for off-line or on-line testing of the barrier properties of packaging materials for production units in the packaging industr

One test chamber water vapor permeability analyzer using weight reduction method is to test the water vapor transmission rate (WVTR) of films or sheets materials.

Application W301 2.0 water vapor permeability analyzer is designed to test the water vapor transmission rate (WVTR) of films or sheets materials with the principle of Gravimetric Method.

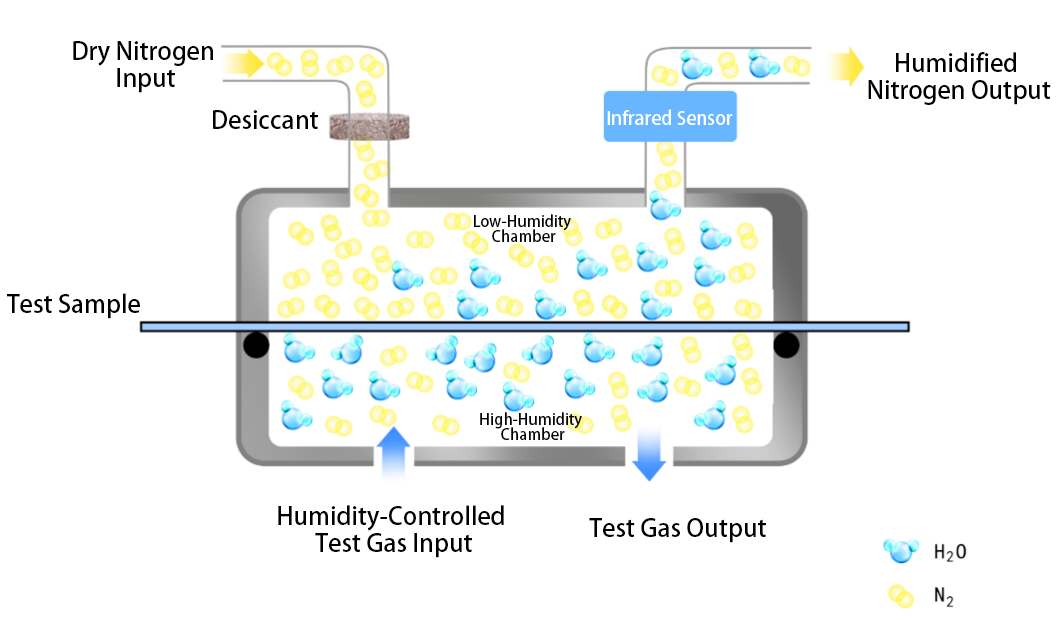

W401L Infrared Water Vapor Transmission Rate Tester High Precision WVTR Testing Instrument for Packaging & Barrier Materials Product Introduction W401L Infrared Water Vapor Transmission Rate Tester is an upgraded high-end precision testing instrument developed by GBPI R&D team in accordance with ASTM, GB and international standards. It measures water vapor transmission rate of samples under controlled temperature and humidity, widely used for films, sheets, paper, packages and materials in food, pharmaceutical, medical devices, daily chemical, photovoltaic and electronics industries. Get a Free Quote Today   Test Principle W401L adopts the infrared sensor testing principle. The pre-processed sample is fixed in the test chamber, dividing it into wet and dry sides. Compressed air flows in the wet chamber, and dry nitrogen (carrier gas) flows in the dry chamber at a fixed rate. Due to humidity gradient, water vapor permeates to the dry chamber and is carried to the infrared sensor. The WVTR value is calculated by the electrical signal output from the sensor.   Compliant Standards ISO 15106-2 ISO 21760-1 ASTM F1249 GB/T 26253 JIS K7129-2 Chinese Pharmacopoeia 4010 YBB 00092003   Technical Specifications Item Value Test Range 0.01~200 g/(m²·24h) Resolution 0.0001 g/(m²·24h) Temperature Range 15~45℃ Temperature Accuracy ±0.2℃ Humidity Range 5~90%RH, 100%RH Humidity Accuracy ±2%RH Test Area 50.24 cm² Sample Size Φ100 mm Test Chambers 1 channel   Key Features Patented high-precision infrared moisture sensor with ultra-high stability and 0.0001 g/(m²·24h) resolution. Precise temperature & humidity control: ±0.2℃, ±2%RH, stable and reliable test data. Ultra-wide test range 0.01~200 g/(m²·24h) for high, medium and low barrier materials. Intelligent OS with audit trail, multi-level user rights, fully compliant with GMP. Calibrated with national standard substances (GBW(E)130543 / GBW(E)130544) for authoritative data.   Applications Plastic Films PET, PE, BOPP, CPP, composite films, degradable films, etc. Sheets Pharmaceutical rigid sheets, composite sheets, rubber sheets, etc. Paper & Paperboard Coated paper, aluminum paper, paper-plastic composite materials, etc. Medical Patches Medical plaster, transdermal patches, healthcare dressings, etc. Packaging Components Bottles, tubes, trays, bags, blister packages, etc.

W203 2.0 Water Vapor Transmission Rate Tester Electrolytic Method | High Barrier Materials WVTR Testing Product Introduction W203 2.0 is developed based on the electrolytic test principle, designed and manufactured in accordance with GB/T 21529, ISO 15106-3 and other international standards. It tests water vapor transmission rate of samples under controlled temperature and humidity, widely used for high barrier materials in LCD, solar cells, chip packaging, pharmaceuticals, food and more. Get a Free Quote Today   Test Principle W203 2.0 adopts the electrolytic method. The pre-treated sample is fixed in the test chamber, separating it into wet and dry sides. Humidified nitrogen flows on one side of the film, while dry nitrogen (carrier gas) flows on the other side at a fixed rate. Due to humidity gradient, water vapor permeates from the wet side to the dry side, carried by dry nitrogen to the electrolytic sensor. The WVTR value is calculated from the electrical signal output by the sensor.   Compliant Standards 2025 Chinese Pharmacopoeia 4010 GB/T 21529-2008 ISO 15106-3 DIN 53122-2 YBB 00092003-2015 ASTM F3299 JIS K7129-3   Technical Specifications Item Value Test Range 0.001~40 g/(m²·24h) (Film & Sheet) Resolution 0.0001 g/(m²·24h) Temperature Range 15 ~ 45℃ Temperature Accuracy ±0.1℃ Humidity Range 5 ~ 90%RH Humidity Accuracy ±1%RH Test Area 50.24 cm² Sample Size Φ100 mm Test Chambers 3 channels (independent data)   Key Features High-sensitivity sensor for ultra-high barrier materials in electronics, photovoltaics, displays. Automatic pneumatic clamping system, one-key locking, excellent sealing. Precise temperature & humidity control: ±0.1℃, ±1%RH. 3 independent test chambers for high-throughput testing. 11.6-inch HD touch screen, real-time test curves display. Intelligent OS with audit trail, multi-level user rights, GMP compliant. Calibrated with national standard substances for accurate & authoritative data.   Applications Display MaterialsLCD sealant, SiNx passivation film, modified PET, etc. Chip PackagingFR-4, BT resin, PI substrate, ABF film, ceramic substrate. Solar MaterialsSolar backsheet, butyl film, ALD Al₂O₃, EVA/POE film. Packaging ComponentsPharmaceutical tubes, BFS bottles, infusion hoses, containers. Pharmaceutical & FoodUltra-high barrier films and packages for medical and food use.

Product introduction This product is based on the test principle of cup method water vapor transmission, and is designed and manufactured according to ASTM E96, GB/T 1037 standards, and provides a wide range and high efficiency water vapor transmission rate detection for low, medium and high water vapor barrier materials. test. It is suitable for the water vapor transmission performance test of films, sheets, paper, fabrics, non-woven fabrics and related materials in the fields of food, medicine, medical equipment, daily chemicals, etc.

Water Vapor Permeability Analyzer -AUTO W809 is designed and manufactured in accordance with ASTM E96, GB/T 1037 standards, and provides a wide range of high-efficiency water vapor transmission rate testing for low, medium and high water vapor barrier materials with the  principle of Gravimetric Method.

  product description This product is based on the principle of water vapor transmission test by cup method and designed and manufactured with reference to ASTM E96, standard, providing a wide range and high efficiency water vapor transmission rate test for low, medium and high water vapor barrier materials.It is suitable for water vapor transmission performance testing of films, sheets, papers, fabrics, nonwovens and related materials in the fields of food, pharmaceuticals, medical devices, daily chemicals, etc.

  Infrared method water vapor transmission rate tester W405L is a high-end precision packaging material testing instrument, newly developed and upgraded by GBPI Research and Development Team based on ASTM, GB standard requirements and market demand. It is used to test the water vapor transmission rate of samples under set temperature and humidity conditions. It is suitable for the water vapor transmission rate performance test of films, sheets, papers, packages and various materials in the fields of food, medicine, medical equipment, daily chemistry, photovoltaic electronics, etc.

product description This product is based on the test principle of cup method water vapor transmission, and is designed and manufactured according to ASTM E96, GB/T 1037 standards, and provides a wide range and high efficiency water vapor transmission rate detection for low, medium and high water vapor barrier materials. test.



    W201 2.0 Water Vapor Transmission Rate Tester Product Introduction This product is developed, designed and manufactured based on the electrolytic test principle, in accordance with GB/T 21529, ISO15106-3 and other standards. It is used to test the water vapor transmission rate of samples under set temperature and humidity conditions. Suitable for water vapor transmission performance testing of high-barrier materials used in LCD display devices, solar cells, chip packaging, pharmaceuticals, food and other fields. Get a Free Quote Today   Test Principle W201 2.0 Water Vapor Transmission Rate Tester adopts the electrolytic method principle. The pre-processed sample is fixed in the middle of the test chamber, dividing the chamber into high-humidity and low-humidity sides. Humidified nitrogen flows on one side of the film, and dry nitrogen (carrier gas) flows at a fixed rate on the other side. Due to the humidity gradient, water vapor permeates from the high-humidity side to the low-humidity side. The water vapor passing through the sample is carried by the flowing dry nitrogen to the electrolytic sensor, and parameters such as the water vapor transmission rate of the sample are obtained through the electrical signal output by the sensor. Electrolytic Method Working Principle Diagram:             Executive Standards 2025 Edition Chinese Pharmacopoeia <4010 Determination Method of Water Vapor Transmission Rate of Pharmaceutical Packaging Materials>, GB/T 21529-2008, ISO15106-3, DIN 53122-2, YBB00092003-2015, ASTM F3299, JIS K7129-3   Technical Parameters Test Range 0.001~40g/(m²·24h) (Film & Sheet) Resolution 0.0001g/(m²·24h) (Film & Sheet) Temp. Control Range 15～45℃ Temp. Control Accuracy ±0.1℃ Humidity Control Range (5～90)%RH Humidity Control Accuracy ±1%RH Permeation Area 50.24 cm² Sample Size Φ100 mm Sample Thickness ≤3 mm Test Quantity 1 piece Carrier Gas 99.999% Nitrogen (User Provided) Carrier Pressure ≥0.1 MPa Carrier Flow 0~100 mL/min Gas Interface 1/8 inch Metal Tube Dimensions 380×620×385mm Weight 25kg Power 450 W Power Supply AC 220 V, 50 Hz   Product Features Core Technology & Upgraded Operation: High sensitivity, precision and stability of the sensor, capable of testing high-barrier materials in electronics, photovoltaic, solar, display and other fields. Brand new pneumatic control system, automatic fixture locks sample with one key, convenient and labor-saving, with excellent sealing performance. Precise Temperature & Humidity Control: Temperature: Bi-directional automatic control via semiconductor cooling plate, accuracy ±0.1℃. Humidity: Dual-airflow (dry & wet) humidity control method, stable and high precision, accuracy ±1%RH. Strong Expandability: With optional accessories, it can test water vapor transmission rate of packages and containers. Excellent Appearance & Real-time Visual Curve: Built-in 11.6-inch high-resolution color touch screen, clear view, sensitive touch. Fully automatic operation, one-key test, automatic judgment and shutdown. Real-time display of 5 groups of curves (permeation rate-time, temp-time, humidity-time, concentration-time), with preview/hide function. Intelligent OS & Global Certification: Self-developed intelligent OS, modular interface, flexible parameter setting. Designed in accordance with GMP Computerized System, with audit trail and multi-level user authority, meeting pharmaceutical industry data traceability requirements. Customizable test reports, multiple data output formats, electronic signature and online report approval. Professional Calibration & Reliable Data: Our company possesses the National Standard Material Classification Certificate for water vapor transmission rate approved by the State Administration of Quality Supervision, Inspection and Quarantine (GBW(E)130543 / GBW(E)130544). Self-developed national standard materials are used for instrument calibration, ensuring accurate, universal and authoritative test data.   Application Fields Packages & Containers Custom fixtures for pharmaceutical BFS, ointment tubes, infusion tubes. Chip Packaging Materials FR-4, BT resin, PI, ABF film, Al₂O₃ ceramic, metal substrate testing. Solar Cell Barrier Materials Solar backsheet, butyl rubber, ALD Al₂O₃, POE, EVA film testing. Display Field Barrier Materials For LCD high-barrier materials such as epoxy resin film, SiNx passivation film, modified PET Other Materials Ultra-high barrier materials for pharmaceutical, food, daily chemical industries.   Why Choose Us ✓ Professional R&D & Manufacturing We have professional R&D team and complete production line, focusing on physical property testing instruments for more than 20 years, providing reliable and stable testing equipment for global customers. ✓ High Precision & Quality Certification Products comply with international standards, equipped with high-precision sensors and intelligent control system, with national standard material certification and authoritative qualification. ✓ Perfect After-sales & Technical Support Global after-sales service network, timely technical guidance, professional training and lifelong maintenance services to ensure worry-free use. Guangzhou GBPI Packaging Equipment Co., Ltd. | Professional Testing Instrument Manufacturer
