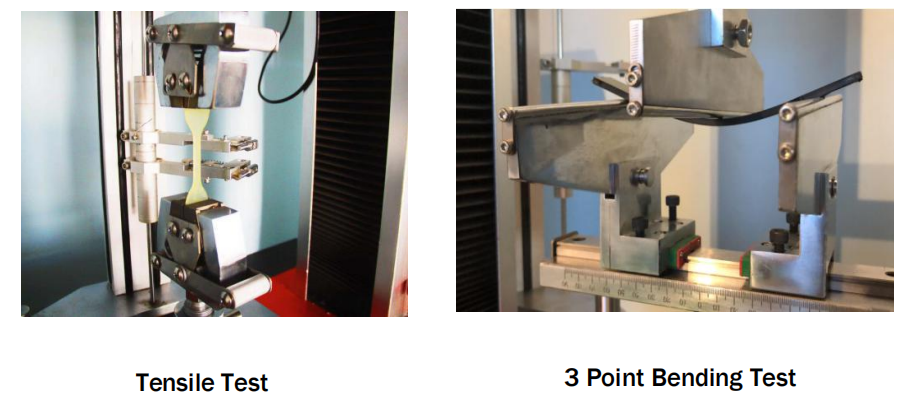

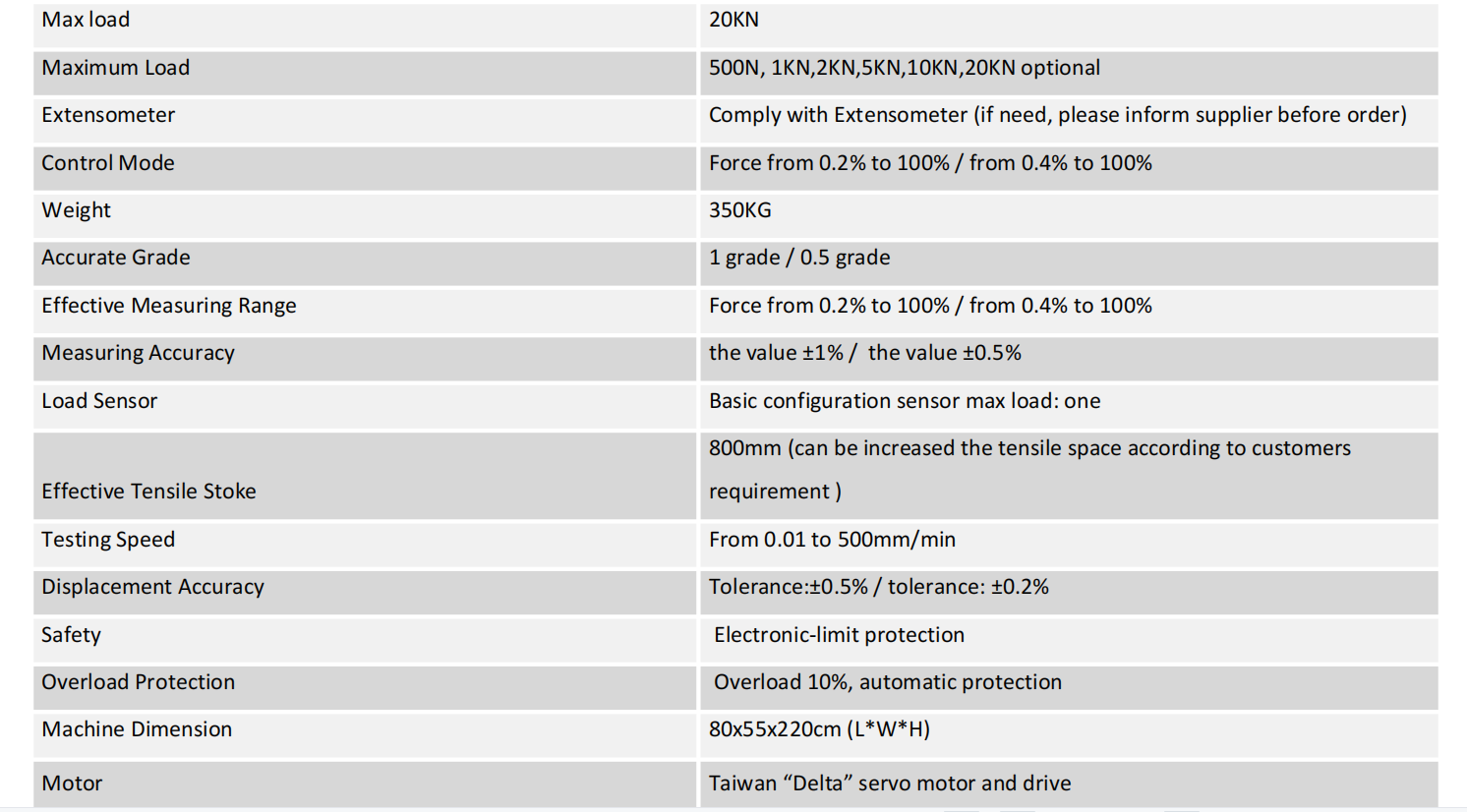

GBPI 20 KN UNIVERSAL TEST MACHINE

Paper Packaging Test Equipment

Folding Endurance Tester mainly test the folding endurance on paper, cardboard and other flaky materials, but the thickness less than 1.25mm. Its main technical indexes and performance parameters accord with related national standards.

Paper Air Permeability Tester tests the air permeability, air permeability resistance of paper and cardboard. It adopts the testing principle of differential pressure method and combines Gurley method, Schauer method and Bengtsen method.

Box Compression Tester mainly used in various types of corrugated box and packing box. It is the basic instrument for corrugated carton such as small and medium-sized packing box of the compression strength performance test. The various performance parameters and technical indicators is in line with ISO2872 The Package – Complete and Full Transport Package- Compression Test ", ISO2874 The Package – Complete and Full Transport Package-Stacking Test using pressure testing machine "

The tear tester (elemendorf method) tests the tear resistance of paper, film, PVC, polyolefin, polyester, composite film, sheet, non-woven fabric, textile, paper, and board, etc. It is controlled by computer automatically and can be tested independently.

Application GNP-1 Bursting Strength Tester can measure the bursting strength of single-layer or multi-layer paper, and can be used to test the blasting strength of cloth, leather, paper board, thin metal sheet, etc. Use mark transmission pressure, automatically retain the maximum bursting strength value when bursting, decomposition degree is 100 times higher than the needle type.

GBH-2 multifunctional single-column electronic tensile tester for plastics, films, fibers, rubber sheets, composite materials, tapes, soft packaging materials, paper, non-woven fabrics, medicine package materials, syringes, bottlescovers, rubber plugs and other packaging materials are tested for mechanical properties to meet the needs of different users.

Vacuum Coating Thickness Tester is applied to various vacuum aluminum film, aluminized paper, and other conductive coating materials to test the resistance value, evenness, thickness and so on.

Didital thickness tester is used to make thickness measuring or comparative measuring of plastic film, thin sheet, paper and so on.

Product introduction Fully automatic dual-channel linear type corner-spout sealing machine is professionally used for automatic casing and heat sealing of spouts and pouches. It is suitable for spouts of various diameters, lengths and models. As preferred automation equipment for corner spout packaging pouches, it is widely use in packaging of Laundry detergent, beverage, oil, edible oil, outdoor folding water pouches, etc. It can be customized to connect to the filling production line.

1 Function Ozone in the atmosphere is very little, while it’s a major factor in rubber cracking, the product simulate and enhance atmospheric ozone condition to study the role of ozone on the rubber, and to rapid identificate and evaluate rubber resistance for ozone aging and anti-ozone agent protection. According to“GB / T7762-2003 Test Method for Static Tensile Test of Ozone Resistance Cured Rubber or Thermoplastic Rubber”,“GB / T2951.21-2008 General Test Method for Insulation and Sheathing Material of Cable”,“GB / T 11206-2009 Rubber Aging test surface cracking method”, and other relevant standards of the test method. 2.1 Structure  All-in-one machine 2.2 Material a) Inner chamber: SUS304 stainless steel plate b) External chamber: SUS304 stainless steel plate or baking finish. Insulation: rigid polyurethane foam + aluminum insulation cotton with double protection. 2.3 Machine door a) Single door, open from left. b) Window frame / door frame with two silicone rubber seal and anti-condensation heating device. c)With observation window (W220xH250mm), lights above the window and door.  2.4 Requirements for sample holder (for dynamic-type only)       a)At both ends of the sample to be fixed with a clamp under the required elongation, the longitudinal direction of the specimen shall be substantially parallel to the direction of air flow when in contact with ozonized air. b) Clamps shall be made of a material (eg aluminum) which does not readily decompose ozone. c) Allow the sample to rotate at a speed between (20 ^ -25) mm / s, in a plane perpendicular to the dry gas flow, with each sample moving continuously along the same path. d) The time of one revolution of the same specimen is (8 ^ -12) min. The scanning area of the specimen shall be at least 40% of the effective area of the test chamber. Specimen preparation shall conform to the provisions of GB / T 9865.1. The test specimen is preferably cut from the new test piece and, if desired, may be cut from the finished product. At least 3 specimens shall be required for per test condition. The standard length of the specimen is not less than 10mm, and thickness not less than 0.2mm. The length of specimen between the two ends of the clamp before drawing is not less than 40mm. 3 Control panel a) Controller display b) Power switch c) Fault alarm d)Wavelength switch e)light switch button 4 Enclosure configuration a) With a stainless steel SUS # 304 shelf turntable b) One φ50mm lead hole:, and with a hole cover and silicone rubber plug. c) Move casters 4 pcs d) Horizontal mounting brackets 4 pcs e) There is a drainage hole in the back of the machine to facilitate the drainage of condensate; (8mm in diameter) Three-phase five-wire cable (four-core cable + protective grounding wire) 1 pc, (three meters long).

    W201 2.0 Water Vapor Transmission Rate Tester Product Introduction This product is developed, designed and manufactured based on the electrolytic test principle, in accordance with GB/T 21529, ISO15106-3 and other standards. It is used to test the water vapor transmission rate of samples under set temperature and humidity conditions. Suitable for water vapor transmission performance testing of high-barrier materials used in LCD display devices, solar cells, chip packaging, pharmaceuticals, food and other fields. Get a Free Quote Today   Test Principle W201 2.0 Water Vapor Transmission Rate Tester adopts the electrolytic method principle. The pre-processed sample is fixed in the middle of the test chamber, dividing the chamber into high-humidity and low-humidity sides. Humidified nitrogen flows on one side of the film, and dry nitrogen (carrier gas) flows at a fixed rate on the other side. Due to the humidity gradient, water vapor permeates from the high-humidity side to the low-humidity side. The water vapor passing through the sample is carried by the flowing dry nitrogen to the electrolytic sensor, and parameters such as the water vapor transmission rate of the sample are obtained through the electrical signal output by the sensor. Electrolytic Method Working Principle Diagram:             Executive Standards 2025 Edition Chinese Pharmacopoeia <4010 Determination Method of Water Vapor Transmission Rate of Pharmaceutical Packaging Materials>, GB/T 21529-2008, ISO15106-3, DIN 53122-2, YBB00092003-2015, ASTM F3299, JIS K7129-3   Technical Parameters Test Range 0.001~40g/(m²·24h) (Film & Sheet) Resolution 0.0001g/(m²·24h) (Film & Sheet) Temp. Control Range 15～45℃ Temp. Control Accuracy ±0.1℃ Humidity Control Range (5～90)%RH Humidity Control Accuracy ±1%RH Permeation Area 50.24 cm² Sample Size Φ100 mm Sample Thickness ≤3 mm Test Quantity 1 piece Carrier Gas 99.999% Nitrogen (User Provided) Carrier Pressure ≥0.1 MPa Carrier Flow 0~100 mL/min Gas Interface 1/8 inch Metal Tube Dimensions 380×620×385mm Weight 25kg Power 450 W Power Supply AC 220 V, 50 Hz   Product Features Core Technology & Upgraded Operation: High sensitivity, precision and stability of the sensor, capable of testing high-barrier materials in electronics, photovoltaic, solar, display and other fields. Brand new pneumatic control system, automatic fixture locks sample with one key, convenient and labor-saving, with excellent sealing performance. Precise Temperature & Humidity Control: Temperature: Bi-directional automatic control via semiconductor cooling plate, accuracy ±0.1℃. Humidity: Dual-airflow (dry & wet) humidity control method, stable and high precision, accuracy ±1%RH. Strong Expandability: With optional accessories, it can test water vapor transmission rate of packages and containers. Excellent Appearance & Real-time Visual Curve: Built-in 11.6-inch high-resolution color touch screen, clear view, sensitive touch. Fully automatic operation, one-key test, automatic judgment and shutdown. Real-time display of 5 groups of curves (permeation rate-time, temp-time, humidity-time, concentration-time), with preview/hide function. Intelligent OS & Global Certification: Self-developed intelligent OS, modular interface, flexible parameter setting. Designed in accordance with GMP Computerized System, with audit trail and multi-level user authority, meeting pharmaceutical industry data traceability requirements. Customizable test reports, multiple data output formats, electronic signature and online report approval. Professional Calibration & Reliable Data: Our company possesses the National Standard Material Classification Certificate for water vapor transmission rate approved by the State Administration of Quality Supervision, Inspection and Quarantine (GBW(E)130543 / GBW(E)130544). Self-developed national standard materials are used for instrument calibration, ensuring accurate, universal and authoritative test data.   Application Fields Packages & Containers Custom fixtures for pharmaceutical BFS, ointment tubes, infusion tubes. Chip Packaging Materials FR-4, BT resin, PI, ABF film, Al₂O₃ ceramic, metal substrate testing. Solar Cell Barrier Materials Solar backsheet, butyl rubber, ALD Al₂O₃, POE, EVA film testing. Display Field Barrier Materials For LCD high-barrier materials such as epoxy resin film, SiNx passivation film, modified PET Other Materials Ultra-high barrier materials for pharmaceutical, food, daily chemical industries.   Why Choose Us ✓ Professional R&D & Manufacturing We have professional R&D team and complete production line, focusing on physical property testing instruments for more than 20 years, providing reliable and stable testing equipment for global customers. ✓ High Precision & Quality Certification Products comply with international standards, equipped with high-precision sensors and intelligent control system, with national standard material certification and authoritative qualification. ✓ Perfect After-sales & Technical Support Global after-sales service network, timely technical guidance, professional training and lifelong maintenance services to ensure worry-free use. Guangzhou GBPI Packaging Equipment Co., Ltd. | Professional Testing Instrument Manufacturer
