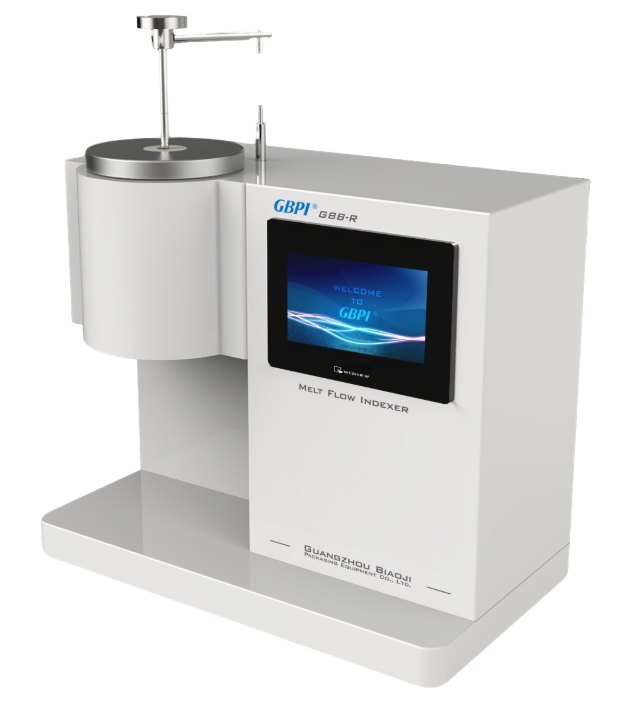

GBB‑R Melt Flow Index Tester: Precision Testing Instrument for Thermoplastic Polymers
Address: No.3 Linjiang Road, Xiagang Subdistrict, Huangpu District, Guangzhou
Tel: +86 15820231129 | Official Website: www.gbpitester.com
Product Introduction
GBB‑R Melt Flow Index Tester is a precision testing instrument for packaging materials, developed and manufactured by GBPI R&D team in accordance with ISO, GB standards and market demands. It is used to determine the melt mass‑flow rate (MFR) and melt volume‑flow rate (MVR) of thermoplastic plastics.
It is suitable for measuring melt flow index under high‑temperature conditions of various polymer raw materials, including polyethylene, polystyrene, polypropylene, ABS resin, polyoxymethylene resin, polycarbonate, nylon and fluoroplastics. It is an ideal instrument for offline or online detection of melt flow index of thermoplastics in plastic raw material production, plastic products, petrochemical and other industries.
Test Principle
Under specified temperature and load conditions, the molten material extruded through a die of defined length and diameter is used to calculate the melt mass‑flow rate (MFR) and melt volume‑flow rate (MVR).
Equipment schematic diagram (image slot): Replace with equipment schematic picture link
Executive Standards
GB/T 3682.1, JB/T 5456, ISO 1133, ASTM D1238
Core Technical Parameters
| Measurement Method | Mass method (MFR), Volume method (MVR) |
| Mass Method Measuring Range | 0~200 g/10 min |
| Volume Method Measuring Range | 0~41.81cm³/10 min |
| Mass Measurement Accuracy | 0.1 g/10 min |
| Automatic Timing for Test | 0.1~999.9 s |
| Temperature Control Range | Room temperature ~450℃ |
| Temperature Control Accuracy | ±0.2℃ (10 mm±1 mm above the top of standard die) |
| Temperature Fluctuation | ±1℃ (10 mm±1 mm above the top of standard die) |
| Displacement Accuracy | 0.1 mm |
| Barrel Temperature Recovery Time After Feeding | ≤4 min |
| Cut‑off Mode | Automatic timed cutting (0.1~999 s), arbitrary cutting |
| Die Outlet Dimension | Φ2.095±0.005 mm, length: 8.000±0.025 mm |
| Barrel Dimension | Φ9.550±0.007 mm, length: 164±0.1 mm |
| Piston Head Dimension | Φ9.474±0.007 mm, length: 6.350±0.100 mm |
| Standard Load | 8 grades from 0.325kg~21.6kg, load accuracy ≤±0.5% |
| Overall Dimension | 500 mm×280 mm×500 mm |
| Power | 600 W |
| Weight | 48kg |
| Power Supply | 220 V，50 Hz |
Product Features
• Advanced configuration and superior technical performance. PLC controlled heating ensures fast heating rate and high constant‑temperature precision with temperature control accuracy of ±0.5℃. It can restore constant‑temperature status within 4 minutes after material feeding. Integrated mass method (MFR) and volume method (MVR), supporting both manual cutting and automatic cutting modes.
Application Fields
Polymer Plastic Raw Materials
It is suitable for melt flow index measurement under high‑temperature of polyethylene, polystyrene, polypropylene, ABS resin, polyoxymethylene resin, polycarbonate, nylon, fluoroplastics and other polymer plastic raw materials.
Conclusion
GBB‑R Melt Flow Index Tester delivers reliable MFR and MVR test results for thermoplastic polymer raw materials. With PLC precise temperature control, dual‑measurement modes and flexible cutting options, it meets offline and online quality inspection requirements for plastic raw material factories, plastic product manufacturers and petrochemical enterprises. It serves as essential quality‑control equipment for polymer material performance evaluation.
