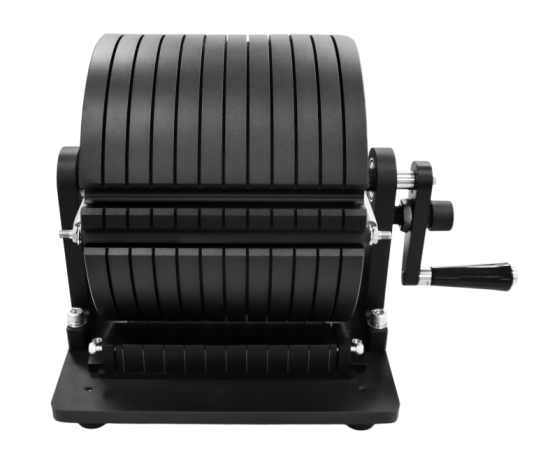

Tensile Test Sample Cutter - LC-1

GBH-2 multifunctional single-column electronic tensile tester for plastics, films, fibers, rubber sheets, composite materials, tapes, soft packaging materials, paper, non-woven fabrics, medicine package materials, syringes, bottlescovers, rubber plugs and other packaging materials are tested for mechanical properties to meet the needs of different users.

  Product Introduction The LC-1S Tensile Tester Special Sample Cutter is used for cutting samples of various materials such as plastic films and paper before experiments like stretching, peeling, and heat sealing. This product features a compact structure, simple operation, and easy maintenance. The cut samples are smooth without burrs, avoiding measurement errors caused by poor sample cutting. Technical Parameters   Item Technical Parameters Sample Cutting Size 15mm×210mm (Width Optional) Number of Samples Cut 10 pieces (Single Layer) Sample Thickness ≤ 1 mm Product Dimensions 400mm×250mm×300mm Weight 12kg   Product Features Made entirely of high-quality steel, with a compact structure, easy to assemble and disassemble. Durable, labor-saving, simple to operate, and convenient to maintain. The cut samples have accurate dimensions, no damage, and smooth edges without burrs. Different sample cutting widths can be customized according to customer requirements.

The popular single-guidance electronic tensile testing machine GBL-H is a mechanical property testing machine developed and manufactured by the Guangzhou Biaoji R&D team based on GB, JIS, ASTM and other standard requirements and market demands. The instrument adopts high-precision sensors, and the force measurement accuracy is within ±1 %FS; professional software support, fully automatic operation, equipped with liquid crystal display screen, real-time display of test curve data and query test report, convenient and fast testing; Choose built-in or external, with perfect limit protection, overload protection, emergency stop and other safety protection functions.

Product introduction GHH universal material testing machine is theGuangzhou international r&d team based on GB, JIS, ASTM, DIN and other standards and market demand to upgrade the mechanical properties of new testing machine, suitable for all kinds of metal, non-metallic materials tensile, stripping, heat sealing, tearing, piercing, compression, bending and shear test, and then calculate the material parameters such as fracture strength, elastic modulus, It can also be used in the medical industry of syringe piston sliding, body tightness test verification. GHH universal material testing machine has a flexible interface and control mode, can do stretching, peeling, and other tests, speed, thickness, clamping distance multi-parameter variable setting; The measuring accuracy can reach 0.5 level; The whole process is controlled by computer, open data structure; The core adopts imported parts, loaded with high-precision ball screw; Control measurement unit, can choose the built-in or external type, with perfect limit protection, overload protection, emergency stop and other safety protection functions. GHH universal material testing machine is suitable for plastic sheet, pipe, profile, plastic film and rubber, wire and cable, steel, glass fiber and other materials of all kinds of physical and mechanical properties test for material development, is the physical property test, teaching research, quality control and other indispensable testing equipment.   Test principle Will be clamped specimen in tensile machine fixture between two chuck, two clip do relative movement, through strength sensor and the machine is located in the moving clamp head built-in displacement sensor, collected test force value change and displacement in theprocess of change, to calculate the sample drawing (tensile strength, elongation at break and the elastic modulus of performance indicators, etc.   Standard JJG 139, ASTM D828,ASTM E4, ASTM D882,ASTM D1938,ASTM D3330,ASTM F904,JIS P8113   Specification   Item  Technical Parameters Measuring Force Range 0～3000 N (Multiple groups of sensors within 20000 N are available for selection) Measuring Force Accuracy Within ±0.5 %FS Test Speed 0~500 mm/min (Stepless speed change) Speed Accuracy Within ±1% of the indicated value Displacement Measurement Accuracy Within ±0.5% of the indicated value Effective Test Stroke 1000 mm Elongation 1100% Effective Test Width 30 mm Force Value Resolution 0.001 N Displacement Resolution 0.001 mm Specification Dimensions L×W×H: 750 mm×500 mm×1800 mm Weight 150 kg Power 600 W Power Supply AC 220 V, 50 Hz Application     Plastic film It is suitable for tensile,  peeling,  heat sealing,  tearing,  puncturing,  compression,  bending and other performance tests of plastic films,  composite materials,  flexible packaging materials,  tapes and other products. Composite film bag It is suitable for tensile,  peeling,  heat sealing,  tearing,  puncture,  compression,  bending and other performance tests of composite films,  co-extruded films,  composite bags,  retort bags,  aluminum-plastic composite bags and other products. Paper It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of paper,  kraft paper,  facial tissue,  toilet paper and other products. Medical Patches It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of medical cold compress,  plaster and other products. Pressure Sensitive Tapes It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of cellophane tape,  electrical insulating tape,  medical zinc oxide adhesive tape and other products.   Features Flexibility and variety of control Supports stretching, peeling, heat sealing, tearing, puncture, compression, bending, shear and other tests, speed, thickness, clamping distance variable parameters set, optional pneumatic fixture, suitable for a variety of fixtures.   High measurement accuracy The test measurement accuracy can reach 0.5 level, high sampling rate (100 times/second), wide speed range, can adapt to high and low speed test, make the test data more accurate.   Imported core components, safe and reliable operation  Using high-precision ball screw loading, the loading is stable, the testing machine has a long life, good long-term stability and energy saving;  A plurality of load/deformation measurement subchannels are proposed, which support multiple sensor expansion measurement. A fully digital control system with imported AC servo system and motor can control the displacement zero flutters.   It has improved safety protection functions such as limit protection, overload protection, emergency stop, etc.  Double column table structure, good rigidity, control measurement unit can choose built-in type (simple appearance, save space) and external type (easy to upgrade, maintenance and separate from the microcomputer operation).   Intelligent operating system  According to the computer system design of the new version of GMP appendix, the test process parameters are flexibly set, and the function of audit tracing (test tracing, log tracing) is provided, which meets the requirements of data traceability and ensures the security and integrity of the test data. You can set different levels of system operation rights.  Intelligent Statistical analysis, support multiple data standard deviation analysis. At the same time, the system can be expanded, such as access to laboratory LIMS system.  Personalized test reports are set on demand to support multiple formats of data output.  Independent test can be separated from the computer, data can be processed automatically, and a built-in micro-printer can print data in real time. The instrument is equipped with computer interface, can also be connected to the computer online detection.   Laboratory intelligentIoT platform It can be connected to the Internet of Things platform to realize digital network management:  Remote login to theIoT platform can be performed by directly accessing the software interface of the instrument.  All experimental data can be viewed anywhere by simply logging in to the platform;  Unified management of experimental data of all instruments in the interface of things platform can be achieved.  A complete laboratory management process can be realized;  One-click application for after-sales service, and one-click application for relevant accessories; After-sales staff can provide remote after-sales service through the system. There is a complete after-sales record on the platform, which is convenient for after-sales staff to provide high-quality online service;  Customers may download the required instrument materials, documents and operation videos on the platform by themselves.

  Product Brief   The GBL-H2 Universal Single-column Electronic Tensile Testing Machine is a mechanical property testing instrument independently developed and manufactured by Guangzhou GBPI R&D team, in compliance with the requirements of standards such as GB and ASTM as well as market demands.   Equipped with high-precision sensors, the instrument features high force measurement accuracy, stable loading, and long service life. The LCD screen, integrated with professional software, displays test curve data in real time and supports test report query, ensuring convenient and efficient testing. With fully automatic operation and control of the measurement unit, it is furnished with comprehensive safety protection functions including limit protection, overload protection, and emergency stop.   Suitable for mechanical property tests such as tension, peeling, heat sealing, tearing, and puncturing of various metal and non-metal materials, the instrument meets the test technology requirements of national technical supervision departments. It is widely applied in quality control of plastic film, food, and pharmaceutical manufacturers, as well as scientific research and teaching experiments in testing institutions and schools.   Test Principle   Fix the treated sample between the two chucks of the fixture, and start the instrument to make the two chucks move relatively. The force sensor installed on the movable chuck collects the force changes during the test, while the built-in displacement sensor of the machine captures the displacement changes, so as to calculate the performance indicators of the sample such as tension, peeling, heat sealing, and tearing.   Tensile test principle diagram   Standard GB 8808、GB 13022、GB/T 1040、GB 4850、GB/T 7753、GB/T 7754、GB/T 453、GB/T 17200、GB/T 16578.1、QB/T 1130、GB/T 2791、GB/T 2790、GB/T 2792、GB/T 7122、GB/T 10004、GB/T 17590、JJG 139、GB/T 6344、GB 10808、YBB 00112003、YBB 00102003、YBB 00132002、YBB 00202004、ASTM D828、ASTM E4、ASTM D882、 ASTM D1938、ASTM D3330、ASTM F904、JIS P8113、QB/T 2358   Specifications Item Technical Parameters Force Measurement Range 0~300 N (0~500 N optional) Force Measurement Accuracy Within ±0.5 %FS of indicated value (Class 0.5) Test Speed 0~500 mm/min (stepless speed regulation) Displacement Precision Within ±0.5% of indicated value Effective Test Width 30 mm (50 mm, 60 mm customizable) Effective Test Stroke 750 mm (1000 mm, 1200 mm customizable) Dimension (L×W×H) 600 mm×500 mm×1300 mm Weight 65 kg Power Supply AC 220 V, 50 Hz   Application   Plastic film It is suitable for tensile,  peeling,  heat sealing,  tearing,  puncturing,  compression,  bending and other performance tests of plastic films,  composite materials,  flexible packaging materials,  tapes and other products. Composite film bag It is suitable for tensile,  peeling,  heat sealing,  tearing,  puncture,  compression,  bending and other performance tests of composite films,  co-extruded films,  composite bags,  retort bags,  aluminum-plastic composite bags and other products. Paper It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of paper,  kraft paper,  facial tissue,  toilet paper and other products. Medical Patches It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of medical cold compress,  plaster and other products. Pressure Sensitive Tapes It is suitable for tensile strength,  peeling,  deformation,  tearing,  heat sealing,  bonding and other performance tests of cellophane tape,  electrical insulating tape,  medical zinc oxide adhesive tape and other products.   Product Features       Elegant, Compact and User-friendly Machine Design   Desktop column structure with an elegant and compact appearance, enabling seated operation for maximum comfort.   Flexible, Versatile and Efficient Testing Methods   Capable of conducting tests including tension, peeling, heat sealing, tearing, and puncturing; supports multi-parameter setting such as width, speed, thickness, and chuck spacing.   High sampling rate (100 times/second) ensures accurate and reliable test data.   Safe and High-end Mechanical Structure   Three-level safety protection; equipped with an emergency stop switch for guaranteed safety; adopts imported core components for high precision and long service life; LCD screen displays test data and working status in real time.   Intelligent Operating System   Supports user management, permission management and audit trail, complying with the requirements of Annex to GMP <Computerized Systems>.   Flexible setting of test process parameters meets the requirements of non-standard tests and scientific research tests.   Allows standalone testing without a computer with automatic data processing; built-in micro-printer enables real-time data printing. The instrument is also equipped with a computer interface for online testing via PC connection.   Laboratory Intelligent IoT Platform (Optional)   Supports access to the laboratory intelligent IoT platform, realizing functions such as test data management and remote fault diagnosis and troubleshooting.

Product Description The LC-2 Sample Cutter is used for cutting samples of various plastic films, paper and other materials prior to stretching, peeling and heat sealing tests. It is easy and efficient to operate and can accurately cut samples of standard required sizes.   Features Meets the sample making requirements for Type 2 specimens of standard GB/T 1040.3. Using imported tungsten steel finely ground special blades, sharp and durable, with hardness up to 92 HRA. Accurate sample size, no damage, smooth and burr-free edges. Spring tensioned for easy sample fixing and smooth sample cutting. The ability to cut up to 12 samples in a single pass allows for efficient production of large batches of samples. Safety protection, the outer layer of the blade is covered with an aricotta stopper so that the blade does not come into direct contact with it. Different sample widths can be ordered to suit the requirements of each customer. Specifications   Item Technical Parameters Sample Cutting Size 15 mm×230 mm (Width is optional) Number of Cut Samples 10 pieces (Single layer) Sample Thickness ≤1mm Product Dimensions 410mm250mm180mm Weight 12 kg

The GBL-L2 popular single-column electronic tensile tester is suitable for tensile, peeling, heat-sealing, tearing and other mechanical performance tests of various metal and non-metal materials. It meets the requirements of the national technical supervision department for test technology. It is widely used in plastic film, food, and pharmaceutical manufacturers to test products quality control and testing institutions, scientific research and teaching experiments in university.

Application GNP-1 Bursting Strength Tester can measure the bursting strength of single-layer or multi-layer paper, and can be used to test the blasting strength of cloth, leather, paper board, thin metal sheet, etc. Use mark transmission pressure, automatically retain the maximum bursting strength value when bursting, decomposition degree is 100 times higher than the needle type.

    Working Principle The spouts go through the hopper and the vibrating feeding tray to the ready position, and is pushed by the spouts to hang on the spouts bracket and rotate with the rotating disc to the pouch processing station. After taking the pouch and turning it over, the pouch to be processed is put on the pouch  fixture on the spout (located directly above the spout holder), the pouch and the spouts are moved together with the turntable to the heat-sealing station for heat-sealing, and the front and rear heat-sealing knives are closed for heat-sealing treatment. The good pouch is pushed by the push-out mechanism to the finished bag storage section for storage. The untreated waste bags are automatically removed with the movement of the turntable to the waste bag rejection port. Technical Specifications Item Technical Parameters Overall Dimensions 2400 x 2200 x 2000 mm (Length x Width x Height) Packaging Types Stand-up Pouches, 3-Side Seal Pouches, Gusseted Bags, Special-Shaped Bags Material Types Pouches: Inner Layer PE, Inner Layer PP Tubes: PE, PP Product Specifications Bag Length: 80~190 mm (L), 70~120 mm (W) Sealing Length: 60~120 mm Straw Sizes: 8.5 mm, 10 mm, 14 mm, 16 mm, etc. Working Speed 80-90 pcs/min Positioning Accuracy ≤0.5 mm Sealing Tools Total 6 groups: 1 Preheating, 4 Heat-Sealing, 1 Cooling Temperature Control Modules 18 groups, Accuracy ±0.1℃ Heating Temperature 0~300℃ Power Supply 380V/50Hz, 11KW Air Supply 0.6~0.8MPa, 2000L/H Equipment Weight 2100 Kg Application Field   Jelly spout bag Soy milk spout bag Toiletries spout bag Puree bag Special-shaped nozzle bag Folding outdoor hydration bag     GBPI Spout Sealing Machine Adopt Advanced System ♦  Spout Sealing Machineconsists of spout delivery system, bag delivery system, heat sealing system, bag collecting system, central control system and base.♦  The spout delivery system consists of chutes, vibrating disks and lead rails. The photoelectric sensors can induce the spouts to control the charging action.♦  The bag delivery system utilizes the pneumatic sucker.The delivery and sealing system have double positions, which doubls the efficiency.♦  The heat sealing system includes a big turntable, heat sealing blades and workstations. There are 6 sets of heat sealing blades: 1set for preheating, 4 for heat sealing and 1for cooling.♦  The workstations are adjustable for bags of different sizes. Customers can order diverse sealing blades for spouts of various types. ♦  Every sealing blade has an independent temperature controller,and runs and debugs independently.♦  The bag collecting system consists of finished products collecting table and waste product recycling table. Photoelectricity sensor and pneumatic control makes the manufacturing process truly automatic.♦  The control panel deploys a touch screen, on which all kinds of parameters can be set, and working status in real time such as complete amount, time, success rate and failure rate can be show. ♦  Other parts: 12 temperature control meter, 18 pressure gages, and 2~4 emergency stop buttons (1 button on each side of the machine). ♦  The base is easy to dismantle, transport and assemble.   Product Fectures 1. Fully automatic; a single set of machine needs only one operator, and the operator just needs to load enough spouts and bags at intervals. 2. Adopting round disc structure, the equipment occupies small space. 3. All the components are made of aluminum and stainless steel, and meet the hygienic and quality requirements of food, pharmaceutical, environmental and industries.  4. Easy to use with precise control; runs stably and works long hours continuously. 5. Adopts imported temperature control module, SMC pneumatic component, Omron PLC control unit to insure the quality, performance, and life of the machine. 6. Automatically detects faults, gives alarms, stops, diagnoses and show where the fault is. Main Components and Their Brands No. Name Brand 1 Servo motor   Made in China 2 Frequency transformer Omron 3 PLC Omron 4 Magnetic switch SMC 5 Photoelectric switch  KEYENCE/Omron 6 Pneumatic component SMC/AIRTAC 7 Temperature control module Omron 8 Splitter  DEX 9 LCD touch screen Omron   Configuration No. Name Quantity 1 Spout sealing machine 1 set 2 Vibrating disk  2 sets 3 Sealing blade  6 sets 4 Bag putting rack 1 set 5 Bag collecting rack 1 set 6 Installation tools 1 set 7 Spefication (User Manual) 1 set   Machine Production Working Samples GF1600-BSpout Sealing Machineis a fully automatic system consists of heat sealing system, spout input system, and bag input system, bag output system, and central control system mounted on single base frame from module. All systems are equipped with electronic sensors and relays to work cordially for efficient and quality manufacturing of packaging bags.

Application GNP-1 Bursting Strength Tester can measure the bursting strength of single-layer or multi-layer paper, and can be used to test the blasting strength of cloth, leather, paper board, thin metal sheet, etc. Use mark transmission pressure, automatically retain the maximum bursting strength value when bursting, decomposition degree is 100 times higher than the needle type.

  1. FunFunction Salt spray test chamber is used for the quality inspection and corrosion resistance test of a variety of materials, including metal plating, metal, electronic components, chemical coatings, paint, automobiles, motorcycles, metal ware, screws, springs, magnetic materials, organic and inorganic coating, anodizing, anti-rust oil industry etc. after the surface treatment.   1. ecGTechnical parameters   1. MODEL GB-OSH-60 2. Temperature inside chamber 35℃±1℃/ 50℃±1℃ 3. Temperature of pressure barrel 47℃±1℃/ 63℃±1℃  4. Inner size W600 x H400 x D450mm   5. External size W1080 x H1080 x D650mm 6. Temperature Uniformity ≤±2℃ 7. Uniformity Fluctuation ≤±0.5℃ 8. Salt fog settlement 1～2ml/h.80cm2 9. Compressed air pressure 1.00±0.01kgf/cm² 10. Spray mode Continuous or intermittent spray optional 11. Power supply AC  220V   50Hz   1.5KW a)  Temp. range: RT+10℃ ~ 55℃ （temperature up to 50C, thickening PVC or PP material is recommended ） b) Humid. range: ≥93%R.H c) Controller time shown: 9.9s~9990hrs d) Timer: 0~9999hrs. e) Testing method: Neutral salt spray test (NSS test), acetic acid salt spray test (AASS test), salt spray test (SS test), copper accelerated acetic acid salt spray test method for salt spray test (CASS test) and so on; (For CASS test, we recommend the PP material chamber with high temperature resistance) f) Specimen holder: It can meet the tilt test at 15 ℃ ~ 30 ℃ (two layers)； g) Air compressor: V-0.013/12.5(Customer provided); discharge pressure:1.25M; flow amount: 0.13m3/min   1. MMMaterial of machine body a) Salt spray chamber adopts the quality PVC reinforced hard plastic plate, the surface is smooth and anti-aging, anti-corrosion; b) Without any FRP material produced on the surface because of discoloration fibrosis. Plastic structure of the chamber is better to meet strong acid salt spray test under long-term without any damage. c) Cover is imported transparent impact-resistant plate which is convenient to test specimen when test, that can cover and the box with a water seal to prevent leakage of salt spray.   2. AccAccording to CSN, JIS, ASTM standards, can be set to constant temperature control: (a) Brine spray test: NSS (neutral); · Temp. inside chamber: 35 ℃ ± 1 ℃ · Pressure air bucket: 47 ℃ ± 1 ℃ (b) Corrosion resistance test: CASS (copper acceleration), AASS (acid) · Temp. inside chamber: 50 ° C ± 1 ° C · Pressure air bucket: 63 ℃ ± 1 ℃   3. Watwatering system. It adopts the auto watering system, supply water when lack of water. 4. HeaHeating system Test temperature inside the cabinets is heated humidification water jacket, the heater adopts advanced titanium protective tube, built-in nickel-chromium alloy infrared heater core. Heating up fast, uniform temperature distribution; and saves about one half of the power compared to FRP tank jacketed heating. 5. ExeExecutive standard GB/T 2423.17 Basic test procedures for electric and electronic products Ka"- salt spray test methods; GB/T 10125 Corrosion tests in artificial atmospheres – salt spray tests; ASTM B368 Test Method for Copper-Accelerated Acetic Acid-Salt Spray (Fog) Testing (CASS Test); JIS Z2371-2000 Methods of salt spray testing etc. ISO 9227 Corrosion tests in artificial atmospheres (Note: 2 collection device is required, bigger models than ZH-SH-90 (270L) is required; In some versions, it specifies over 400liters is necessary)  ASTM B117-18 Standard Practice for Operating Salt Spray (Fog) Apparatus (Note: 2 collection device is required, bigger models than ZH-SH-90 is required )

1 Function Ozone in the atmosphere is very little, while it’s a major factor in rubber cracking, the product simulate and enhance atmospheric ozone condition to study the role of ozone on the rubber, and to rapid identificate and evaluate rubber resistance for ozone aging and anti-ozone agent protection. According to“GB / T7762-2003 Test Method for Static Tensile Test of Ozone Resistance Cured Rubber or Thermoplastic Rubber”,“GB / T2951.21-2008 General Test Method for Insulation and Sheathing Material of Cable”,“GB / T 11206-2009 Rubber Aging test surface cracking method”, and other relevant standards of the test method. 2.1 Structure  All-in-one machine 2.2 Material a) Inner chamber: SUS304 stainless steel plate b) External chamber: SUS304 stainless steel plate or baking finish. Insulation: rigid polyurethane foam + aluminum insulation cotton with double protection. 2.3 Machine door a) Single door, open from left. b) Window frame / door frame with two silicone rubber seal and anti-condensation heating device. c)With observation window (W220xH250mm), lights above the window and door.  2.4 Requirements for sample holder (for dynamic-type only)       a)At both ends of the sample to be fixed with a clamp under the required elongation, the longitudinal direction of the specimen shall be substantially parallel to the direction of air flow when in contact with ozonized air. b) Clamps shall be made of a material (eg aluminum) which does not readily decompose ozone. c) Allow the sample to rotate at a speed between (20 ^ -25) mm / s, in a plane perpendicular to the dry gas flow, with each sample moving continuously along the same path. d) The time of one revolution of the same specimen is (8 ^ -12) min. The scanning area of the specimen shall be at least 40% of the effective area of the test chamber. Specimen preparation shall conform to the provisions of GB / T 9865.1. The test specimen is preferably cut from the new test piece and, if desired, may be cut from the finished product. At least 3 specimens shall be required for per test condition. The standard length of the specimen is not less than 10mm, and thickness not less than 0.2mm. The length of specimen between the two ends of the clamp before drawing is not less than 40mm. 3 Control panel a) Controller display b) Power switch c) Fault alarm d)Wavelength switch e)light switch button 4 Enclosure configuration a) With a stainless steel SUS # 304 shelf turntable b) One φ50mm lead hole:, and with a hole cover and silicone rubber plug. c) Move casters 4 pcs d) Horizontal mounting brackets 4 pcs e) There is a drainage hole in the back of the machine to facilitate the drainage of condensate; (8mm in diameter) Three-phase five-wire cable (four-core cable + protective grounding wire) 1 pc, (three meters long).
