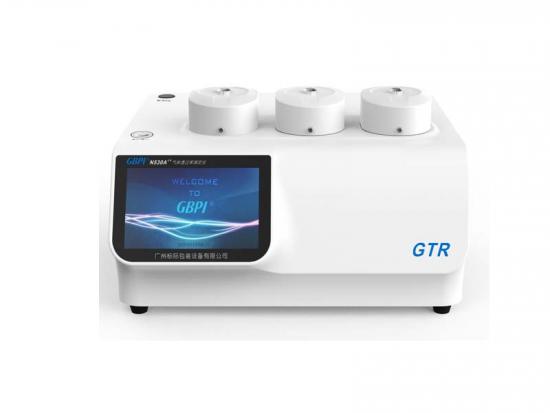

Differential Pressure Method Gas Transmission Tester N530A 2.0

Introduction Based on the test principle of the differential pressure method, N530 is designed with reference to the GB/T 1038 standard and used to test the gas transmission rate (quantity) of film or sheet materials.

Introduction Based on the test principle of the differential pressure method, N530L is designed with reference to the GB/T 1038 standard and used to test the gas transmission rate (quantity) of film or sheet materials.

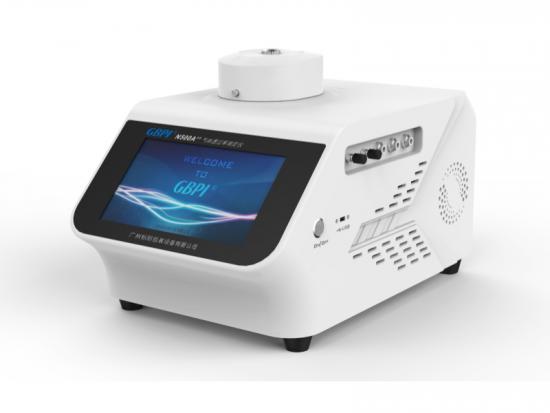

Introduction N530 2.0 is based on the test principle of differential pressure method, It's designed with reference to GB/T 1038, ISO 2556 and other standards. Adopt high-precision pressure sensor and automatic pressure difference keeping technology, high test accuracy. It is suitable for the gas permeability test of films, sheets, papers, packages and related materials in the fields of food, medicine, medical equipment, daily chemicals, photovoltaic electronics, etc. It provides a wide range and high-efficiency gas transmission rate test of high, medium and low gas barrier materials.

Product Introduction This product is based on the test principle of the differential pressure method, and is designed and manufactured with reference to ASTM D1434, ISO 2556 and other standards. With high-precision pressure sensor and automatic differential pressure maintaining technology, this machine has high test accuracy. It is suitable for the gas permeability test of films, sheets, paper, packaging and related materials in food, medicine, medical equipment, daily chemicals, photovoltaic electronics and other industries. It can be used to test high, medium and low gas barrier materials with outstanding efficiency.

Product Introduction The N500A 2.0 Gas Permeability Tester is a high - precision experimental testing equipment that integrates machinery, electronics, and software. It is suitable for testing the gas barrier properties of plastic films, composite films, sheets, metal foils, etc., as well as the gas permeability testing of packaging containers such as plastic, rubber, paper - based bottles, bags, cans, and boxes.

Introduction The N560 2.0 Gas Transmission Rate Tester is a high-precision laboratory testing equipment integrating machinery, electronics and software. It is suitable for the gas barrier property test of plastic films, composite films, sheets, metal foils and other sheet materials, as well as the gas transmission rate test of packaging containers such as bottles, bags, cans and boxes made of plastics, rubber, paper and other multi-type materials.

Product introduction:        DSC is the company's highest precision differential. The sensor is made of imported e-couple with high sensitivity.Signal acquisition circuit shielding protection, strong anti-interference, high baseline stability. The DSC is a touch screen type, which can be used for glass transition temperature test, phase transition test, melting and enthalpy test, product stability and oxidation induction period test.Wide range of application   Technical parameters: 1. Temperature range:Room temperature ~550 ℃ air cooling 2. Temperature resolution: 0.01℃ 3. Temperature fluctuation:±0.1℃ 4. Temperature repeatability:±0.1℃ 5. Heating rate: 0.1～100℃/min 6. Constant temperature time: program setting ≤ 24h 7. Temperature control mode: heating, constant temperature, 8. DSC range: 0～±600mW 9. DSC resolution: 0.01uW 10. DSC accuracy: 0.001mW 11. Working power supply: Ac220vv50 Hz or customized 12. Atmosphere control gas: nitrogen, oxygen (instrument automatic switch) 13. Gas flow: 0-300mllmin 14. Gas pressure: 0.2MPa 15. Display mode: 24 bit color, 7 inch LCD touch screen display 16. Data interface: standard USB interface 17. Parameter standard: With reference materials (indium, tin), users can adjust the temperature by themselves 18. The upper computer is a three in one operation software, which is also suitable for thermogravimetry and synchronous instruments. 19. The instrument has several groups of thermocouples, one for sample temperature, one for furnace body temperature and one for internal environment temperature Technical features: 1. Industrial level 7-inch touch screen, display information rich. 2. New metal furnace structure, better baseline and higher precision.Indirect conduction mode is adopted in heating, which has high uniformity and stability, and reduces pulse radiation, which is better than traditional heating mode. 3. USB communication interface, strong versatility, reliable communication, support self recovery connection function. 4. Automatic switching of two-way atmosphere flow, fast switching speed and short stable time.At the same time, a protective gas input is added. 5. The software is simple and easy to operate.

GBB-A Heat Seal Tester accurately test the heat seal temperature range, heat seal strength, suitable heat seal speed and heat seal pressure of plastic film, flexible packaging composite film, coated paper, aluminum foil, etc. It is applied to the quality control of various plastic film, food and drug manufacturer, the scientific research and teaching experiment of testing institutions and schools

A303 water vapor permeability analyzer comfirms to standard ASTM E96/E96M-2016、ASTM D1653-2013

    Working Principle The spouts go through the hopper and the vibrating feeding tray to the ready position, and is pushed by the spouts to hang on the spouts bracket and rotate with the rotating disc to the pouch processing station. After taking the pouch and turning it over, the pouch to be processed is put on the pouch  fixture on the spout (located directly above the spout holder), the pouch and the spouts are moved together with the turntable to the heat-sealing station for heat-sealing, and the front and rear heat-sealing knives are closed for heat-sealing treatment. The good pouch is pushed by the push-out mechanism to the finished bag storage section for storage. The untreated waste bags are automatically removed with the movement of the turntable to the waste bag rejection port. Technical Specifications Item Technical Parameters Overall Dimensions 2400 x 2200 x 2000 mm (Length x Width x Height) Packaging Types Stand-up Pouches, 3-Side Seal Pouches, Gusseted Bags, Special-Shaped Bags Material Types Pouches: Inner Layer PE, Inner Layer PP Tubes: PE, PP Product Specifications Bag Length: 80~190 mm (L), 70~120 mm (W) Sealing Length: 60~120 mm Straw Sizes: 8.5 mm, 10 mm, 14 mm, 16 mm, etc. Working Speed 80-90 pcs/min Positioning Accuracy ≤0.5 mm Sealing Tools Total 6 groups: 1 Preheating, 4 Heat-Sealing, 1 Cooling Temperature Control Modules 18 groups, Accuracy ±0.1℃ Heating Temperature 0~300℃ Power Supply 380V/50Hz, 11KW Air Supply 0.6~0.8MPa, 2000L/H Equipment Weight 2100 Kg Application Field   Jelly spout bag Soy milk spout bag Toiletries spout bag Puree bag Special-shaped nozzle bag Folding outdoor hydration bag     GBPI Spout Sealing Machine Adopt Advanced System ♦  Spout Sealing Machineconsists of spout delivery system, bag delivery system, heat sealing system, bag collecting system, central control system and base.♦  The spout delivery system consists of chutes, vibrating disks and lead rails. The photoelectric sensors can induce the spouts to control the charging action.♦  The bag delivery system utilizes the pneumatic sucker.The delivery and sealing system have double positions, which doubls the efficiency.♦  The heat sealing system includes a big turntable, heat sealing blades and workstations. There are 6 sets of heat sealing blades: 1set for preheating, 4 for heat sealing and 1for cooling.♦  The workstations are adjustable for bags of different sizes. Customers can order diverse sealing blades for spouts of various types. ♦  Every sealing blade has an independent temperature controller,and runs and debugs independently.♦  The bag collecting system consists of finished products collecting table and waste product recycling table. Photoelectricity sensor and pneumatic control makes the manufacturing process truly automatic.♦  The control panel deploys a touch screen, on which all kinds of parameters can be set, and working status in real time such as complete amount, time, success rate and failure rate can be show. ♦  Other parts: 12 temperature control meter, 18 pressure gages, and 2~4 emergency stop buttons (1 button on each side of the machine). ♦  The base is easy to dismantle, transport and assemble.   Product Fectures 1. Fully automatic; a single set of machine needs only one operator, and the operator just needs to load enough spouts and bags at intervals. 2. Adopting round disc structure, the equipment occupies small space. 3. All the components are made of aluminum and stainless steel, and meet the hygienic and quality requirements of food, pharmaceutical, environmental and industries.  4. Easy to use with precise control; runs stably and works long hours continuously. 5. Adopts imported temperature control module, SMC pneumatic component, Omron PLC control unit to insure the quality, performance, and life of the machine. 6. Automatically detects faults, gives alarms, stops, diagnoses and show where the fault is. Main Components and Their Brands No. Name Brand 1 Servo motor   Made in China 2 Frequency transformer Omron 3 PLC Omron 4 Magnetic switch SMC 5 Photoelectric switch  KEYENCE/Omron 6 Pneumatic component SMC/AIRTAC 7 Temperature control module Omron 8 Splitter  DEX 9 LCD touch screen Omron   Configuration No. Name Quantity 1 Spout sealing machine 1 set 2 Vibrating disk  2 sets 3 Sealing blade  6 sets 4 Bag putting rack 1 set 5 Bag collecting rack 1 set 6 Installation tools 1 set 7 Spefication (User Manual) 1 set   Machine Production Working Samples GF1600-BSpout Sealing Machineis a fully automatic system consists of heat sealing system, spout input system, and bag input system, bag output system, and central control system mounted on single base frame from module. All systems are equipped with electronic sensors and relays to work cordially for efficient and quality manufacturing of packaging bags.

GBPI Electronic Leakage Tester Application: To test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in industries of food, beverage, pharmaceuticals, personal care and so on.

Full-automatic Total Migration Tester AUTO ZF1800G has an integrated system design of water bath evaporation, heating, drying, cooling, and constant temperature weighing. The testing process is fully automated without manual operation. It is suitable for testing the overrall migration (non-volatile matter, evaporation residue) and other items in the fields of purified water, pharmaceutical packaging materials, food packaging, cigarette tipping paper and chemical reagents. It can also be applied to the water content, loss on drying and other items of solid samples, and the total dissolved solid content test in water quality testing.
