packaging testing equipment Water Vapor Permeation Tester
Products
Home /

Water Vapor Permeability Analyzer

/W806 Cup Method-Moisture vapor transmission rate (MVTR)

W806 Cup Method-Moisture vapor transmission rate (MVTR)



Inquiry now
Product Detail


product description

This product is based on the principle of water vapor transmission test by cup method and designed and manufactured with reference to ASTM E96, standard, providing a wide range and high efficiency water vapor transmission rate test for low, medium and high water vapor barrier materials.
It is suitable for water vapor transmission performance testing of films, sheets, papers, fabrics, nonwovens and related materials in the fields of food, pharmaceuticals, medical devices, daily chemicals, etc.

Test principle

Desiccant inside the specimen cup (weight gain method) or place water (weight loss method); seal the specimen cup with the specimen and place it inside the test chamber; control the temperature, humidity and wind speed of the test chamber; the difference of humidity inside and outside the specimen cup, drive the water vapor to penetrate the specimen, the mass of the specimen cup increases or decreases; weigh the mass of the specimen cup at regular intervals and calculate the water vapor transmission amount of the specimen and other performance parameters.

Standard

ASTM E96GB/T 1037ASTM D1653ISO 2528TAPPIT464DIN 53122-1YBB00092003

Technical parameters

Item

Technical parameters

Test range

film0.05~10,000 g/(m2·24h) Container0.0002~30 g/(pkg·24 h)

Test precision

film0.05 g/(m2·24h)Container0.0002 g/(pkg·24 h)

Test station

12 Pieces

Balance range

210 g

Balance indexing

0.1 mg

Temperature range

10~50±0.1 ℃

Humidity range

5%95%100% RH

air speed

0.5~2.5 m/s0.03~0.5 m/s optional

Sample size

Φ74 mm

Sample thickness

≤3 mm

Test method

weight gain method, weight loss method

Standard test area

33 cm2

Carrier gas specification

Air compressor

Air pressure

≥0.6 MPa

Connection size

Φ6 mm Polyurethane tube


Send A Message

Leave us a message, we will get back to you ASAP.

Related Products
water vapour permeation tester Water Vapor Permeability Analyzer Gravimetric Method - W303

A303 water vapor permeability analyzer comfirms to standard ASTM E96/E96M-2016、ASTM D1653-2013

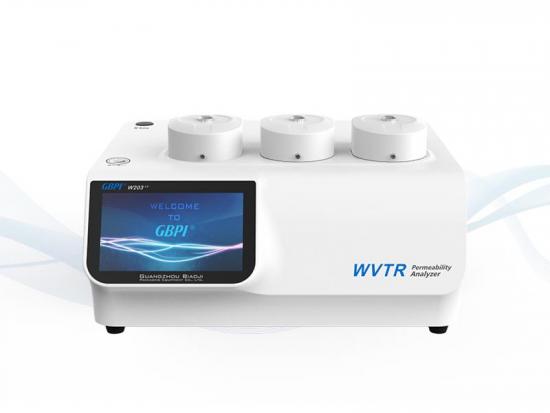

Water Vapour Permeation Analyzer Water Vapor Permeability Tester electrolytic sensor method -W203
