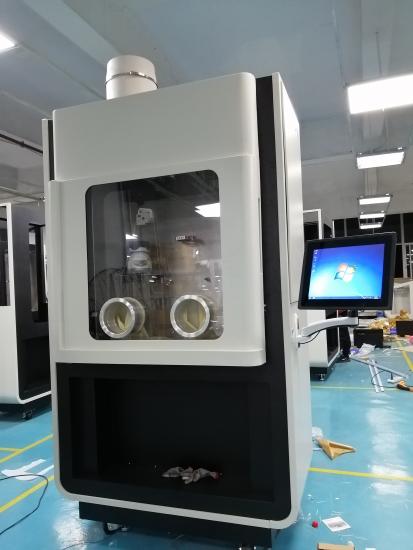

Mask Bacterial Filtration Efficiency (BFE) Tester - GB-XF1000

It is used to test the percentage of materials containing bacteria suspended particles at the specified flow rate.

  • Brand:

    GBPI
  • Item NO.:

    GB-XF1000
  • Payment:

    T/T
  • Product Origin:

    Guangzhou
  • Shipping Port:

    Guangzhou
  • Lead Time:

    30-50
Inquiry now Download
Product Detail

Application


It is used to test the percentage of materials containing bacteria suspended particles at the specified flow rate. The dual gas path simultaneous comparison sampling method is used to improve the accuracy of sampling, which is suitable for the performance testing of bacterial filtration efficiency of medical surgical masks by metrological inspection departments, scientific research institutes, medical mask manufacturers and other relevant departments.


Medical Masks bacterial filtration efficiency tester also called BFE test machine is to determine the bacterial filtration efficiency (BFE) of medical face mask materials by employing a ratio of the upstream bacterial challenge to downstream residual concentration of the tested medical face mask materials. The tester provides certain flow rate of bacterial aerosol. The operator can measure the number of colony forming units passing through the medical face mask material, which is clamped between a six-stage Anderson cascade impactor and an aerosol chamber, expressed as a percentage of the number of colony forming units present in the challenge aerosol.

Standards

YY0469-2004、YY/T 0969-2013、ASTMF2100、ASTMF2101、EN14683


Specifications:


Key Specification



Specification Range

Resolution

Accuracy

A Route Sampling Flow

28.3L/min

0.1L/min

Within ± 2.%

B Route Sampling Flow

28.3L/min

0.1L/min

Within ±2.%

Spray Flow

(0.1~10)L/min

0.1L/min

Within ±2.5%

Peristaltic Pump Flow

(0.001~3.0)mL/min

0.001ml/min

Within ±2.5%

Front Pressure of A Route Sampling Flowmeter

(-20~0)kPa

0.01kPa

Within ±2.5%

Front Pressure of B Route Sampling Flowmeter

(-20~0)kPa

0.01kPa

Within ±2.5%

Front Pressure of Spray  Flowmeter

(0~300)kPa

0.1kPa

Within ±2.5%

Ambient Temperature

(-40~99)

0.1

Within ±2.5%

Negative Pressure of the Aerosol Chamber

(-90~-120)Pa

0.1Pa

Within ±2.0%

Negative Pressure of the Cabinet



-50~-200pa

Data Storage Ability

>100000 sets


Vortex Mixer Test Tube Specification and Quantity


Φ16×150mm test tube8pcs


High Efficiency Particulate Air Filter Properties

Filter Efficiency≥99.99% for particles> 0.3μm

Median diameter of aerosol generator mass

Average diameter: (3.0±0.3)μm; Geometric Standard Deviation≤1.5

Double Routes 6-lever Andersen Sampling apparatus

Level1>7μm;          Level 2: (4.7~7)μm;

Level 3: (3.3~4.7)μm;  Level 4: (2.1~3.3)μm;

Level 5: (1.1~2.1)μm;  Level 6: (0.6~1.1)μm

Size of Aerosol Chamber



600×85×3mm (Length×Diameter×Thickness)

Total number of positive quality control sampler particles



(2200±500)cfu

Negative Chamber Flow Speed

≥5m3/min

Size of Negative Pressure Chamber Door(W×D)

1000×730mm

Size of Main Machine(W×D×H)

1180×650×1300mm

Size of Supporting Frame(W×D×H)

1180×650×600mm, Height within 10cm is adjustable

Noise of the Tester

<65dB(A)

Weight



150kg

Power Supply

AC220V±10%, 50Hz

Power Consumption



<1500W


Features

1. Negative pressure experiment system to ensure the safety of operators;

2. Negative pressure cabinet with built-in peristaltic pump and A and B two-way six-stage Andersen;

3. The flow rate of the peristaltic pump can be set;

4. Dedicated microbial aerosol generator can set the volume of bacterial liquid spray flow, and the atomization effect is good;

5. Embedded high-speed industrial microcomputer control;

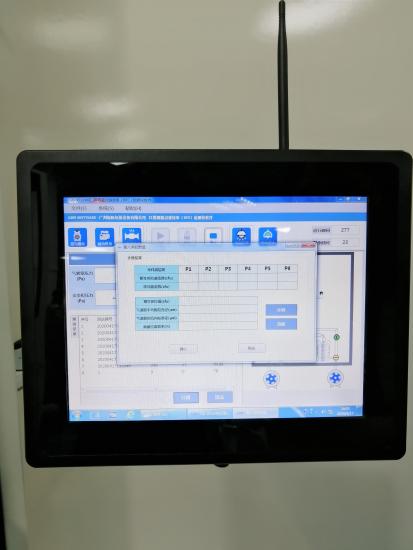

6.10.4-inch industrial-grade high-brightness color touch display;

7, USB interface, support U disk data transfer;

8. Built-in high-brightness lighting in the cabinet;

9. Built-in leakage protection switch to protect operator safety;

10. Insulation and flame retardant between inner and outer layers;

11. The front switch glass door is convenient for experimenters to observe and operate;

12. Detachable stand, the height of stand is adjustable;

13. Support and move dual-purpose casters.


Note: GBPI is always committed to product innovation and improved performance, so accordingly product technical specifications are subject to change without notice. GBPI reserves the right to amend and the final power of interpretation.
