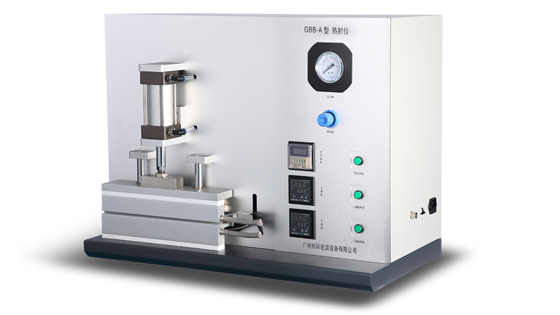

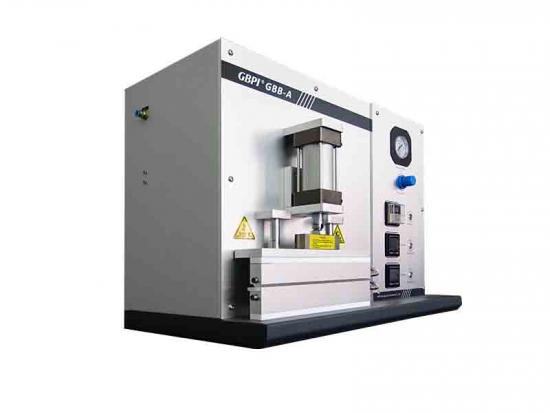

Heat Seal Tester is to test the temperature, pressure, and time for heat sealing of various film materials.

Heat Seal Analyzer widely used in industries of plastic films, food, pharmaceuticals, inspection agency, research institute and so on,it is to test the temperature, pressure, and time for heat sealing of various film materials.

  GBB-A3 Heat Sealing Tester Product Introduction GBB-A3 heat sealing tester accurately measures heat sealing temperature, time, pressure and other performance parameters of lid films for jelly cups, yogurt cups, coffee capsules, instant noodle buckets, meal boxes, medical blister packs and other food & pharmaceutical packages. Optimal sealing conditions can be confirmed precisely by testing sealing properties of different materials. Testing Principle Install matched fixture on the lower support plate and place sample steadily. Set sealing temperature, time and pressure as required, then start the device. The upper fixture descends to complete sealing. In manual mode, step on foot switch to press sealing cutter with fixed sealing duration. In automatic mode, upper and lower cutters perform cyclic sealing automatically according to preset parameters. Compliance Standards QB/T 2358-1998, ASTM F 2029, YBB00122003-2015 Technical Parameters Temperature Range Room temperature ~ 250℃ Temperature Accuracy ±1℃ Sealing Time 0.1s ~ 99.99h Sealing Pressure 0~1 MPa Operation Mode Manual & Automatic Air Source Compressed air Overall Dimension 730×400×535 mm Weight 45 kg Power 1200 W Power Supply AC 220V, 50Hz Product Features Pull-out Loading Design Double-layer lower plate enables pull-out feeding, keeping away from sealing cutter for safe and convenient operation. High-precision Temperature Sensor PID temperature control ensures accuracy up to ±1℃, featuring excellent stability and low failure rate. Dual Optional Test Modes Automatic mode realizes repetitive fast sealing; manual mode equipped with foot switch for simple and safe operation. New Pneumatic Driving System Composed of pressure gauge, regulating valve and cylinder, air pressure can be precisely adjusted for efficient sealing. Customized Service Available Custom fixtures fit various cup sizes. Anti-stick sealing cutter and customizable shape, size & smoothness meet diverse research demands. Application Fields Jelly Cup Yogurt Cup Coffee Capsule Medical Blister Pack

  GBB-C Vertical Heat Sealing Tester Product Introduction GBB-C vertical heat sealing tester accurately measures heat sealing temperature, time, pressure and other performance parameters of plastic stand-up pouches, paper-plastic composite pouches and metal composite pouches. Optimal sealing conditions can be confirmed by testing sealing characteristics of different packaging materials. Testing Principle Place sample on the lower support plate and adjust height properly. Set sealing temperature, time and pressure as required, then start the device. The upper fixture seals samples automatically according to preset parameters. Step on foot switch to complete sealing in manual mode. In automatic mode, cyclic sealing runs repeatedly following set duration. Compliance Standards QB/T 2358-1998, ASTM F 2029, YBB00122003-2015 Technical Parameters Temperature Range Room temperature ~ 250℃ Temperature Accuracy ±1℃ Sealing Time 0.1s ~ 99.99h Sealing Pressure 0~1 MPa Sealing Surface 300×5.5mm smooth cutter, lower rod with silicone pad Operation Mode Manual & Automatic, external cylinder Air Source Compressed air Overall Dimension 730×400×540 mm Weight 33.8kg Power 1200 W Power Supply AC 220V, 50Hz Product Features Independent Temperature Control Temperature sensors installed at the rear of sealing cutters, inner and outer cutters support separate temperature setting. Dual Optional Test Modes Automatic mode realizes efficient repetitive sealing; manual mode equipped with foot switch for safe and easy operation. Advanced Pneumatic Driving System Composed of pressure gauge, regulating valve and cylinder, air pressure can be precisely adjusted for stable and efficient sealing work. Comprehensive Customization Service Anti-stick coating upgrade available. Customizable shape, size and surface smoothness meet diversified research demands. Application Fields Plastic Stand-up Pouch Paper-plastic Stand-up Pouch Aluminized Stand-up Pouch Boxed Milk

GBB-F1 Heat Seal Tester is to test the temperature, pressure, and time for heat sealing of various film materials. It is applied to quality inspection organizations, drug control institutions, research institutes, packaging, thin film, food companies, pharmaceutical enterprises, personal care industry and so on.

  1.Profile Xenon lamp aging test chamber simulates the full spectrum lamp with Xenon arc lamp to reappear the destructive wave. It serves for the environmental simulation and accelerated test for research and development, product development and quality control. Besides, the chamber also applies to the choice of new material, weathering test after composition of material and improvement for the current material. It simulate different environment, and show the material changes under the explosion of sunlight.   The chamber meets the standard: GB/T16585-1996 , GB14522-93 , GB/T16422.3-97, ASTM D2565 and so on. The Chamber is to determine the color fastness, aging resistance of textiles, plastics, coatings, rubber products or other materials by objecting to the simulated conditions of nature weather (sun, rain, temperature and humidity, etc.).     Technical parameters   2.Material of construction u Full spectrum lamp u Optional filter system u Water spraying function u Humidity control u Temp. control system in the chamber u Sample fixed hold of irregular shape u USA imported xenon arc lamp u Easy installation and operation, seldom daily maintainance. u Service life time deepens on the irradiance level, usually 1600hrs. It’s easy to replace the lamp, with filter of long service life time to ensure the necessary spectrum. 3.Technical parameters Model No., equipment name GB-OXD-15P Xenon aging test chamber Interior sizes   W500×D500×H600mm  Exterior sizes W1050×D1050×H1750mm (or so) Temperature range 0℃～80℃ Controller imported programmable 7inch touch screen Machine components material inner and outer 304# stainless steel Sample holder Aluminum alloy frame base Protection device residual-current circuit breaker (RCCB) to control the warning for loop overload, thermal protection and water shortage protection. Temp. deflection ±2℃  (without lighting) Humidity range 30％～98％R.H Humid. deflection ±2.5%R.H(Humid.≥75%R.H); ±3%R.H(Humid.≤75%R.H) without lighting Light source imported full spectrum xenon arc lamp(average useful life 1600hrs) Raining time 1～9999min (adjustable) Raining period 1～240min, interval（cut）adjustable lamp power Test period for Temp., irradiation, condensation, spray can be adjustable Lamp 1.8KW Wave length range 290-800nm heating power (or so) 4.0KW humidification (or so) 2.0KW Light irradiance 1200w/m2 Distance between arc center and sample holder: 350～380mm Revolving speed of sample holder ≥1r/min  water spray period a. spray time: 0～99h59min (Continuing or adjustable) b. stop time: 0～99h59min, (Continuing or adjustable)   lighting time Continuing programming control available black panel temp. 85±3℃ cooling method Mechanical wind cooling; Room temp. less than 26℃ is recommend, relative humid: ≤85%R.H; humid. and temp. tested after 2 hours under idle condition. 4.Temperature & humidity running control system controller imported programmable 7inch touch screen precision range set precision: temp. ±0.1℃, humid: ±2％R.H, indicated precision: temp.±0.1℃,humid.: ±1％R.H temp. & humid. sensor Platinum Resistance(PT100Ω/MV) black panel temp. double-metal black panel temp. thermometer water-supplying system auto-control humidication water-supplying, Xenon arc lamp with cycling cooling water circulation system low noise heat-resistance conditioning motor, multi-blade centrifugal wind wheel control system mainly consists of operation panel, central controller, kinds of key-pressing sw., status indicating lamp, excution electric device etc.. 5.Structure section of machine body The chamber consists of several section: chamber body, control system, refrigeration system, heating system, humidation system, wind system, raining system, lighting system and so on. Chamber body a. With integrated structure, the chamber consists of up left part as working room, up right part as electric controller which is convenient to control, down part as compressor cooling group, sample holder rotation device, Xenon lamp condensation water box, water pump and other executive devices. b. Inner wall of chamber adopts international SUS304# material. c. Temp. insulation material is polyurethane foam and ultra-fine fibre glass, with good temp. insulation result, no frost and condensation on the external surface of chamber. d. condensate water outfall set at the bottom of chamber e. Environmental heat-resistance silicon sealing tape as the material of door frame. f. Viewing window with eye-protective film on its surface to protect eyes from being injured by Xenon lamp. external chamber body a. Seal of door adopts the double-layer of refined silicone rubber with reliable sealing effect and no aging or hardening phenomenon under high or low temperature. b. Single door (embedded handle); c. Viewing window, antifrost device and lamp equipped on the door viewing window Size：25 cm W × 30 cm H；equipped with Anti-radiation hollow glass 6.Electric control section of chamber a. As the core part of chamber b. Air pressure switch as the main switch to control the main circuit; c. Safety measures for electric section: it warns and cut electricity automatically after tested the action from following protection devices: a) overheat protection in working room b) lockage of phase, leakage protection c) overcurrent protection of motor d) overpressure/overload protection of cooling machine e) short out/overload protection of heater, humidifer f) fusing protection of fuse 7.Working section of chamber Condensation section of compressor. a.Cooling system: as the core part of cooling system, we adopt one set of compressor of Tecumseh from France in this case to ensure the cooling requirement in the working room. b.For adjustment technology and design of cooling system, we take an efficiency processing way to ensure the adjustment for the cooling amount and consumption of cooling system under the normal running, to make the failure rate down to the economical statue. c.Cooling evaporator: it locates in interlayer at one side of chamber which ventilate by force from blast motor to exchange heat fast. d.Cooling method of cooling system: forced air cooling Cooling refrigerant：Environmental R404a； Heating system a. Heating method: heating directly in the chamber; b. Military level stainless steel heating tube used, with fast and stable heating to keep temperature in the working room from rapid change. It with corrosion resistance, anti-high-low temperature, no leakage and other advantages. c. With SSR (solid relay)output control, without noise, reliable working, long service life time, fast switching, low interference from outside, and easy operation etc.. Rain system.   it consists of nozzle, solenoid valve, water-supplying and connecting pipe. Lighting system. It consists of xenon lamp, lamp cover, lamp contactor and other controlling parts. Energy compensation is got by adjusting samples distance, pressure and current. Wind system  It locates in the interlayer at the back of chamber, there are heater, fan blade, evaporator, PT100 temperature samples sensor etc.. when wind machine running, the air is intaken to the channel from working room, and blow out from the bottom after cooled; the air exchanged in the working room with samples is intaken again to the channel and mix; after several circulation, it will reach the purposed temperature, and ensure the high index of temp. and humid in the chamber at the same time. Cooling dehumidification system take the compressor of world brand Tecumseh from France to keep constant temperature, decrease the humidity in the working room and cool the xenon lamp. Humidification Steam generator: to generate steam from water Water level control: control the water inlet by solenoid valve, and water level by liquid level switch to provide the signal for water-supply and warning. Air circulation section Cycling channel and winding machine inside the chamber, it uses the high efficiency cooling machine and energy adjusting system, efficiency heat exchange to reach the aim of temperature change, which also improves the airflow and heat exchange between airflow, heating and humidification, as a result, it improves the humidity uniformity in the working room. 8. Enclosured files: operation manual, warranty card 9. Machine running requirements Temp. 5℃~+32℃ Humidity ≤85% Power supply AC220（±10%）V/50HZ    10. Core components parts Remark: replacement of some small parts of the same quality is possible because of material shortage.

Introduction The N560 2.0 Gas Transmission Rate Tester is a high-precision laboratory testing equipment integrating machinery, electronics and software. It is suitable for the gas barrier property test of plastic films, composite films, sheets, metal foils and other sheet materials, as well as the gas transmission rate test of packaging containers such as bottles, bags, cans and boxes made of plastics, rubber, paper and other multi-type materials.

N500 Gas Permeability Analyzer to test the gas (O2, N2, CO2 etc) transmission rate (GTR) of packaging materials, films and sheets materials

Introduction Factory use vacuum freeze dryer is suitable for drying product such as food, drug products, biological products, Chinese medicine and more. It is to dry product at low temperature to preserve, stabilize, store and increase the life of products.. Freeze vacuum drying is a new type of box structure introduced by the vacuum freeze dryer that combines the refrigeration system, vacuum system, heat transfer oil heating system, and moisture removal system. It uses the space for storing materials in the box to dry. Main Technical Parameters   Item GB-LGJ-200F Drying chamber Freeze-drying area 2.25m2 Layers of shelf 5+1 Temperature scope of shelf -50℃-+70℃ (no-load) Shelf temperature error ±1℃ (in balance) Shelf spacing 70mm Size of shelf 500mm*900mm Condenser Min. Temperature of condenser ≤-70℃ (no-load) Water-capture capability ＞30Kg Liquid material 22L（thickness 10mm） Defrosting Electric defrosting Final Vacuum degree ≤ 5Pa Style of cooling Fan cooling Main functions Manual + Auto Control Mode, Sensor calibration, Intelligent temperature control, Freeze drying termination reminding and other functions are available.               Technical parameters □ Main configuration   Shelf effective area 2.25 m2 □ Specification   Shelf size 500mm × 900mm   Shelf numbers 5＋1（Radiation layer） Top shelf as temperature compensating plate   Material number plate 10 pcs   Shelf spacing 70 mm   Shelf temperature range -50℃～+70℃ （no-load）   Min. condenser temp. ≤ -70℃  （no-load）   System final vacuum degree ≤ 5Pa □ Basic configuration    Installation Power 13.5KW     ★ This is installed power, not operating power. □ Shape and other parts   Dimension（mm）： About 1200x2100x1700mm, L*W*H   Weight（Kg）：  About 1200   Noise ≤ 80dB   Electrical system Ground protection   Design, production, installation standards According to GMP, GB/T522 6.1-1996   Whole machine test Test, verify data, methods, and equipment support □ Drying chamber components   Shape Rectangular   Roughness of inner wall Ra ≤ 0.6μm   Opening direction Clockwise or anticlockwise (overlooking ,user confirm)   Chamber material AISI 304  stainless steel ◆  Door  material ACRYLIC   Working temperature ≥ 70℃   Thermal insulation material Polyurethane foam □ Shelf components ◆ Shelf material AISI 304  Top and bottom plate thickness 5mm ◆ Shelf structure AISI 304 stainless steel （Patent No. :ZL201020237059.X）   Roughness of shelf Ra ≤ 0.6 μm   Flatness ≤ ±0.5mm / m   Effective shelf size 500mm×900 mm   Amount of shelf 5＋1     Effective area of shelf 2.25m2 ◆ Shelf spacing  70 mm   Temperature decreasing rate +20℃ down to -40℃/ within 60 min, (no-load, entrance of silicon oil )   Temperature elevating rate -40℃ up to +20℃/ within 60 min, (no-load, entrance of silicon oil ) ◆ Shelf lowest temperature ≤ -50℃      (no-load, entrance of silicon oil )   Shelf highest temperature ≥ +70℃    (no-load, entrance of silicon oil )   Shelf temperature error ≤ ±1℃ ≤ ±1℃ ( in balance ) □ Condenser components   Condenser Shape Vertical type, cylindrical Compact structure, better water capture ,easy to clean and defrosting ◆ Condenser material AISI 304   Condenser water capture ≥ 30Kg   Condenser temp. Decreasing +20℃--40℃, within 30 minutes ◆   Condenser Min. temp. ≤ -70℃   Defrosting Electrochemical cream ◆ Thermal insulation material Polyurethane foam □ Refrigeration system   Refrigerator France original imported TECUMSEH full closure compressor ◆ Refrigerant Environmentally friendly refrigerant   Refrigerator number 2 sets   Shelf refrigeration 1 sets (shelf refrigeration at same time, indirect refrigeration)   Condenser refrigeration 1 set (shelf refrigeration at same time, direct refrigeration) ★ World famous devices are used to make sure correct, stable, safe and reliable.   High pressure protection device When system’s air discharge pressure exceeds allowed pressure, machine automatically stops working, to avoid an accident.   expansion valve DANFOSS（Denmark)   Top cover valve Castel（Italy）   solenoid valve DANFOSS（Denmark）   Oil separator ZOER   High pressure controller DANFOSS（Denmark）   Disacidify filter DANFOSS（Denmark）   Pressure meter LR/REFCO LR/REFCO(Germany/Swiss) oil submerge  pressure meter   Water cooling condenser Well-known brand □ Vacuum system ◆ Double stage rotary vane pump Tan's Vacuum Pump   Quantity 1 set ◆ Vacuum gauge Reborn   Chamber pumping rate Atmosphere→10 Pa ≤30 minutes(in dry condition)   System Maximum vacuum ≤ 5Pa   System leaking rate ≤ 10 Pa·l / sec □ Liquid circulation system ◆   Liquid low viscosity silicon oil ( 25℃, 5cst ) National qualified product   Liquid tubing material AISI 304, welding, heat  keeping ◆ Circulation pump ★GRUNDFOS, original imports, web rotor canned pump From Denmark brand, world famous brand   Circulation pump quantity 1 set   Heating rate 4kW   Heating control style Solid-state relay ◆ Stainless steel plate heat exchanger Well-known brands   Temperature sensor PT-100 platinum resistance □  Control system ◆ Control style Automatic and manual control ◆ Control system FD-PILOT   Control board SH-HPSC-II   Touch screen MCGS   Intermediate relay CHINT   AC contactor CHINT   Air circuit-breaker CHINT   Wiring terminals: Well-known brands □ Safety protection   Whole machine protection All safety conditions are ready for whole machine, machine can start running.   Operation protection Electrical system have logic interlock, control and protection function   Vacuum pressure Available   Heating system Available   Power cut and supply With safety protection measure   Products protection during sublimation process Heat cutting if vacuum lack   Condenser protection when vacuum pump start Interlock □ Whole machine design   Power 3Ph+N+PE, 380V   Installed power 13.5 KW (this is installed power, not running power)   Whole machine structure Integrated structure (easy for transport and placement)   Whole machine size About  1200x2100x1700mm, L*W*H   Whole machine weight (kg) About 1200   Time of warranty: One year after site acceptance.

  GF-2700XB Dual-channel Linear Oblique Tube Sealing Machine Product Introduction The fully automatic dual-channel linear oblique tube sealing machine is professionally used for automatic tube sleeving and heat sealing of straws and bags. It is suitable for straws of various calibers, lengths and models. It is the preferred automated equipment for packaging bags such as laundry detergent spout oblique bags, beverage & juice oblique spout bags, engine oil & edible oil oblique spout bags, and outdoor foldable water oblique bags. Technical Parameters Overall Dimension Main unit: 4790mm×4800mm×1800mm; Collecting conveyor: 2015mm×510mm×930mm (L × W × H) Sealing Type Stand-up bag, three-side sealed bag, gusset bag, special-shaped bag Material Type Bag: Inner PE, Inner PP materialSpout: PE, PP material Product Specification Oblique sealed bag: Length 150~350 mm, Width 130~250 mm, Sealing length 60~120 mmCenter sealed bag: Length 150~350 mm, Width 130~200 mm, Sealing length 60~120 mmSpout caliber: 8.5 mm (standard), 10 mm, 14 mm, 16 mm, etc. Working Speed 80~90 pcs/min for dual channel; 40~45 pcs/min for single channel Positioning Accuracy ≤±1 mm Sealing Cutter Group Single side: 7 groups in total (4 heat sealing groups, 1 cooling group, 2 preheating groups)Two sides total 14 groups (8 heat sealing groups, 2 cooling groups, 4 preheating groups) Temperature Control Module & Heating Temperature 4 sets (2 sets of 4-channel modules + 2 sets of 8-channel modules), accuracy ±0.1℃; Heating temperature range: 0~300℃ Power Supply 380V/50Hz, rated power approx. 17KW, current approx. 40A Air Source 0.5~0.7MPa, 1200L/min Equipment Weight Approx. 4700 kg Product Features Adopts dual-channel mode, fully automatic operation of bag separating, angle cutting, tube loading and heat sealing procedures; Equipped with PLC control and intelligent parameter setting, parameters can be quickly set according to different bag types and straws, simple operation; Adopts imported temperature control modules and pneumatic components such as SMC, Festo and Airtac with reliable quality; Designed with step-by-step heating and final cooling sealing process to achieve excellent sealing effect; Automatic fault detection, alarm, stop, diagnosis and fault location display; Light weight, small floor space and stable performance; Main components are made of aluminum alloy and stainless steel, complying with food and pharmaceutical GMP environmental hygiene requirements. System Composition The equipment adopts dual-channel design, consisting of bag feeding system, tube feeding system, cutting mechanism, heat sealing system, bag collecting system, control system and machine base; The bag feeding system is composed of bag separating mechanism, positioning mechanism and handling mechanism; the separating mechanism separates finished bags one by one, the handling mechanism transports bags, and the positioning mechanism corrects position; The tube feeding system includes vibration plate, linear vibration feeding and rotary tube loading mechanism; automatic detection and start-stop control during feeding; The heat sealing system includes heat sealing and cooling, with 5 sets of heat sealing knives and 1 set of cooling knives; customized heat sealing and cooling knives of different specifications are available to adapt to straw sealing of various sizes; Each set of sealing knives has independent temperature control, which can set temperature and operate debugging independently; The bag collecting system conveys at constant speed and arranges bags automatically, convenient for product observation and inspection; The operation interface real-time displays working status such as production speed, finished quantity, shift output, date and temperature. Application Fields Laundry Detergent Stand-up Bag Seasoning Stand-up Bag Juice Stand-up Bag Foldable Water Bag

Product introduction The automatic three-station rotary mode spout sealing machine is specially designed for automatic sleeving and heat sealing of straws and bags. It is suitable for straws of various calibers, lengths and models, and is the preferred automated equipment for spouted stand-up pouches in beverage packaging, drinkable jelly, condiments, and daily chemical products (laundry detergent, skin care products, etc.). It can be customized to connect with filling production lines.

  Application used to detect the gloss of plastic film, paper, ink, adhesive, etc. Multi-point measurement and data processing can be performed on the sample, and parameters such as average value, standard deviation and coefficient of variation can be printed directly. The machine has high precision and good stability, and can measure the glossiness of flat products such as paint, paper, plastic, ceramic, stone and metal.   Feature  Full-function intelligent design, light touch key operation.  Automatic measurement and manual measurement function.  For single point or no more than 10 points measurement, calculate the average value, root mean square, coefficient of variation and print out the result.   Standards  Angle International Standard Chines Standard Application 20 ISO-2813 ISO8254 GB9754 GB8807 Coating Plastic 20 TAPPI-T653 ASTM-D1834 GB8941.1 Paper 45 ISO-2767 GB8941.2 Metal compound paper 45 ASTM-C346 ASTM-D2457 GB8807 Ceramics、Plastic 45 JIS-E8741   Coating 60 ISO-2813 ASTM-D2457 GB9754 GB9966 GB8807 Coating Stone Plastic 75 TAPPI-T480 GB9841.3 Paper 85 ISO-2813 GB9754 Coating   Specifications Item Specification Test range 0-199.9 Gloss units Precision ±1.0 Gloss units Stability Not more than 0.5 gloss unit / every 30 minutes Repeatability Not more than 0.5 gloss unit Measuring probe size 180mm×100mm×50mm Power 25w/ 220vAC，50HZ
