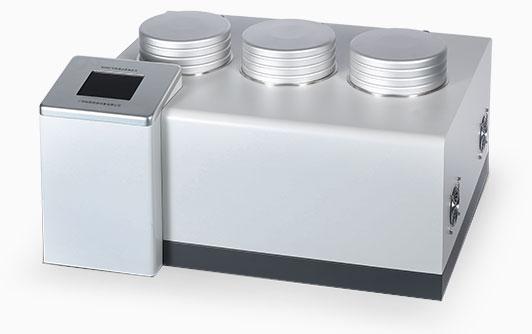

Gas Permeability Analyzer for Testing Packaging Material GTR - N530

GBPI Gas Permeability Tester N530 demonstrate how to test gas volumn pass through your packaging material

  • Brand:

    GBPI
  • Item NO.:

    N530
  • Payment:

    TT, LC
  • Product Origin:

    Guangzhou China
  • Shipping Port:

    Huangpu
  • Lead Time:

    20-30 day
Inquiry now Download
Product Detail


What is Gas Permeability Tester Application

GBPI Gas Permeability Analyzer N530 adopt Pressure differential method,used to test the gas (O2, N2, CO2 etc) transmission rate (GTR) of packaging materials, such as plastic film, composite film, coextrusion film, aluminum-plated film, aluminum foil, infusion bag, sheets, paper, paper board, solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag, pouch, bottle, can, bowl, box, widely used in the industries of food, pharmaceuticals, personal care, household, electronics and so on.


N530 Gas Permeability Analyzer Features

1. Adaptable to environment, not affected by environment temperature.
2. Applicable to high barrier material and low barrier material; can test aluminum foil.
3. Real time curves display of transmission rate, pressure, pressure difference and temperature.
4. Simple software interface, easy to use, auto save data and report, can print curves.
5. Wholly automatic, over pressure protection, multiple safety protection.
6. Standard film calibration and pressure calibration.
7. Excellent hermetic sealing of test chamber, can test ceramics and porcelain.
8. Temperature control: International advanced electromagnetic technology, program controlled, automatic temperature rise and fall, speed adjustable. Precision 0.01℃.
9. Automatically keep pressure difference.
10. N530 Gas Permeability Tester adopt unique chamber and gas flow design, specialized sensor, high precision and stability.

Gas permeability tester

Real-time Curve of N530 Testing Gas Transmission Rate


gas permeability tester


Technical Parameters of N530 Gas Permeation Analyzer



Testing range: 0.02~50000 cm3/(m2•24h•0.1MPa)Max possibility by expanding the volume: 600000 cm3/(m2•24h•0.1MPa)


Test accuracy: 0.001 cm3/(m2•24h•0.1MPa)


Temperature range: 15~60℃


Temperature accuracy: ±0.1℃


Vacuum degree:  <20Pa


Vacuum resolution 0.01Pa


Test pressure -0.1~+0.1MPa


Gas supply pressure 0.2~0.8MPa


Gas port 1/8 inch rubber tube


Test gas O2, Co2, N2, etc


Test area 50.24 cm2


Sample size Φ110 mm


Sample thickness ≤2mm


Instrument size 3 PCS(can be expanded to more)


Instrument size 800 mm×560 mm×400mm


Weight 100kg


Power 1000W


Power supply AC 220V,50Hz
