Water Vapor Permeability Analyzer

/Highly accurate water vapor permeation analyzer using infrared sensor ASTM F1249- W401

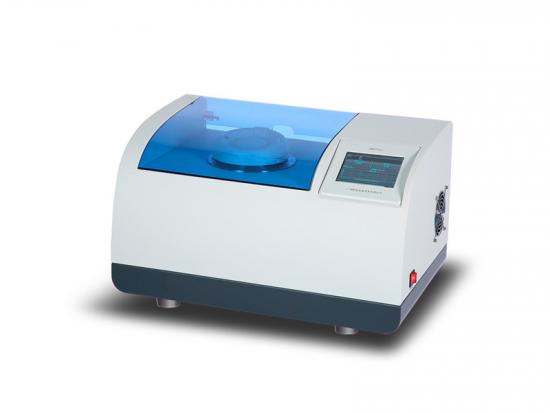

Highly accurate water vapor permeation analyzer using infrared sensor ASTM F1249- W401

Water vapor permeability analyzer using infrared sensor is to test the water vapor transmission rate (WVTR) of films or sheets materials. Ideal for high barrier materials like Aluminium foil.

  • Brand:

    GBPI
  • Item NO.:

    W401
  • Payment:

    T/T, LC
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Huangpu port
  • Lead Time:

    20-30 days
Inquiry now Download
products Details


Application:

1) Plastic film, composite film, aluminum foil, aluminized film,etc;

2) Sheet, panel, rubber, ceramics,etc;

3) Packaging containers, such as:glass, bottle, cans, boxes, etc;

4) Expanding application: solar panel, LCD film, medical patch, etc.

Widely used in quality inspection organizations, drug control institutions, research institutes, packaging, thin film, food companies, pharmaceutical enterprises, personal care industry, electronics industry and so on.


Specifications

Item

Technical Parameters

Test range

0.001~100 g/m2·24h(film and sheet)

Test precision

0.001 g/m2·24h(film and sheet)

Temperature range

15~45℃(15~60℃ optional)

Temperature accuracy

±0.1℃

Humidity range

30~90%RH,100%RH

Humidity accuracy

±1%RH

Test area

50.24 cm2(with additional adapting piece and be small as 0.785 cm2 )

Sample size

Φ100 mm

Sample thickness

≤3mm

Number of test sample

1 piece

Carrier gas

99.999% N2(user provide)

Carrier gas pressure

≥0.1MPa

Carrier gas flow

5~120 mL/min

Gas supply port

1/8 inch metal pipe

Instrument size

600×400×330mm

Weight

80kg

Power

750W

Power supply

AC 220V,50Hz


Standard: GB/T 26253-2010、YBB 00092003-2015、BS EN ISO 15106-2-2005、ASTM F1249-2013、JIS K7129-2008


Features

Accurate and reliable data


  • WithThe State Certificate for Gradation of the certified Reference Materialsand Licence for Manufacturing Measuring Instruments ofthe state Reference Materials(GBW(E)130543/4)of Water Vapor Permeability Analyzer approvedand issuedby General Administration of Quality Supervision, Inspection and Quarantine of the P.R.C. Adopting state reference materials to calibrate and verify the instruments, data reliability up to 100%, with universal temperature and humidity calibration interface and test repeatedly, the dispersion of the same sample test data are less than 5%. Ensure the accuracy, universality and authority of the test data.



Simple operation


  • Professional software with simple interface, easy to use and convenient to set test process.
  • Fully-autooperation,one-button test,judge and stop automatically.
  • Programmed auto-control, the experiment status display in real time.
  • Real time curves display of transmission,water vapor concentration, temperature and humidity.The curves with conceal function, support query function for background data.
  • Configure with color touch screen, can observe temperature, humidity and transmission without external computer.
  • Professional test report; can be exported as PDF.



Advanced technology


  • Temperature control: International advanced electromagnetic technology, program controlled,auto heating and cooling;no need of external accessories. Precision: 0.1℃.
  • Humidity control: Dual gas flow method(dry gas and humid gas), high precision (1%RH) and stable flow.
  • Carrying cutting-edge ARM controlling system,can run independently without computer.



High efficiency


  • With three different test modes of high, medium and lower barriers, can test films with different barrier property.
  • Measurement precise up to0.001 g/m2·24h, can test high barrier materials, such as aluminum foil.
  • By adding adaptive accessory, can test water vapor transmission of various containers such as bag, bottle, can and bowl.



Calibration & Certification


  • The instrument supports two methods of reference materials and standard gas to calibrate and certificate; operation is simple, user only need use certified reference materials for normal testing, and then input the test result into the instrument interface.



Reliable and easy-maintenance instrument


  • Imported infrared sensor, with high precise and good performance, can work for a long time.
  • Sensor over-range auto protection.
  • Function modularization, easy to maintain.



Send A Message

Leave us a message, we will get back to you ASAP.

Related Products
water vapour permeation tester Water Vapor Permeability Analyzer Gravimetric Method - W303

A303 water vapor permeability analyzer comfirms to standard ASTM E96/E96M-2016、ASTM D1653-2013



Water Vapour Permeation Analyzer Water Vapor Permeability Tester electrolytic sensor method -W203
W203 Water Vapor Permeability Tester Wholly automatic, software easy to use. Curves of transmission rate, water vapor density, humidity and temperature, auto record and continuous display.
water vapor permeability test Water Vapor Permeability Analyzer Weight Increase Method W501

water vapor permeability analyzer is to test the water vapor transmission rate (WVTR) of films or sheets materials.




Moisture permeation rate tester Water Vapor Permeability Analyzer For LDPE Film Gravimetric Method - W533

A533 water vapor permeability analyzer is to test the water vapor transmission rate (WVTR) of films or sheets materials.



water vapor transimission rate WVTR MVTR water vapor permeability analyzer electrolytic sensor method for flexible barrier sheet materials test - W201

Water vapor permeability analyzer is used to test water vapor transmission rate (WVTR) of films or sheets materials for flexible packaging.

water vapor transmission rate WVTR MVTR water vapor transimission rate testing instrument for plastic packaging properties test - W405

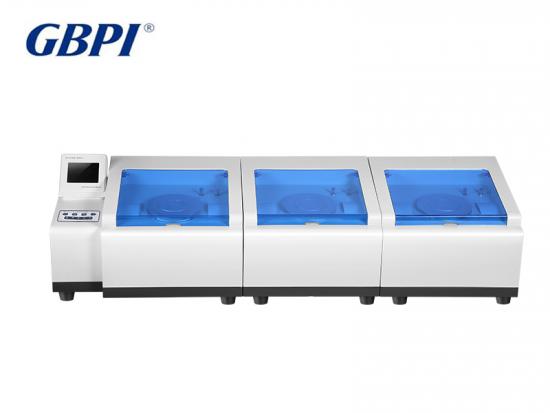

Three test chambers water vapor permeability analyzer using infrared sensor is the highest accurate water vapor transmission rate tester, meeting standard of ASTM F1249.
