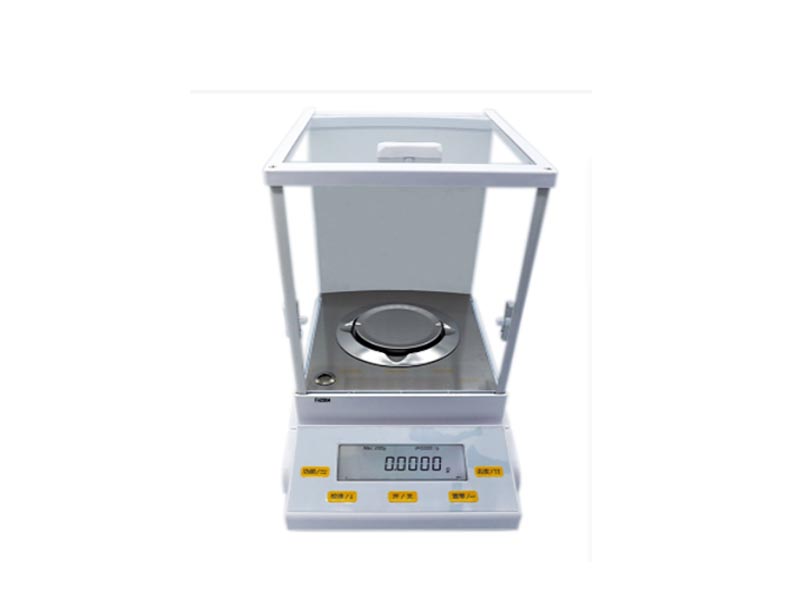

FA1004 Electronic Analytical Balance FA1004 High Precision Electronic Analytical Balance Product Introduction This product is used for precise weighing and analysis in laboratories and assay rooms of industrial and mining enterprises, scientific research institutions and universities. Get Quotation Technical Specifications Actual Division Value 0.0001g Maximum Weighing Range 100g Repeatability Standard Deviation ±0.0001g Linearity ≤ ±0.0002g Calibration Weight Value 100g Type External Automatic Calibration Balance Overall Dimension 365×223×338mm Packing Size 500×310×450mm Pan Size Φ90mm Effective Volume of Windshield 150×165×200mm Net Weight 5.5KG Gross Weight 7.5KG Product Features Oversized backlit LCD screen and high-sensitivity touch keys for simple operation. Built-in under-pan weighing hook and overload protection weighing pan. Airflow windshield installed under the weighing pan for higher tightness and more reliable test data. Display protective cover: provides extra dust-proof and scratch-resistant protection to extend balance service life. Equipped with glass door transport lock, four-sided fully transparent glass windshield and aluminum alloy back plate. Omni-directional sensor protection function to protect the sensor from external force damage in six directions to the maximum extent. All-aluminum balance base to resist low-frequency vibration and stabilize the machine body. Overload protection for weighing pan (adopts pan locking structure to prevent weighing overload and protect sensor).

Introduction Factory use vacuum freeze dryer is suitable for drying product such as food, drug products, biological products, Chinese medicine and more. It is to dry product at low temperature to preserve, stabilize, store and increase the life of products.. Freeze vacuum drying is a new type of box structure introduced by the vacuum freeze dryer that combines the refrigeration system, vacuum system, heat transfer oil heating system, and moisture removal system. It uses the space for storing materials in the box to dry. Main Technical Parameters   Item GB-LGJ-200F Drying chamber Freeze-drying area 2.25m2 Layers of shelf 5+1 Temperature scope of shelf -50℃-+70℃ (no-load) Shelf temperature error ±1℃ (in balance) Shelf spacing 70mm Size of shelf 500mm*900mm Condenser Min. Temperature of condenser ≤-70℃ (no-load) Water-capture capability ＞30Kg Liquid material 22L（thickness 10mm） Defrosting Electric defrosting Final Vacuum degree ≤ 5Pa Style of cooling Fan cooling Main functions Manual + Auto Control Mode, Sensor calibration, Intelligent temperature control, Freeze drying termination reminding and other functions are available.               Technical parameters □ Main configuration   Shelf effective area 2.25 m2 □ Specification   Shelf size 500mm × 900mm   Shelf numbers 5＋1（Radiation layer） Top shelf as temperature compensating plate   Material number plate 10 pcs   Shelf spacing 70 mm   Shelf temperature range -50℃～+70℃ （no-load）   Min. condenser temp. ≤ -70℃  （no-load）   System final vacuum degree ≤ 5Pa □ Basic configuration    Installation Power 13.5KW     ★ This is installed power, not operating power. □ Shape and other parts   Dimension（mm）： About 1200x2100x1700mm, L*W*H   Weight（Kg）：  About 1200   Noise ≤ 80dB   Electrical system Ground protection   Design, production, installation standards According to GMP, GB/T522 6.1-1996   Whole machine test Test, verify data, methods, and equipment support □ Drying chamber components   Shape Rectangular   Roughness of inner wall Ra ≤ 0.6μm   Opening direction Clockwise or anticlockwise (overlooking ,user confirm)   Chamber material AISI 304  stainless steel ◆  Door  material ACRYLIC   Working temperature ≥ 70℃   Thermal insulation material Polyurethane foam □ Shelf components ◆ Shelf material AISI 304  Top and bottom plate thickness 5mm ◆ Shelf structure AISI 304 stainless steel （Patent No. :ZL201020237059.X）   Roughness of shelf Ra ≤ 0.6 μm   Flatness ≤ ±0.5mm / m   Effective shelf size 500mm×900 mm   Amount of shelf 5＋1     Effective area of shelf 2.25m2 ◆ Shelf spacing  70 mm   Temperature decreasing rate +20℃ down to -40℃/ within 60 min, (no-load, entrance of silicon oil )   Temperature elevating rate -40℃ up to +20℃/ within 60 min, (no-load, entrance of silicon oil ) ◆ Shelf lowest temperature ≤ -50℃      (no-load, entrance of silicon oil )   Shelf highest temperature ≥ +70℃    (no-load, entrance of silicon oil )   Shelf temperature error ≤ ±1℃ ≤ ±1℃ ( in balance ) □ Condenser components   Condenser Shape Vertical type, cylindrical Compact structure, better water capture ,easy to clean and defrosting ◆ Condenser material AISI 304   Condenser water capture ≥ 30Kg   Condenser temp. Decreasing +20℃--40℃, within 30 minutes ◆   Condenser Min. temp. ≤ -70℃   Defrosting Electrochemical cream ◆ Thermal insulation material Polyurethane foam □ Refrigeration system   Refrigerator France original imported TECUMSEH full closure compressor ◆ Refrigerant Environmentally friendly refrigerant   Refrigerator number 2 sets   Shelf refrigeration 1 sets (shelf refrigeration at same time, indirect refrigeration)   Condenser refrigeration 1 set (shelf refrigeration at same time, direct refrigeration) ★ World famous devices are used to make sure correct, stable, safe and reliable.   High pressure protection device When system’s air discharge pressure exceeds allowed pressure, machine automatically stops working, to avoid an accident.   expansion valve DANFOSS（Denmark)   Top cover valve Castel（Italy）   solenoid valve DANFOSS（Denmark）   Oil separator ZOER   High pressure controller DANFOSS（Denmark）   Disacidify filter DANFOSS（Denmark）   Pressure meter LR/REFCO LR/REFCO(Germany/Swiss) oil submerge  pressure meter   Water cooling condenser Well-known brand □ Vacuum system ◆ Double stage rotary vane pump Tan's Vacuum Pump   Quantity 1 set ◆ Vacuum gauge Reborn   Chamber pumping rate Atmosphere→10 Pa ≤30 minutes(in dry condition)   System Maximum vacuum ≤ 5Pa   System leaking rate ≤ 10 Pa·l / sec □ Liquid circulation system ◆   Liquid low viscosity silicon oil ( 25℃, 5cst ) National qualified product   Liquid tubing material AISI 304, welding, heat  keeping ◆ Circulation pump ★GRUNDFOS, original imports, web rotor canned pump From Denmark brand, world famous brand   Circulation pump quantity 1 set   Heating rate 4kW   Heating control style Solid-state relay ◆ Stainless steel plate heat exchanger Well-known brands   Temperature sensor PT-100 platinum resistance □  Control system ◆ Control style Automatic and manual control ◆ Control system FD-PILOT   Control board SH-HPSC-II   Touch screen MCGS   Intermediate relay CHINT   AC contactor CHINT   Air circuit-breaker CHINT   Wiring terminals: Well-known brands □ Safety protection   Whole machine protection All safety conditions are ready for whole machine, machine can start running.   Operation protection Electrical system have logic interlock, control and protection function   Vacuum pressure Available   Heating system Available   Power cut and supply With safety protection measure   Products protection during sublimation process Heat cutting if vacuum lack   Condenser protection when vacuum pump start Interlock □ Whole machine design   Power 3Ph+N+PE, 380V   Installed power 13.5 KW (this is installed power, not running power)   Whole machine structure Integrated structure (easy for transport and placement)   Whole machine size About  1200x2100x1700mm, L*W*H   Whole machine weight (kg) About 1200   Time of warranty: One year after site acceptance.

GBD-L Falling Dart Impact Tester test the impact resistance of various films, metallic foil and so on, widely used in industries of packaging, plastic films, laboratory, research institute, inspection agency and so on.

  GF-2200Z Two-Station Rotary Tube Sealing Machine Product Introduction The fully automatic two-station rotary tube sealing machine is specially designed for automatic tube sleeving and heat sealing of straws and bags. It is applicable to straws of various calibers, lengths and models. It is the preferred automatic equipment for spout stand-up bags such as beverage packaging, suckable jelly, condiments and daily chemical products (laundry detergent, skin care products). It can be customized to connect with filling production lines for integrated operation. Technical Parameters Overall Dimension 2900mm x 2400mm x 2000mm (L × W × H) Sealing Type Stand-up bag, three-side sealed bag, gusset bag, special-shaped bag (customized) Material Type Bag: Inner PE, Inner PP materialTube: PE, PP material Product Specification Bag Length: 100~180mm, Width: 70~120mm, Sealing Length: 60~120mmStraw Caliber: 8.5mm (other sizes customizable) Working Speed 80-90 pcs/min (varies with different materials and bag sizes) Positioning Accuracy ≤±0.5 mm Sealing Cutter Group 6 groups in total: 1 preheating group, 4 heat sealing groups, 1 cooling group Temperature Control Module 2 sets (12-channel module), accuracy ±0.1℃ Heating Temperature Room Temperature ~ 300℃ Power Supply 380V/50Hz, 13KW Air Source 0.6~0.8MPa, 11L/min Equipment Weight 2000Kg Product Features The tube sealing machine adopts two-station design, with fully automatic operation of preheating, bag separating, tube loading and heat sealing processes; Sealed products are automatically sent to the transition machine, convenient for connecting and docking with subsequent production equipment; Adopts PLC control and intelligent parameter setting; parameters can be quickly configured according to different bag types and straws, easy operation; Equipped with imported temperature control modules and pneumatic components such as SMC, Festo and Airtac with stable and reliable quality; Adopts step-by-step heating and final cooling sealing process design to achieve perfect sealing performance; Automatic fault detection, alarm, shutdown, diagnosis and real-time fault location display; Light overall weight, small floor occupation and stable long-term operation performance; Main components are made of aluminum alloy and stainless steel, complying with food and pharmaceutical GMP environmental hygiene standards. System Composition The machine adopts dual-station structure, consisting of bag feeding system, tube feeding system, heat sealing system, bag dropping system, rejecting mechanism, transition machine, control system and machine base; The bag feeding system includes bag placing & positioning mechanism, bag picking mechanism and bag sleeving mechanism; the bag picking mechanism takes out finished bags one by one, and the bag sleeving mechanism loads bags into the bag holder and sleeves onto the straw; The tube feeding system is composed of vibration plate and transition trough mechanism; automatic detection and start-stop control during feeding process; The heat sealing system includes preheating, heat sealing and cooling, including 1 set of preheating cutter, 4 sets of heat sealing cutters and 1 set of cooling cutter; customized sealing and cooling cutters are available to adapt to straws of different specifications; Each group of sealing cutters supports independent temperature control, separate temperature setting and independent operation debugging; The bag collecting system consists of discharging mechanism and trough changing mechanism; sealed bags are discharged to the middle position, then pushed into the material trough; empty trough replacement is automatic when full; The operation interface real-time displays working status, including production speed, finished product quantity, shift output, date and temperature parameters. Application Fields Jelly Spout Bag Soymilk Spout Bag Care Products Bag Puree Bag Special-shaped Spout Bag Foldable Outdoor Water Bag

  GBB-A3 Heat Sealing Tester Product Introduction GBB-A3 heat sealing tester accurately measures heat sealing temperature, time, pressure and other performance parameters of lid films for jelly cups, yogurt cups, coffee capsules, instant noodle buckets, meal boxes, medical blister packs and other food & pharmaceutical packages. Optimal sealing conditions can be confirmed precisely by testing sealing properties of different materials. Testing Principle Install matched fixture on the lower support plate and place sample steadily. Set sealing temperature, time and pressure as required, then start the device. The upper fixture descends to complete sealing. In manual mode, step on foot switch to press sealing cutter with fixed sealing duration. In automatic mode, upper and lower cutters perform cyclic sealing automatically according to preset parameters. Compliance Standards QB/T 2358-1998, ASTM F 2029, YBB00122003-2015 Technical Parameters Temperature Range Room temperature ~ 250℃ Temperature Accuracy ±1℃ Sealing Time 0.1s ~ 99.99h Sealing Pressure 0~1 MPa Operation Mode Manual & Automatic Air Source Compressed air Overall Dimension 730×400×535 mm Weight 45 kg Power 1200 W Power Supply AC 220V, 50Hz Product Features Pull-out Loading Design Double-layer lower plate enables pull-out feeding, keeping away from sealing cutter for safe and convenient operation. High-precision Temperature Sensor PID temperature control ensures accuracy up to ±1℃, featuring excellent stability and low failure rate. Dual Optional Test Modes Automatic mode realizes repetitive fast sealing; manual mode equipped with foot switch for simple and safe operation. New Pneumatic Driving System Composed of pressure gauge, regulating valve and cylinder, air pressure can be precisely adjusted for efficient sealing. Customized Service Available Custom fixtures fit various cup sizes. Anti-stick sealing cutter and customizable shape, size & smoothness meet diverse research demands. Application Fields Jelly Cup Yogurt Cup Coffee Capsule Medical Blister Pack

Product Introduction This portable diesel silent generator is designed for outdoor industrial emergency power supply. Adopting air - cooled four - stroke technology, it features stable performance, durability, strong power, high efficiency, intelligent protection, and low noise reduction, making it an ideal choice for various power - demanding scenarios. Product Parameters Name Details Model of Power 220 Rated Power 6.0kw (220V); 8.75kw (380V) Voltage 220V; 380V Fuel Tank Capacity 12.5L (220V); 15L (380V) Engine Oil Capacity 1.65L Weight 158kg Displacement 499cc Size 910530740mm Working Ambient Temperature ≤40°C Voltage Distortion Rate ≤10% DC Voltage 12V DC Current 8.3A Starting Method Electric start   Product Applications Industrial Power Generation Suitable for power supply in industrial factories, providing stable electricity to support production lines and various industrial equipment operations. Power for Aquaculture Can be used in aquaculture farms, ensuring continuous power for environmental control systems, feeding equipment, etc., to maintain the normal growth environment of aquatic products. Outdoor Construction Ideal for outdoor construction sites, supplying power for construction machinery, lighting, and other equipment, ensuring the smooth progress of construction projects.

  Product Introduction     The GB-ML Leakage Tester is a professional testing instrument powered by compressed air, which controls the lifting and lowering of the sealing barrel lid through an air cylinder.   Adopting a high-precision electronic pressure sensor and a microcomputer control system, it effectively compares and evaluates the sealing process and sealing performance of flexible packages, and provides a scientific basis for determining relevant technical requirements.   This equipment is suitable for sealing performance testing of flexible packages in food, pharmaceutical, daily chemical and other industries.   Testing Principle   The sample is immersed in water, and a vacuum is applied to the vacuum chamber to create a pressure difference between the inside and outside of the sample.   The sealing performance is judged by observing gas escaping from the sample or water penetrating into the sample.     Applicable Standards   GB/T 15171, ASTM D3078-2002 (2013), USP 1207.2 Item Technical Parameters Vacuum Degree 0～-90 kPa Vacuum Accuracy ±1% of indicated value Vacuum Holding Time 0.01 s～99.99 h Sealing Barrel Size Standard: Φ600×591 mm; other sizes optional or customizable Effective Vacuum Chamber Size Standard: Φ550×396 mm; other sizes customizable Air Inlet Pressure 0.6～0.8 MPa Power 50 W Instrument Dimensions 1005×802×1307 mm Power Supply 220 V, 50 Hz   Product Features   High-quality components, stable and reliable   Built-in high-precision pressure sensor with high sensitivity, enabling real-time monitoring of inlet pressure.   Full-automatic operation system   Vacuum degree and holding time can be set as required. The instrument automatically completes vacuuming, holding, stopping and air-releasing.   Brand-new pneumatic system with fast inflation and return, achieving balanced pressure inside and outside.   Key-controlled cylinder for automatic opening and closing of the sealing barrel lid, labor-saving and convenient.   Supports multiple test methods   Supports bubble method and dye penetration method for leakage / integrity testing.     Application Areas   Plastic Packaging   Leakage testing for plastic bags, plastic containers (bottles, cans, boxes), etc.   Glass Packaging   Leakage testing for food bottles, pharmaceutical glass containers, daily chemical glass bottles, etc.   Metal Packaging   Leakage testing for cans, easy-open cans, aerosol cans, metal hoses, etc.   Other Applications

Introduction This product is designed and manufactured based on the coulometric sensor method and conforms to GB/T 19789、ASTM D3985.This instrument can be used to measure the oxygen transmission rate of barrier materials with high and medium barrier properties with high accuracy and high efficiency.Y310Lis applicable to the determination of oxygen permeability of plastic films, sheeting, paper, and other packaging materials used in food, pharmaceutical, medical apparatus, consumer products, photovoltaic and electronic industries, etc.

GM-F1 Inclined Coefficient of Friction Tester is expert applicable to the resolve of stationary coefficients of paper board, friction of paper, sheets, plastic films, convey belts and additional substances. By challenging the frictional possessions of substances, the open presentation of packages, packing rapidity of packers and additional indexes could be regulated to meet necessities for production.Different functions from other coefficient friction testers  (cof)

GBK-1 Heat Shrinkage Tester is for testing the heating shrinkage of packaging films submerged in liquid in different temperatures.

GBPI Electronic Leakage Tester Application: To test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in industries of food, beverage, pharmaceuticals, personal care and so on.

OTH-150DJ is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. It is suitable for quality testing of products such as electronics, electrical appliances, mobile phones, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical care, and aerospace.
