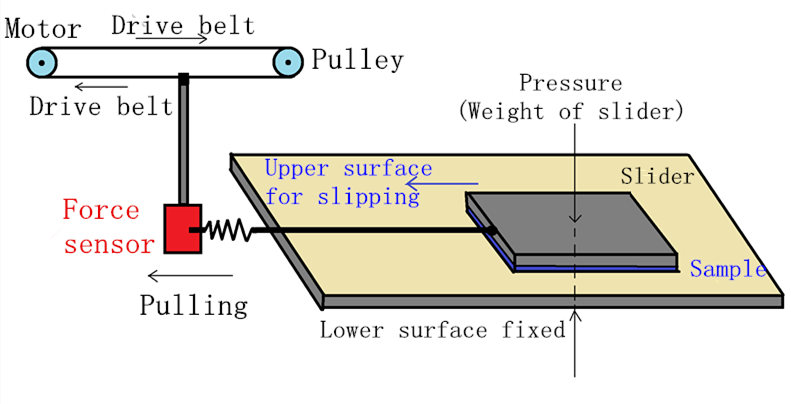

Test Principle
Use a clamp to clamp the strip test sample, and wrap the slider with the sample to be tested, and then place the slider on the hanging hole of the sensor. Under a certain contact pressure, the conveyor belt is driven by the motor to move the force sensor. , that is, to move the two test surfaces relative to each other. The force signal measured by the force sensor is amplified by the integrator and sent to the recorder, and the kinetic friction coefficient and the static friction coefficient are recorded respectively.
Standard
ISO 8295, ASTM D1894, TAPPI T816, GB 10006
Specification
| Item | Technical Parameters |
|---|---|
| Friction Coefficient Testing Range | 0.001 - 0.999 |
| Force Measurement Range | 0 - 9.8N |
| Measurement Precision | ±0.5％FS |
| Slider Size | 63.5 mm×63.5 mm |
| Slider Mass | 200±2g |
| Sliding Plane | Stainless steel, 300 mm (Length) * 150 mm (Width) * 1mm (Thickness) |
| Workbench Surface Size | 200 mm×470 mm |
| LCD Display | Test speed, dynamic friction coefficient and static friction coefficient |
| Stroke | 0 - 150 mm |
| Slider Movement Speed | 0 - 500 mm/min (Stepless speed regulation available) |
| Temperature Control | Room temperature - 100℃ (Optional) |
| Sample Thickness | ≤2 mm |
| Power Supply | AC 220 V, 50 Hz |
| Overall Dimensions | 470 mm×300 mm×300 mm |
| Weight | 13.6 kg |
Feature
Instrument is stable, reliable and easy to maintain
Intelligent operating system
Laboratory intelligent Iot platform
Application
|
|
Film |
Suitable for static friction coefficient and dynamic friction coefficient test of plastic film and thin film |
|
|
Paper |
Suitable for dynamic and static friction coefficient test of paper and cardboard
|
|
|
Textiles, non-woven fabrics, woven bags
|
Suitable for testing static friction coefficient and dynamic friction coefficient of textile, non-woven fabric and woven bag |
|
|
Aluminum foil, aluminum foil composite film, metal products
|
Suitable for testing static friction coefficient and dynamic friction coefficient of aluminum foil, aluminum foil composite film and metal products |
|
|
Printing product |
It is suitable for static friction coefficient and dynamic friction coefficient test of printed matter
|
