Product Profile • The W416 2.0 Infrared Method Water Vapor Transmission Rate Tester is a high-end precision testing instrument for packaging materials, newly developed and upgraded by Guangzhou Standard International R&D Team in full compliance with the requirements of **GB/T 26253** and **ASTM F1249** standards as well as market demands. • Based on the testing principle of infrared moisture analysis sensors, it provides wide-range, high-efficiency water vapor transmission rate (WVTR) testing for high, medium and low barrier materials. • It is suitable for testing the water vapor transmission performance of films, sheets, papers, packages and other related materials in industries such as food, pharmaceuticals, medical devices, daily chemicals, photovoltaic electronics, etc. • It is an ideal offline or online configuration instrument for manufacturers in the packaging industry to test the barrier performance of packaging materials. Testing Principle The W416 2.0 Water Vapor Transmission Rate Tester adopts the infrared method principle: 1. Fix the pre-treated sample in the middle of the test chamber, dividing the chamber into a high-humidity chamber and a low-humidity chamber. 2. Compressed air flows through the high-humidity chamber, while dry nitrogen (carrier gas) flows through the low-humidity chamber at a constant flow rate. 3. Due to the humidity gradient, water vapor penetrates from the high-humidity chamber to the low-humidity chamber. 4. The water vapor passing through the sample is carried to the infrared sensor by the flowing dry nitrogen. 5. Parameters such as the sample’s water vapor transmission rate are derived from the electrical signal output by the sensor. Working Principle Diagram of Infrared Method Standards • ISO 15106-2 • ISO 21760-1 • ASTM F1249 • GB/T 26253 • JIS K7129-2 • Chinese Pharmacopoeia 2025 Edition <4010 Determination of Water Vapor Transmission Rate of Pharmaceutical Packaging Materials> • YBB 00092003 Technical Parameters Item Technical Parameter Test Range 0.002 ~ 100 g/(m²·24h) Repeatability The greater value between 0.005 or 2% Resolution 0.0001 g/(m²·24h) Temperature Control Range 15 ~ 45℃ Temperature Control Precision ±0.1℃ Humidity Control Range (5 ~ 90)%RH, 100%RH Humidity Control Precision ±1%RH Test Area 50.24 cm² Sample Size Φ100 mm Sample Thickness ≤ 3 mm Sample Quantity 6 pieces Carrier Gas 99.999% Nitrogen (provided by the user) Carrier Gas Pressure ≥ 0.1 MPa Carrier Gas Flow Rate 5 ~ 100 mL/min Pneumatic Pressure ≥ 0.3 MPa Dimension 1140mm × 600mm × 440mm Weight 55 kg Power 750 W Power Supply AC 220 V, 50 Hz Product Features • Patented Sensor Technology for Efficient and Accurate Testing - The high-precision infrared moisture sensor is jointly developed with top foreign technical teams, featuring ultra-high stability, ultra-low failure rate, high sensitivity, and a resolution of up to 0.0001 g/(m²·24h). - Equipped with a brand-new pneumatic air circuit control system, the automatic fixture locks the sample with one key, ensuring convenient operation and excellent sealing performance. • Full-Automatic Precision Temperature and Humidity Control - Temperature Control: The semiconductor cooling chip realizes bidirectional automatic temperature control with a precision of ±0.1℃. - Humidity Control: Adopts dual-airflow (dry and humid air) humidity control method for stable and high-precision humidity regulation, with an accuracy of ±1%RH. • Wide-Range Testing with High Applicability - The instrument is equipped with 6 independent test chambers, meeting high-throughput testing requirements with high efficiency. - Boasts a wide test range with a lower limit of 0.002 g/(m²·24h), suitable for testing various high, medium and low barrier materials. With customized accessories, it can also test the water vapor transmission rate of containers such as bottles, bags and bowls. • User-Friendly Operation with Real-Time Visual Curves - Supports fully automatic operation, including one-key testing, automatic judgment and automatic shutdown. - Real-time displays five sets of curves: transmission rate vs. time, temperature vs. time, humidity vs. time, flow rate vs. time and voltage vs. time, with preview and hide functions available for the curves. • Intelligent Operating System with Global Certification - Self-developed intelligent operating system with modular graphics, allowing flexible setting of test procedures and parameters for intuitive and convenient operation. - Designed in accordance with the *Annex to GMP <Computerized Systems>*, it has an audit trail function and multi-level user permission settings, meeting the data traceability requirements of the pharmaceutical industry. - Supports customized test report settings, multiple data output formats, electronic signatures and online submission of audit reports. • Professional Calibration Service for Accurate and Reliable Data - Our company holds the National Standard Substance Grading Certificate for water vapor transmission rate, approved and issued by the General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, with standard substance numbers (GBW(E)130543 / GBW(E)130544). - The instrument is calibrated and verified using self-developed national standard substances to ensure the accuracy, universality and authority of test data. • Intelligent Laboratory IoT Platform - The instrument can be connected to the IoT platform to realize network digital management. - Remote authorized login to the IoT platform enables functions such as managing test data and remote fault diagnosis. - Customers can download required instrument data, documents and operation videos on the platform independently.

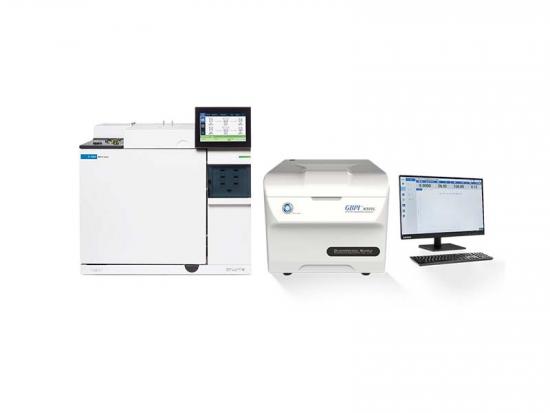

Introduction The N560 2.0 Gas Transmission Rate Tester is a high-precision laboratory testing equipment integrating machinery, electronics and software. It is suitable for the gas barrier property test of plastic films, composite films, sheets, metal foils and other sheet materials, as well as the gas transmission rate test of packaging containers such as bottles, bags, cans and boxes made of plastics, rubber, paper and other multi-type materials.

Introduction The N530A 2.0 Gas Permeability Tester is designed and manufactured based on the differential pressure testing principle, in accordance with standards such as GB/T 1038 and ISO 2556. It adopts a high-precision pressure sensor and automatic pressure difference maintenance technology, ensuring high testing accuracy. It is suitable for testing the gas permeability of films, sheets, paper, packaging materials and related products in fields including food, pharmaceuticals, medical devices, daily chemicals, and photovoltaic electronics. It provides wide-range and high-efficiency gas permeability detection for high, medium, and low gas barrier materials.

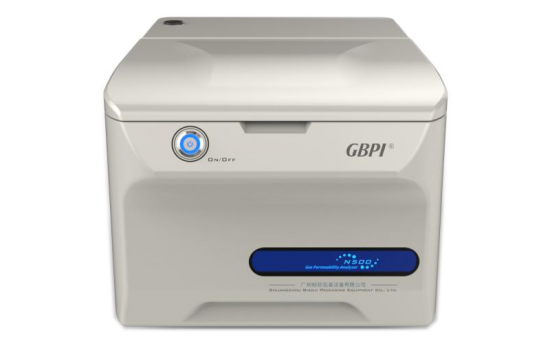

Product Introduction The N500A 2.0 Gas Permeability Tester is a high - precision experimental testing equipment that integrates machinery, electronics, and software. It is suitable for testing the gas barrier properties of plastic films, composite films, sheets, metal foils, etc., as well as the gas permeability testing of packaging containers such as plastic, rubber, paper - based bottles, bags, cans, and boxes.

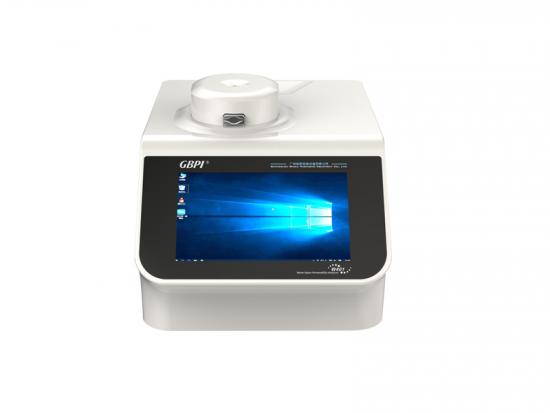

Introduction This product is designed and manufactured based on the coulometric sensor method and conforms to GB/T 19789、ASTM D3985.This instrument can be used to measure the oxygen transmission rate of barrier materials with high and medium barrier properties with high accuracy and high efficiency.Y310Lis applicable to the determination of oxygen permeability of plastic films, sheeting, paper, and other packaging materials used in food, pharmaceutical, medical apparatus, consumer products, photovoltaic and electronic industries, etc.

Product Introduction This product is based on the test principle of the differential pressure method, and is designed and manufactured with reference to ASTM D1434, ISO 2556 and other standards. With high-precision pressure sensor and automatic differential pressure maintaining technology, this machine has high test accuracy. It is suitable for the gas permeability test of films, sheets, paper, packaging and related materials in food, medicine, medical equipment, daily chemicals, photovoltaic electronics and other industries. It can be used to test high, medium and low gas barrier materials with outstanding efficiency.

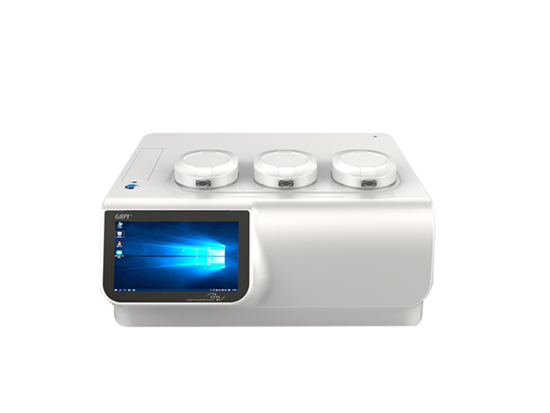

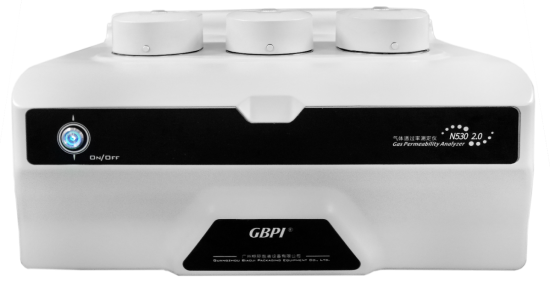

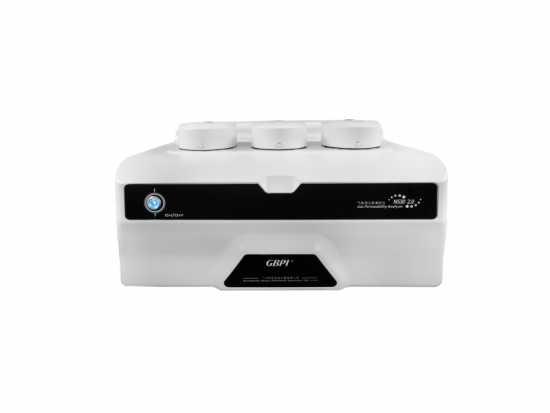

Introduction N530 2.0 is based on the test principle of differential pressure method, It's designed with reference to GB/T 1038, ISO 2556 and other standards. Adopt high-precision pressure sensor and automatic pressure difference keeping technology, high test accuracy. It is suitable for the gas permeability test of films, sheets, papers, packages and related materials in the fields of food, medicine, medical equipment, daily chemicals, photovoltaic electronics, etc. It provides a wide range and high-efficiency gas transmission rate test of high, medium and low gas barrier materials.

This product is based on the testing principle of the coulometric sensor method testing Oxygen, and is designed and manufactured with reference to ASTM D3985 and other standards. Adopting high-precision imported oxygen sensor, high test accuracy,it is suitable for oxygen transmission performance testing of films, sheets, paper, packaging and related materials in the fields of food, medicine, medical equipment, daily chemicals, photovoltaic electronics, etc., and provides a wide range and high-efficiency oxygen transmission rate detection for high, medium and low oxygen barrier materials.

This product is based on the testing principle of coulometric oxygen sensor, designed and manufactured with reference to ASTM D3985 and other standards. It adopts high-precision imported oxygen sensor with high testing accuracy. It is suitable for oxygen transmission performance testing of films, sheets, papers, packaging and related materials in the fields of food, pharmaceuticals, medical devices, daily chemicals, photovoltaic electronics, etc. It provides wide range and high efficiency oxygen transmission rate testing for high, medium and low oxygen barrier materials.

This product is based on the test principle of the Coulomb oxygen analysis sensor and is designed and manufactured with reference to the ASTM D 3985 standard. It is used to determine the oxygen transmission rate (quantity) of film or sheet materials.

Introduction Based on the test principle of the differential pressure method, N530L is designed with reference to the GB/T 1038 standard and used to test the gas transmission rate (quantity) of film or sheet materials.

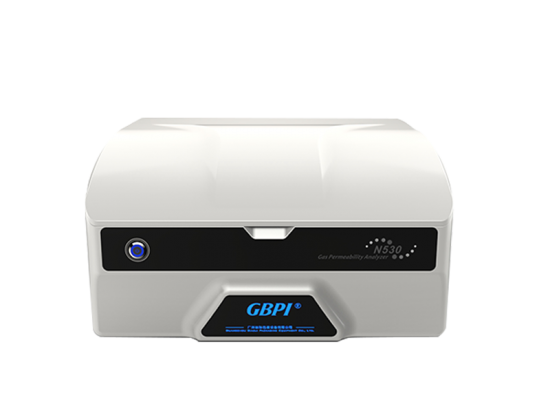

Introduction Based on the test principle of the differential pressure method, N530 is designed with reference to the GB/T 1038 standard and used to test the gas transmission rate (quantity) of film or sheet materials.
